UniSite Xpi Programmer and modules

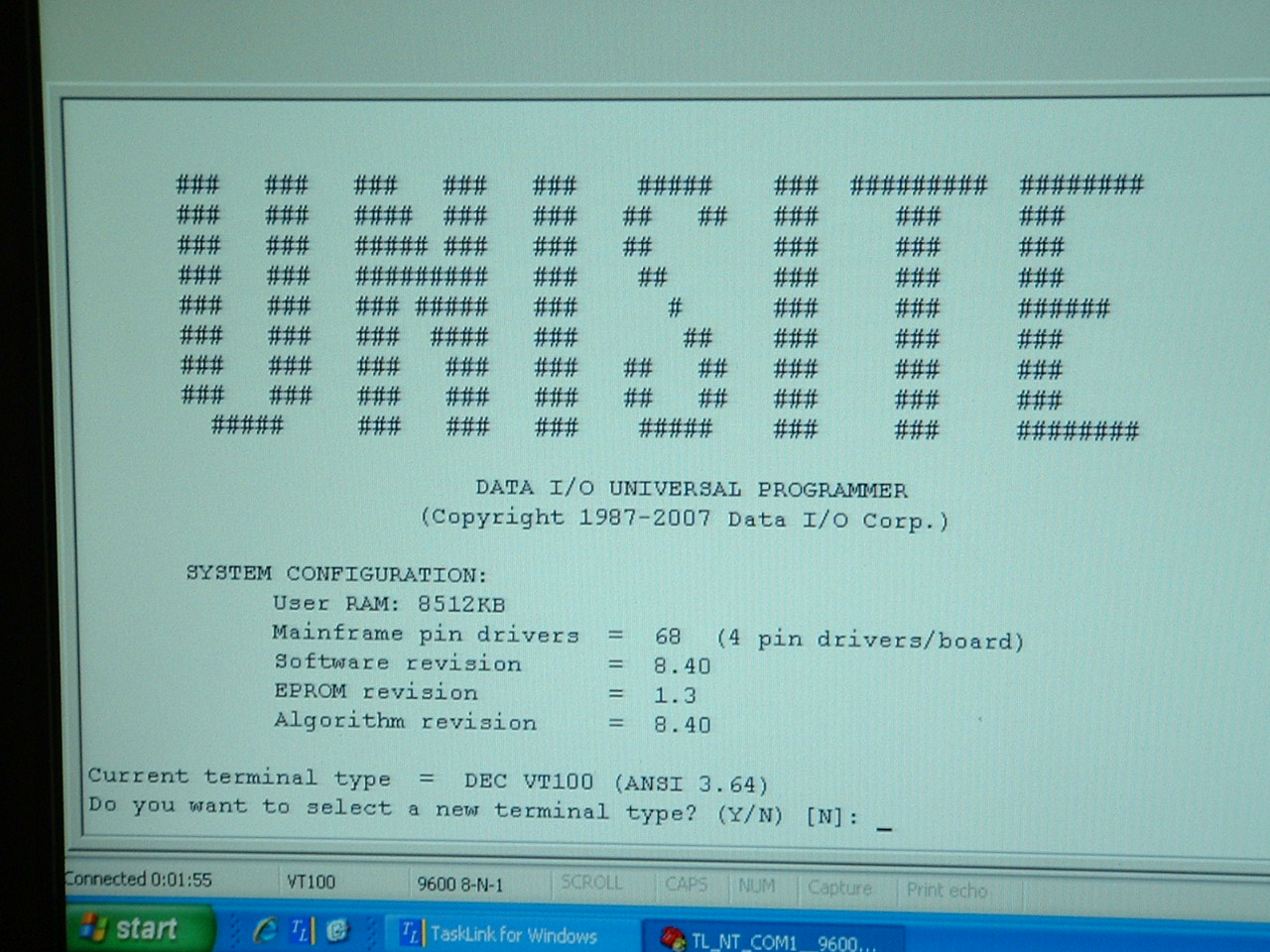

UniSite terminal showing version 8.4, 8 megs of ram and 68 pin drivers

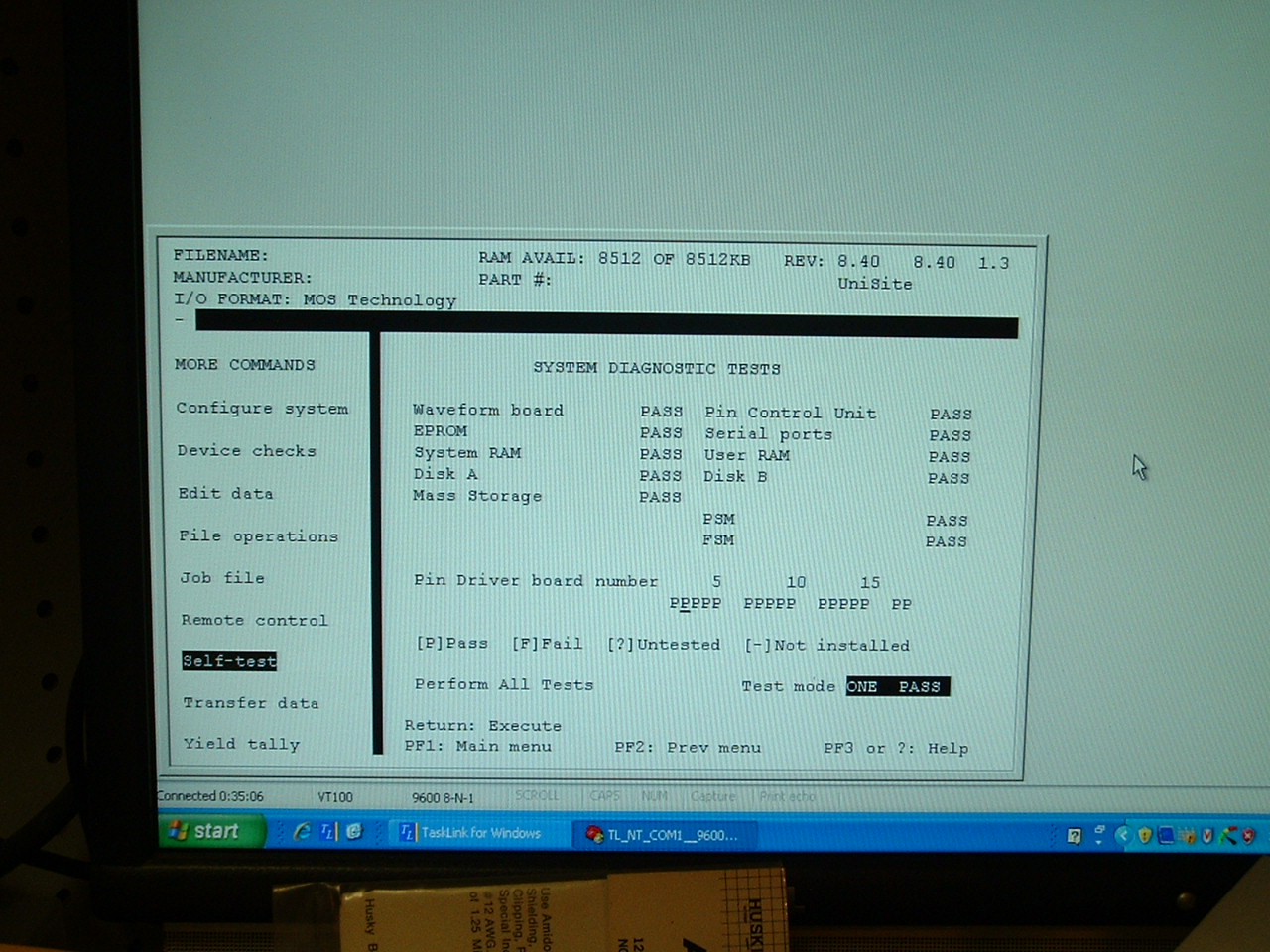

UniSite system disagnostic test showing all systems have passed including the MSM.

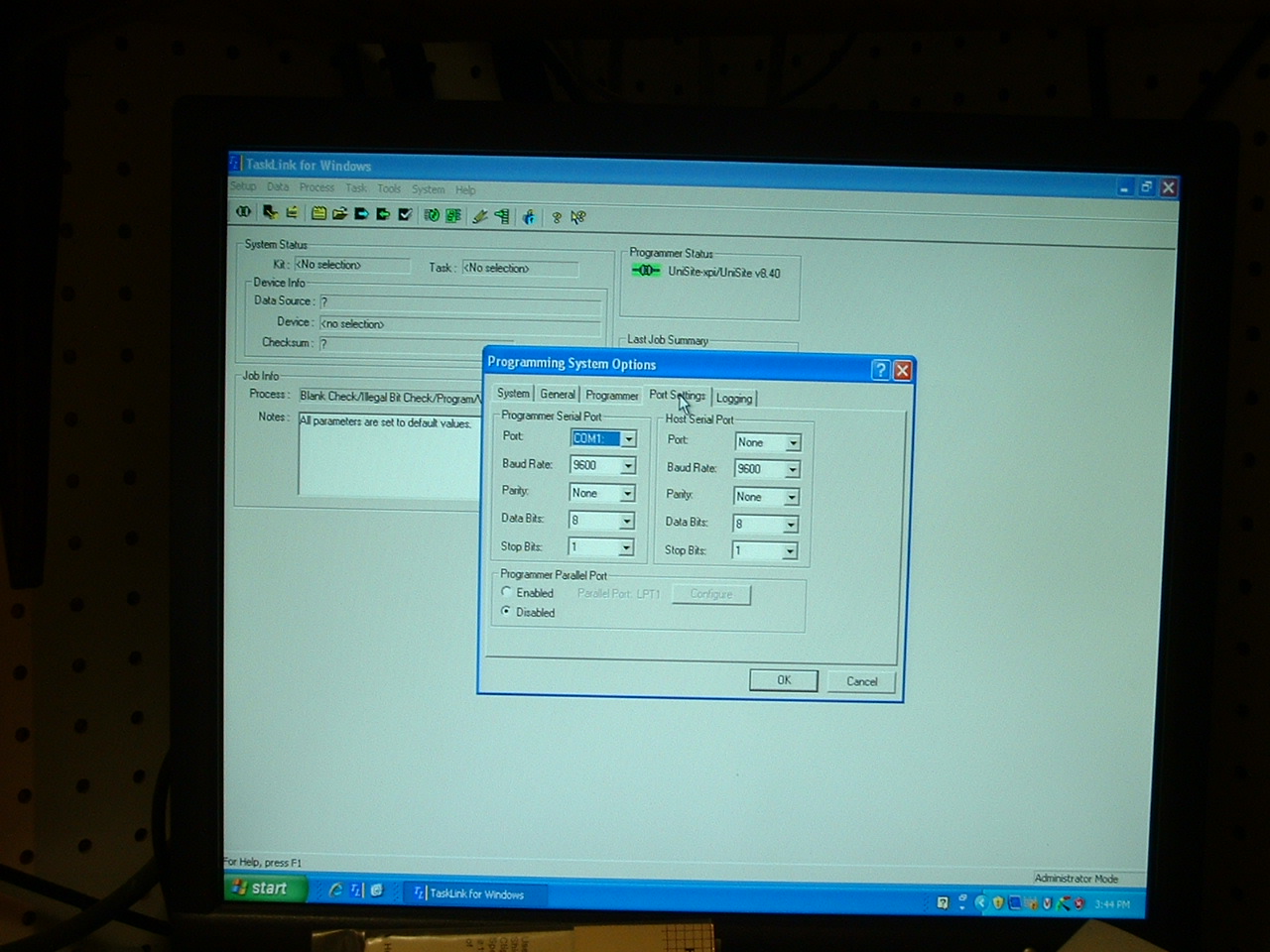

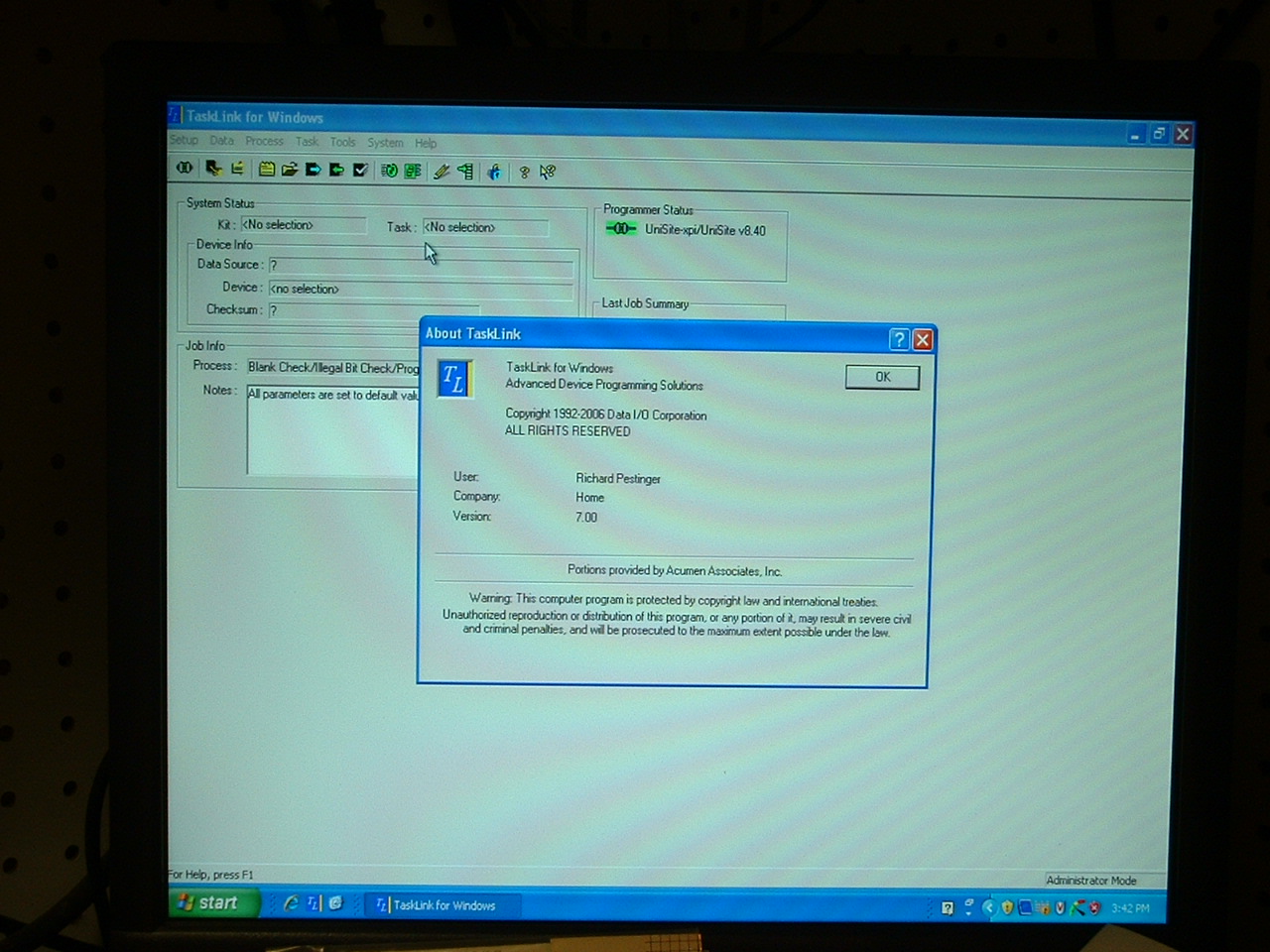

TaskLink for Windows version 7.00

The communication setup using the remote connector.

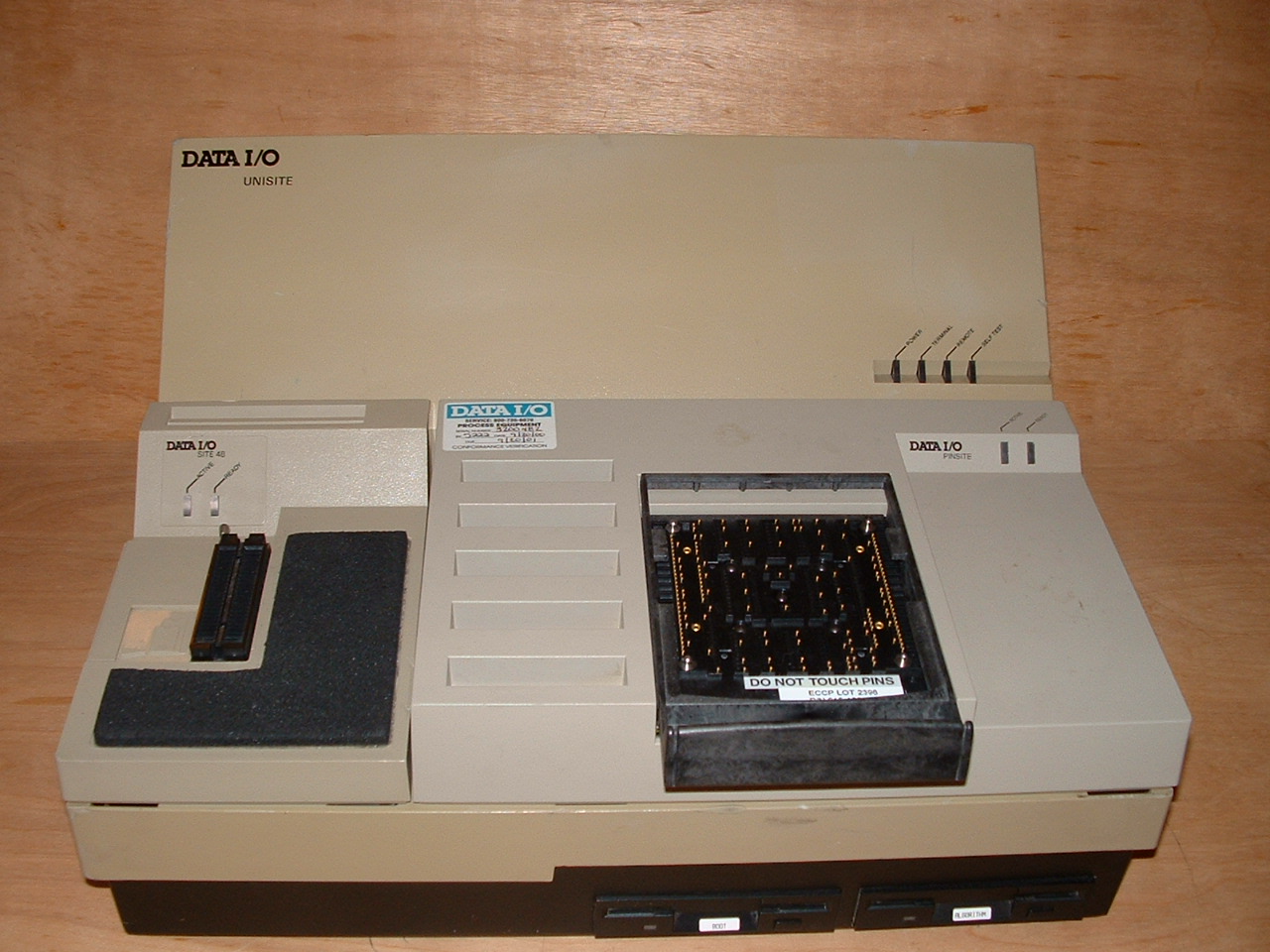

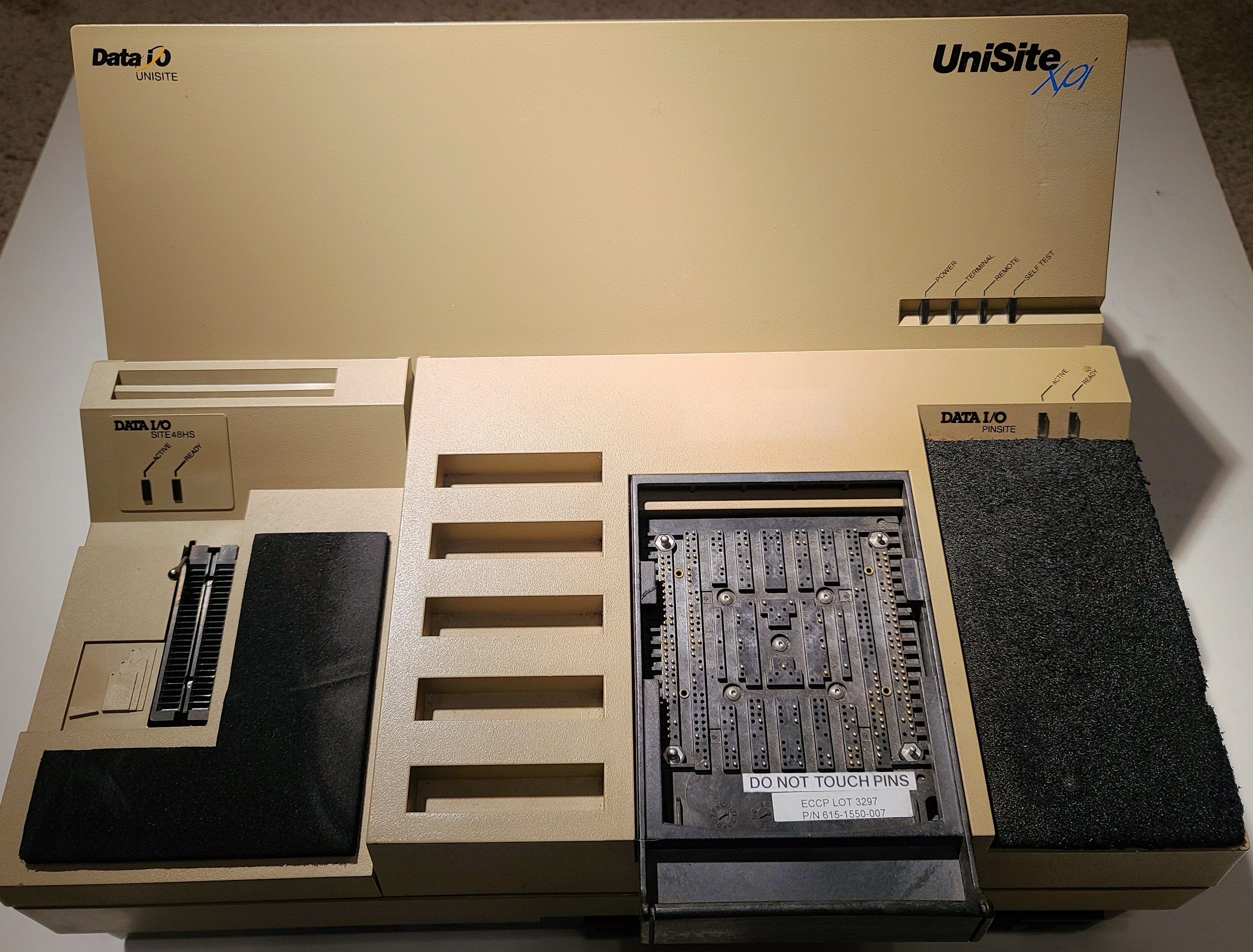

UniSite Xpi-68, my main programmer.

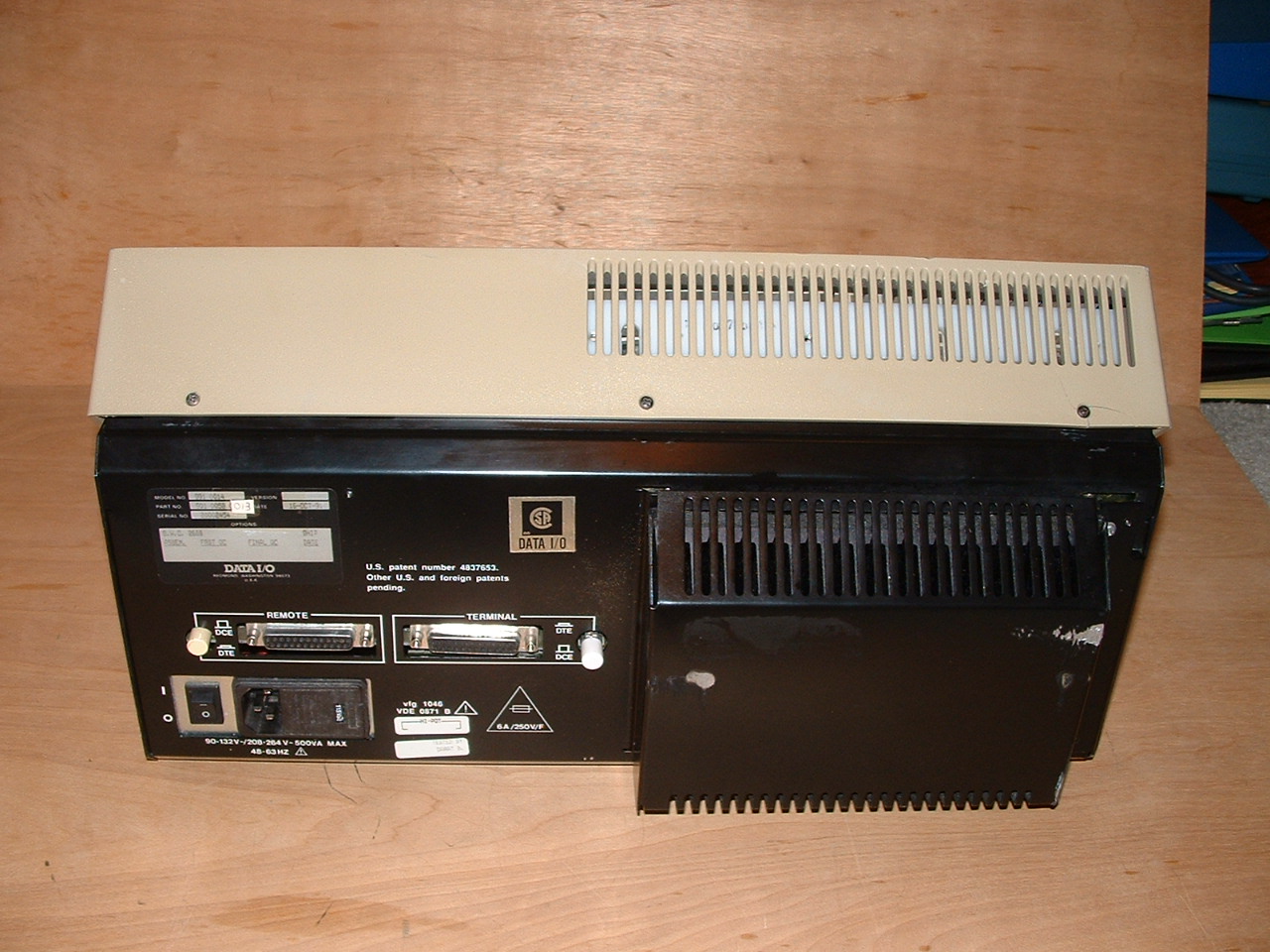

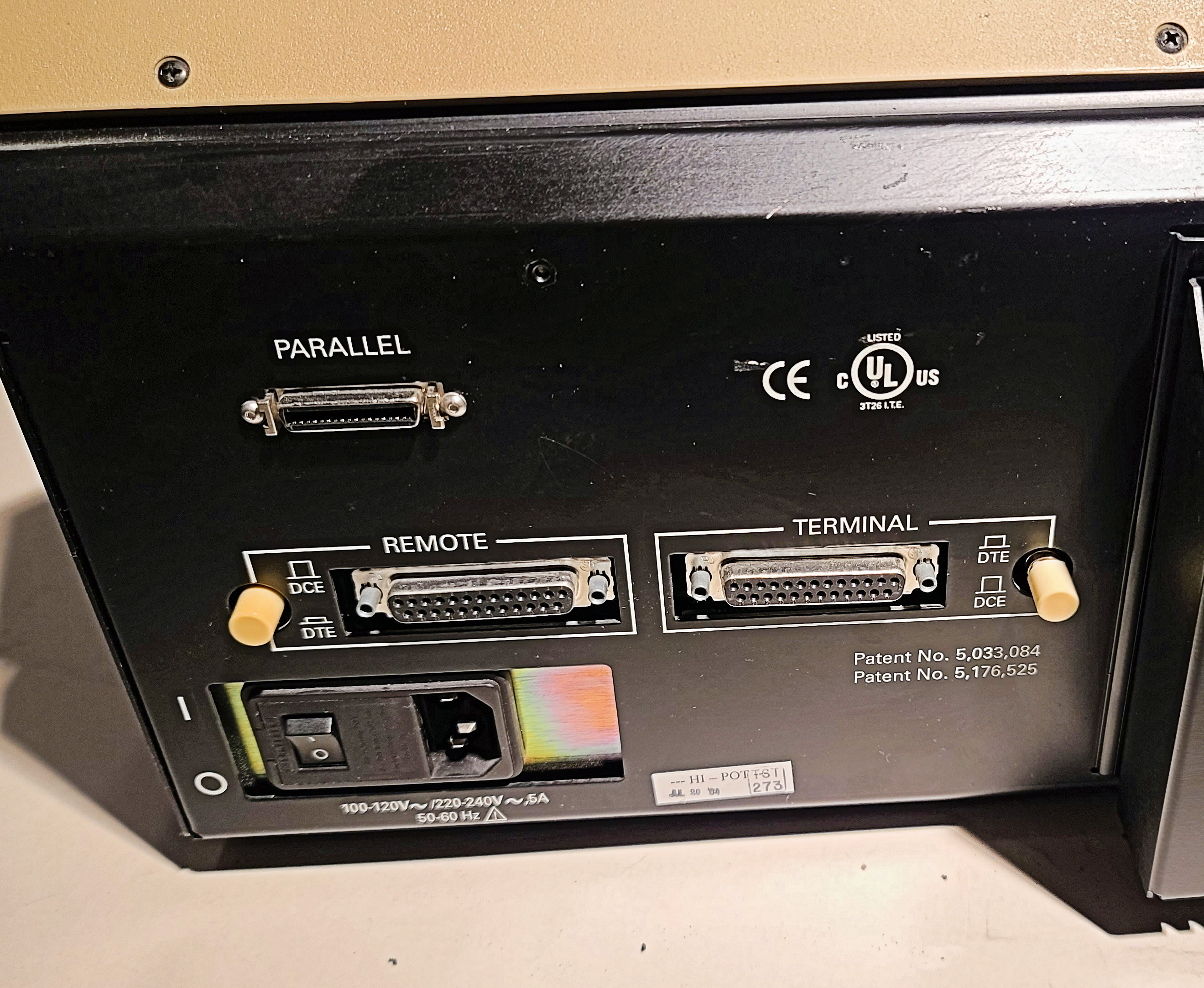

UniSite Xpi-68 back showing the addition of the HP type parallel port.

This is my UniSite backup programmer, it also has a MSM, no parallel port.

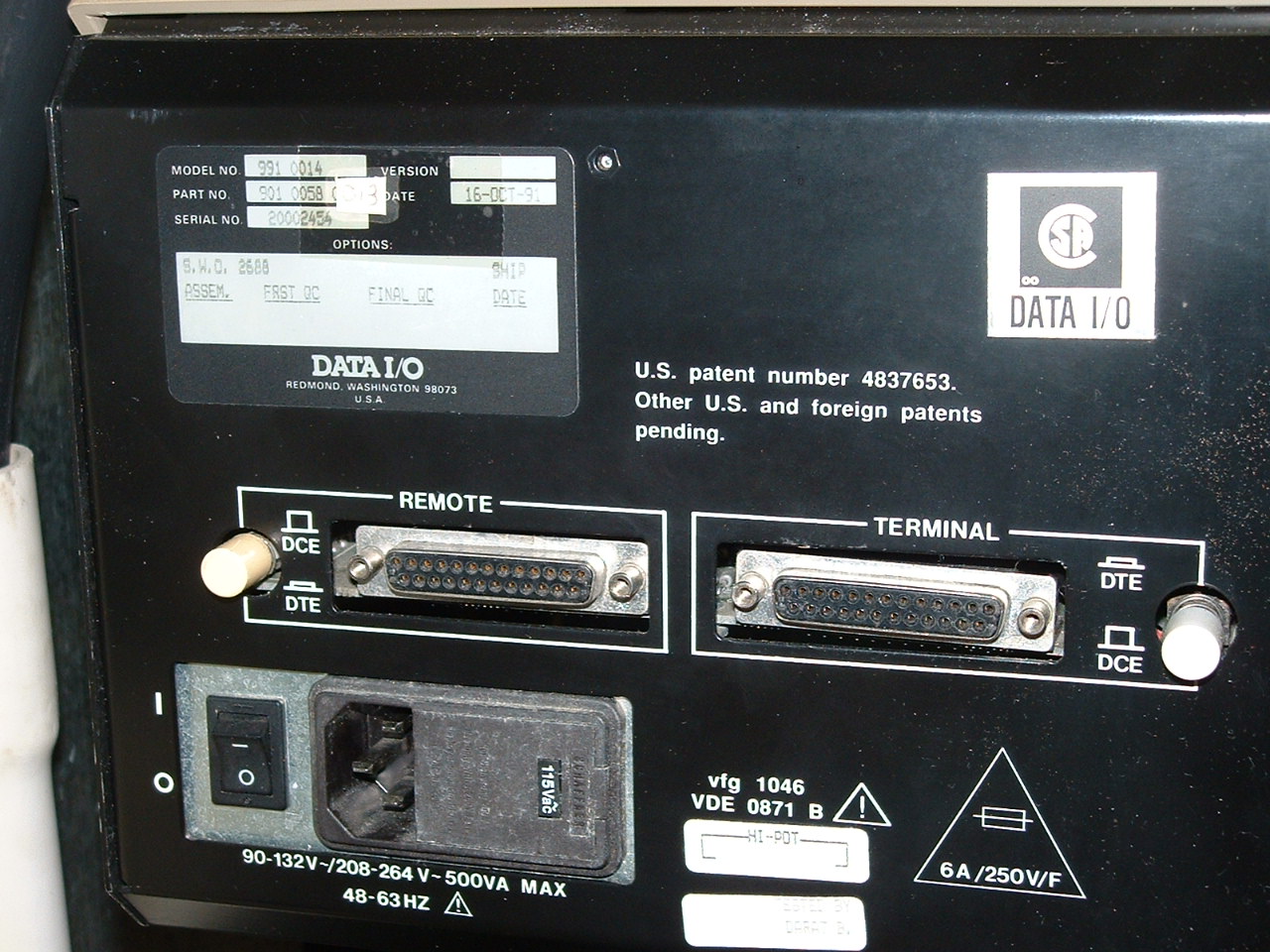

Model # 991 0014, Part # 901 0058 013, Serial # 20002454. This unit was upgraded to version 013.

Initailly the power and self-test is on. The self-test will turn off within a few seconds to several min. depending on options installed.

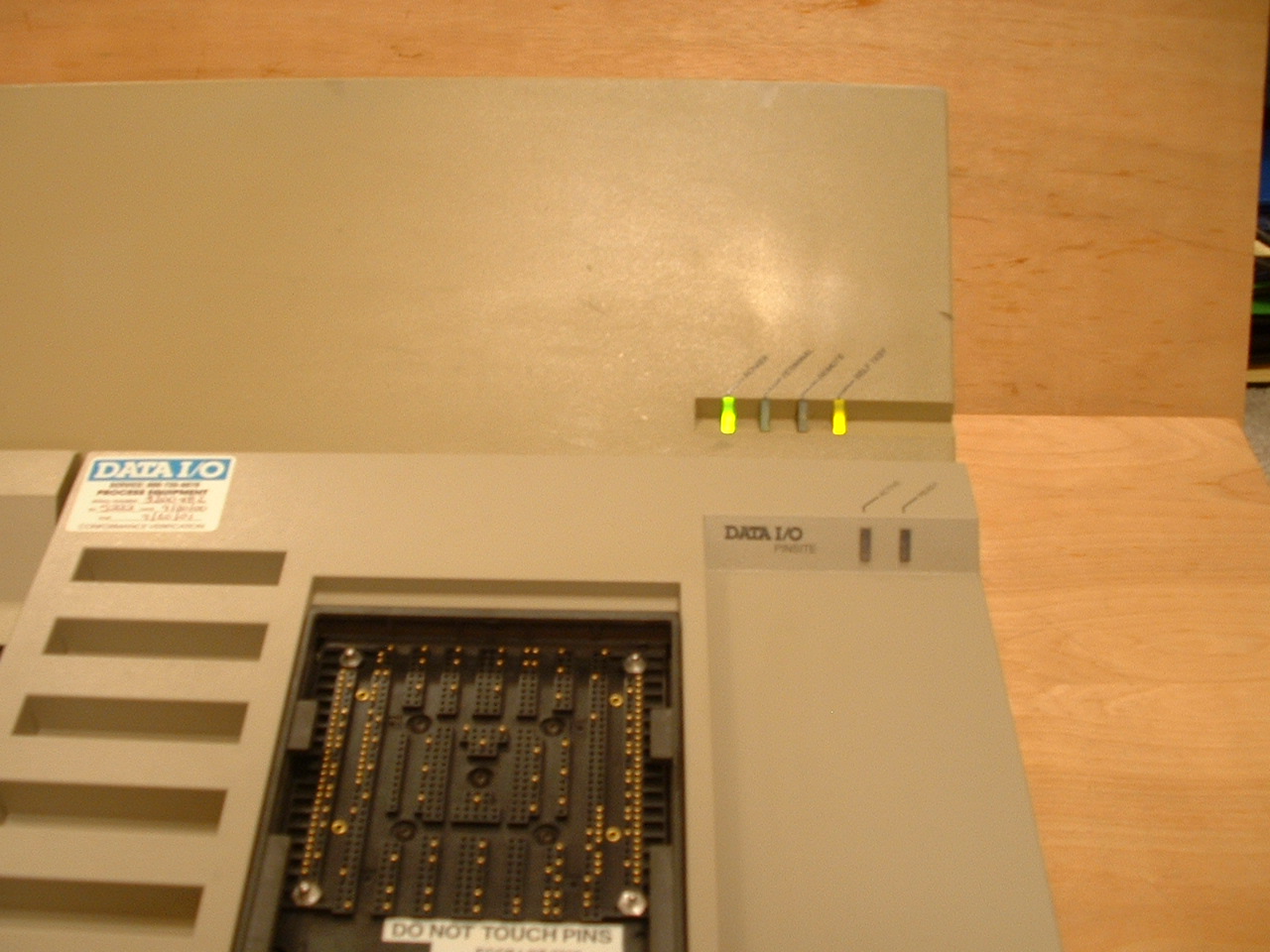

You can see the power on light in the upper right and the ready in the lower left.

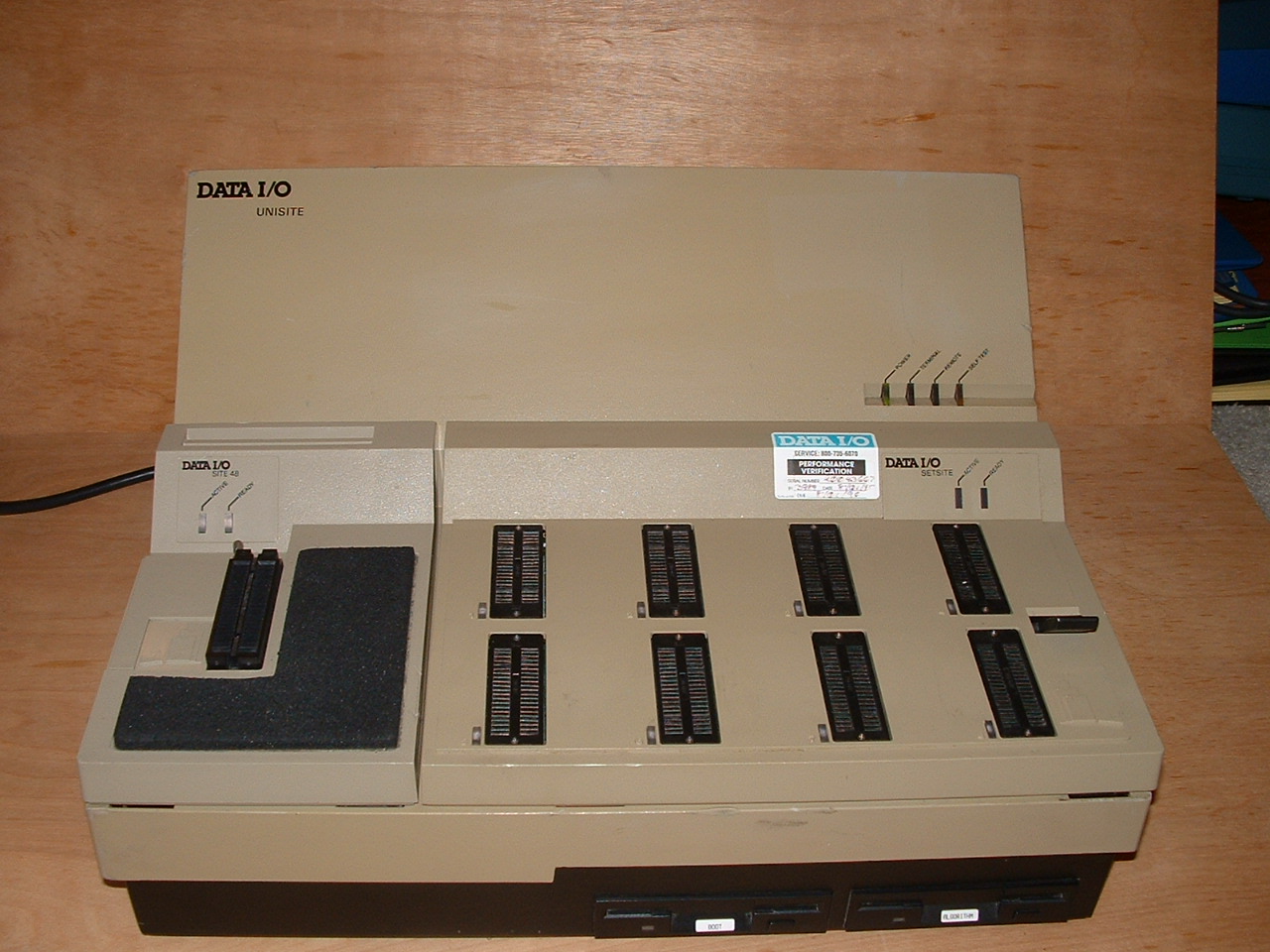

SetSite installed.

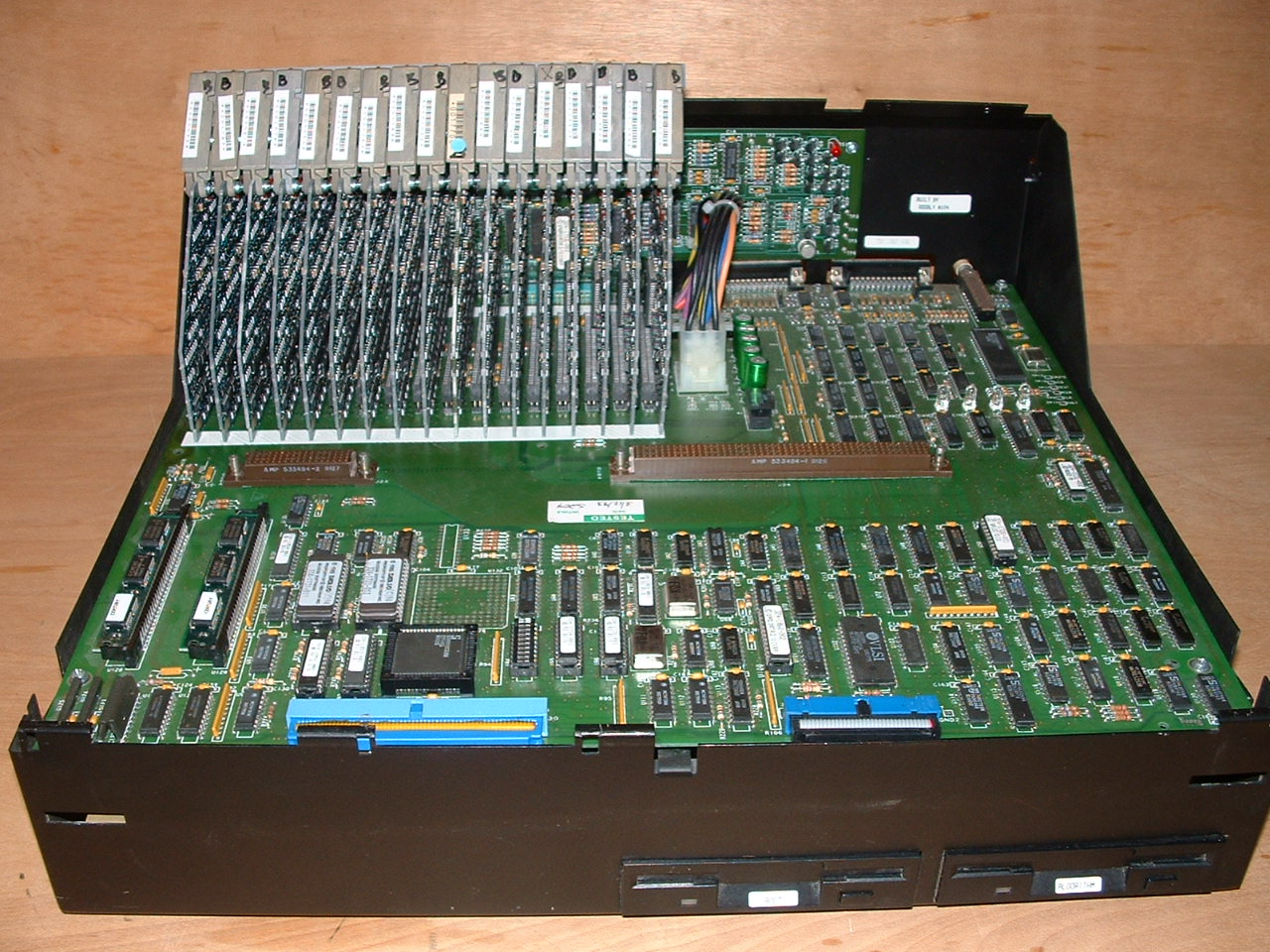

Full compliment of 17 PinSite modeules.

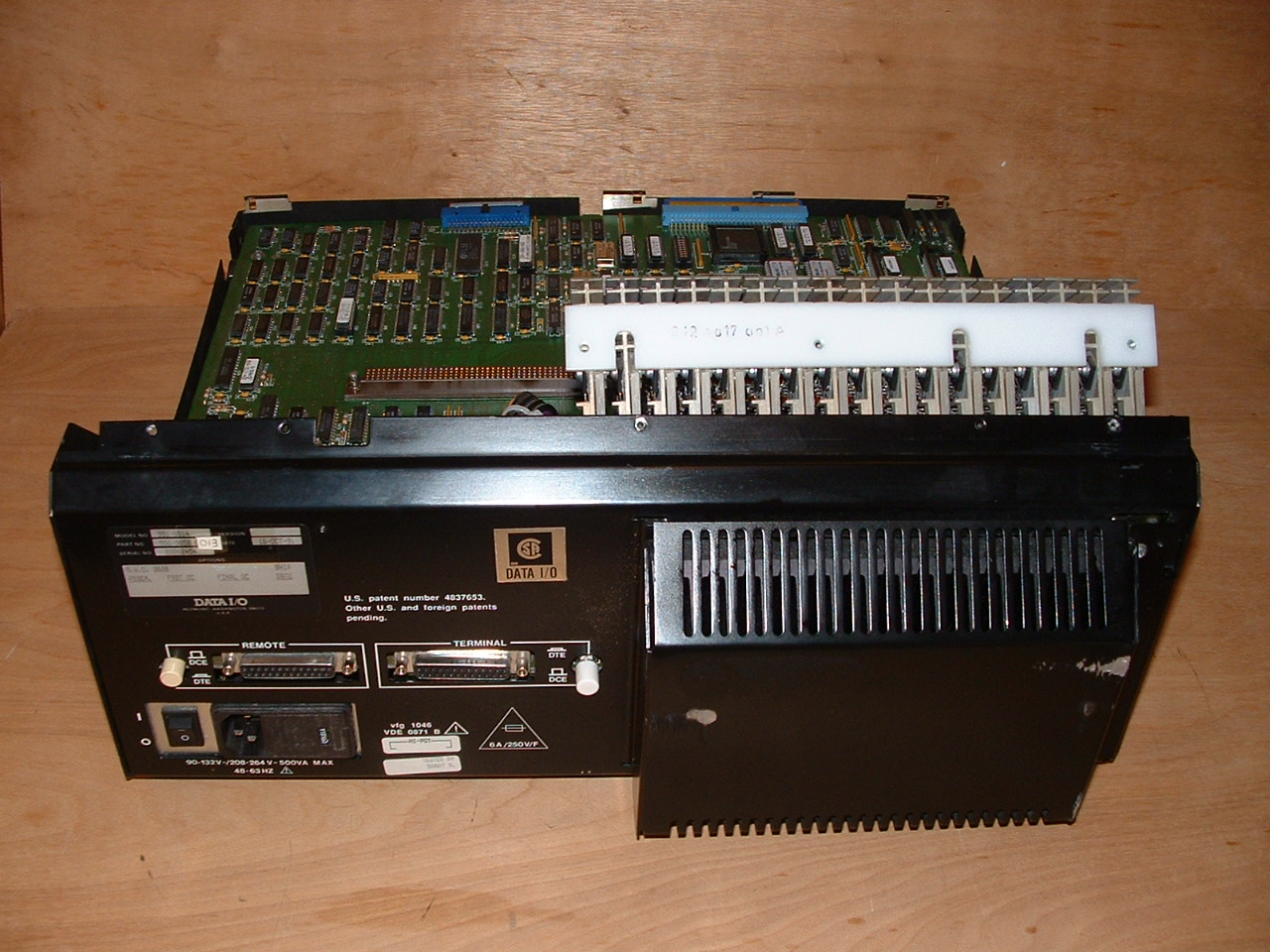

Back side showing the nylon space adapter to stabilize the PinSites. I have seen this missing on many UniSites with these modules.

All PinSite modules removed. This ia also they way it would look without the PinSite option.

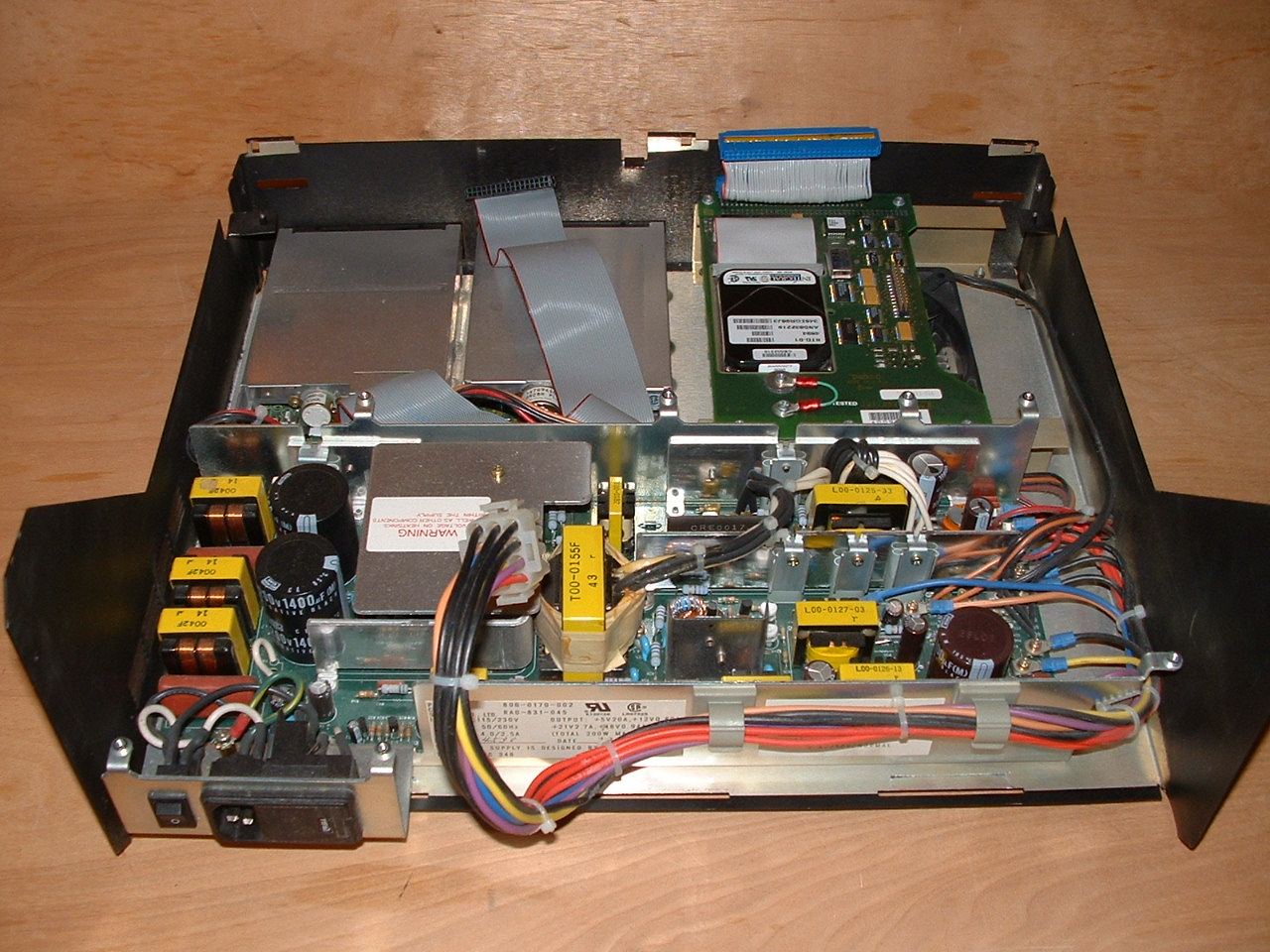

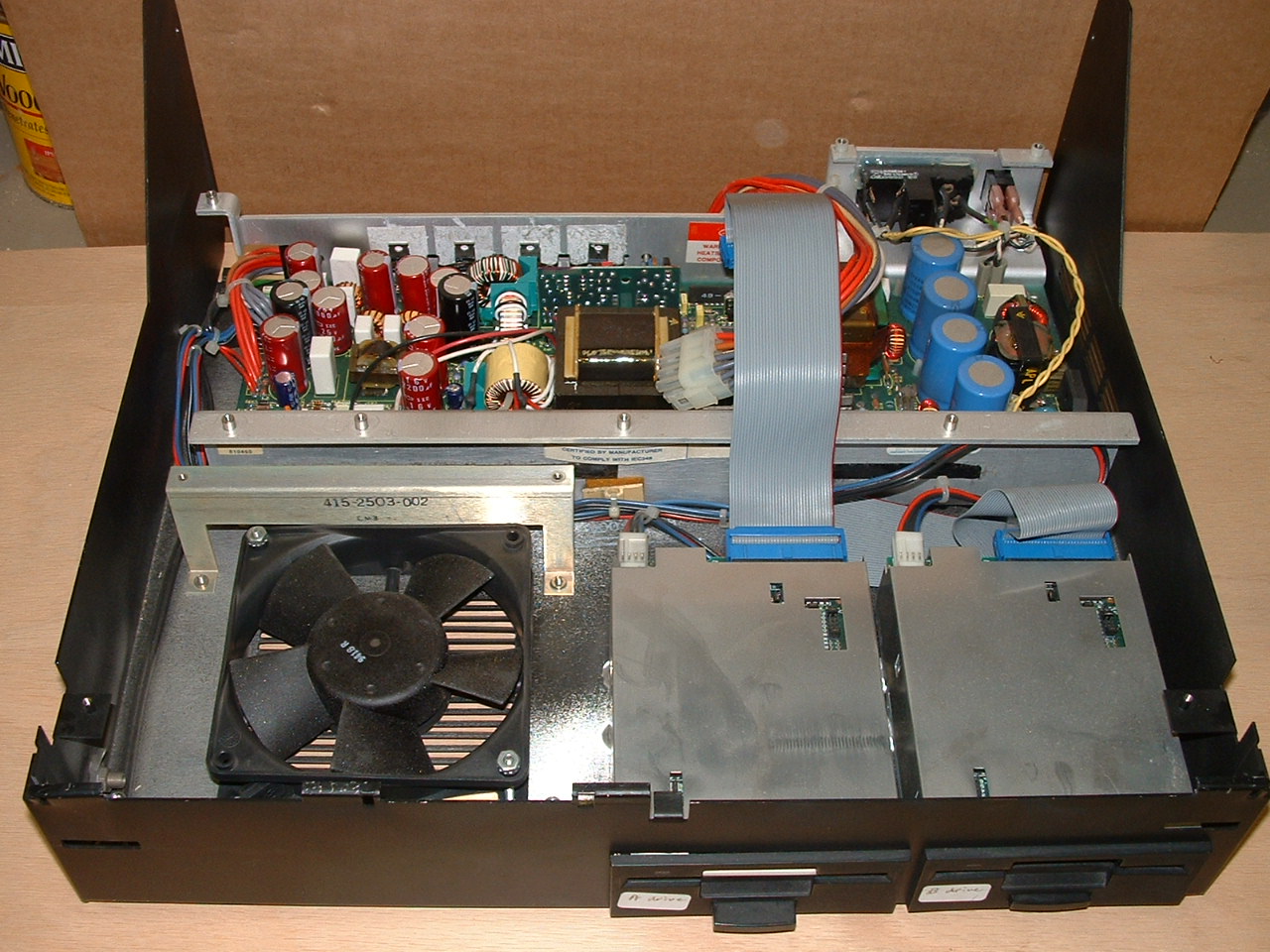

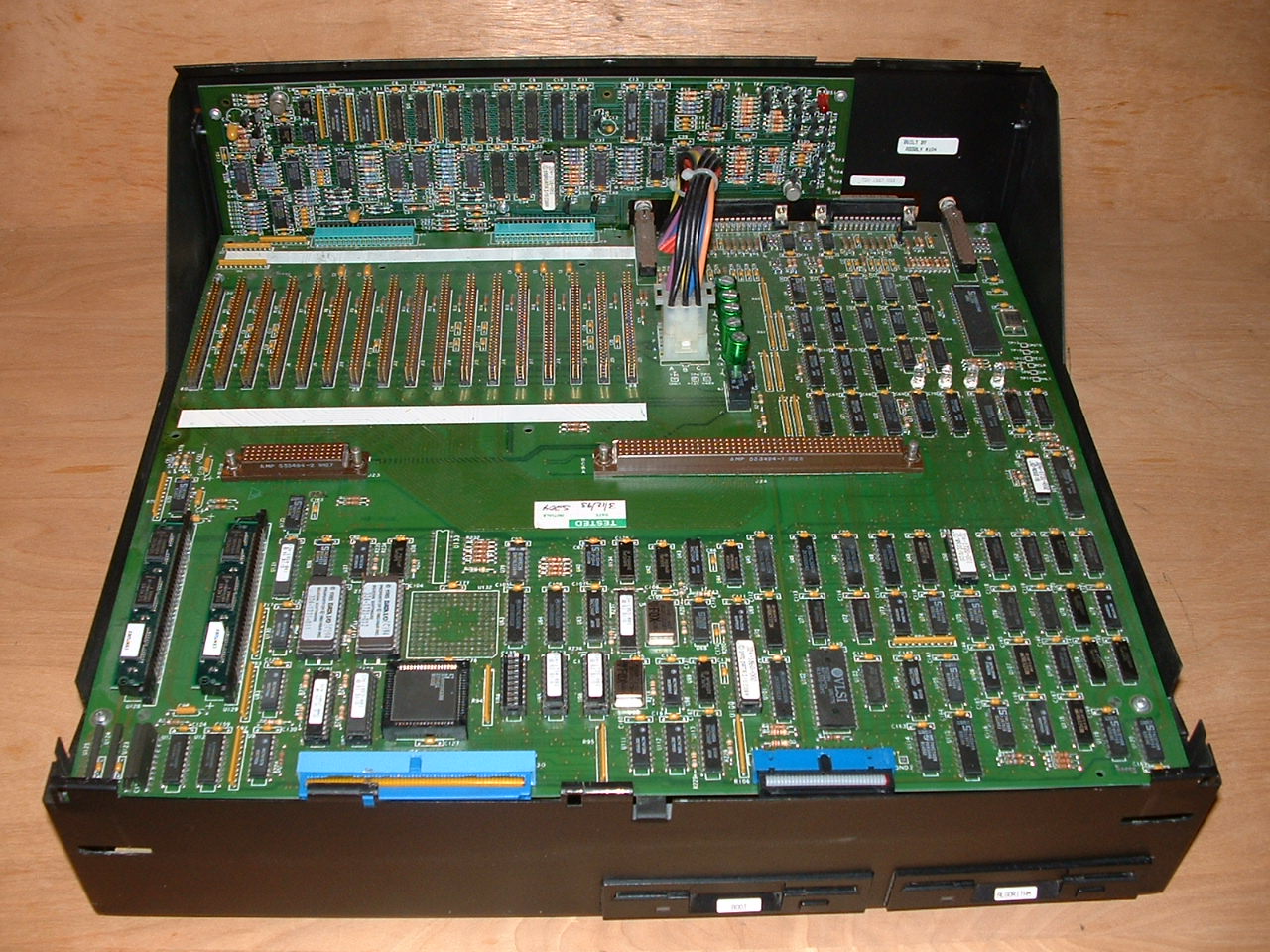

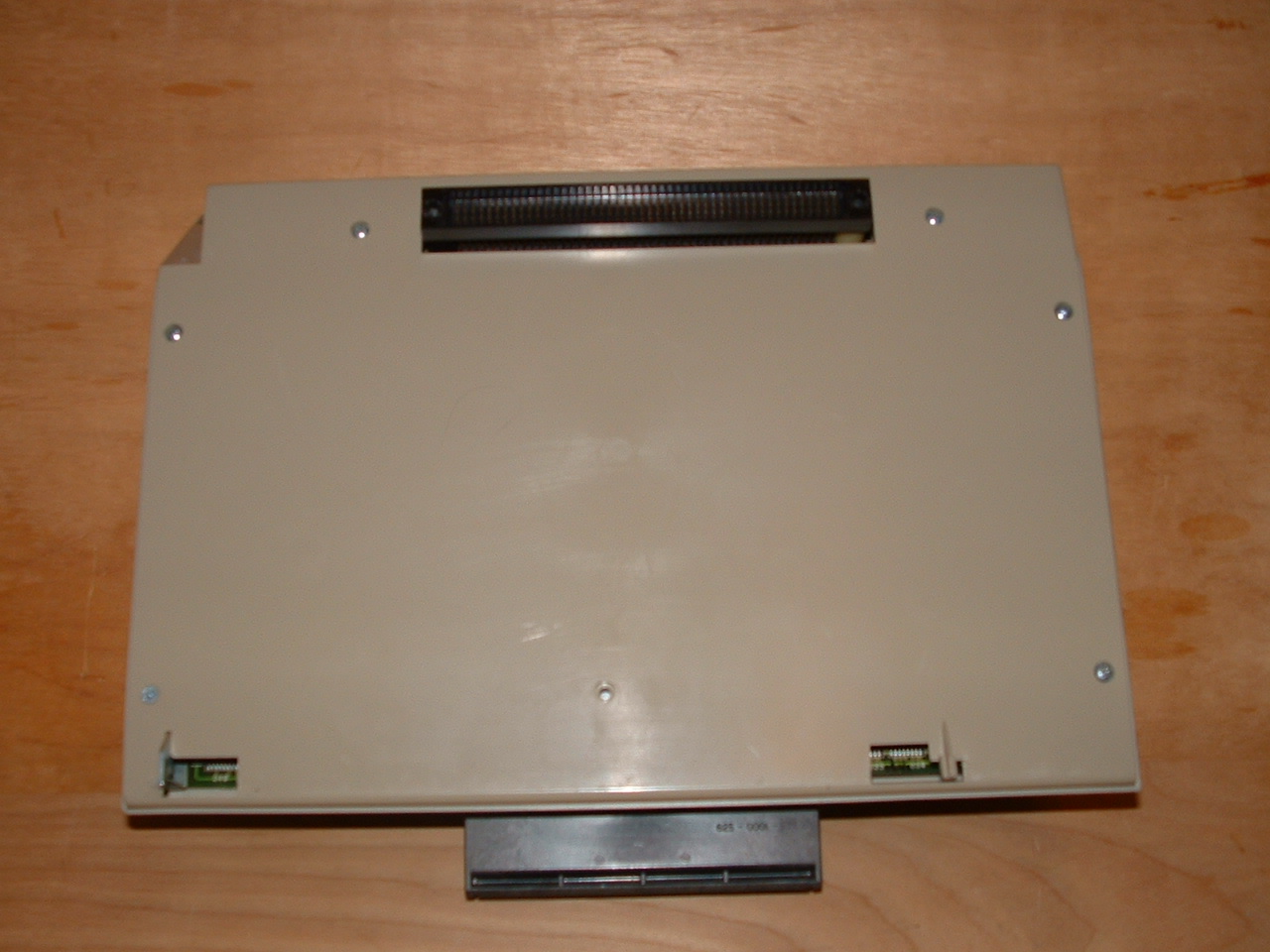

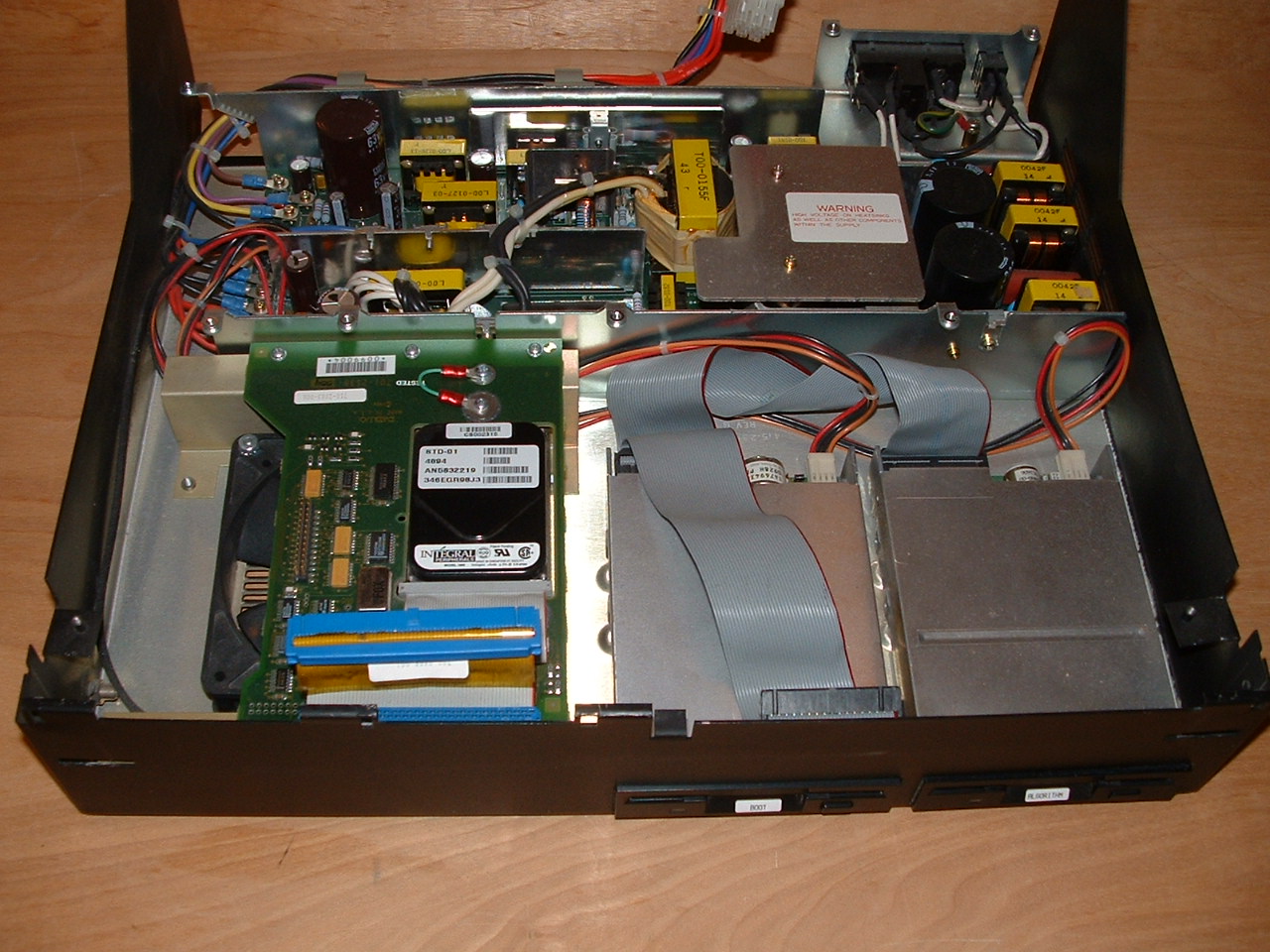

Main board removed showing the dual floppies and the hard disk module.

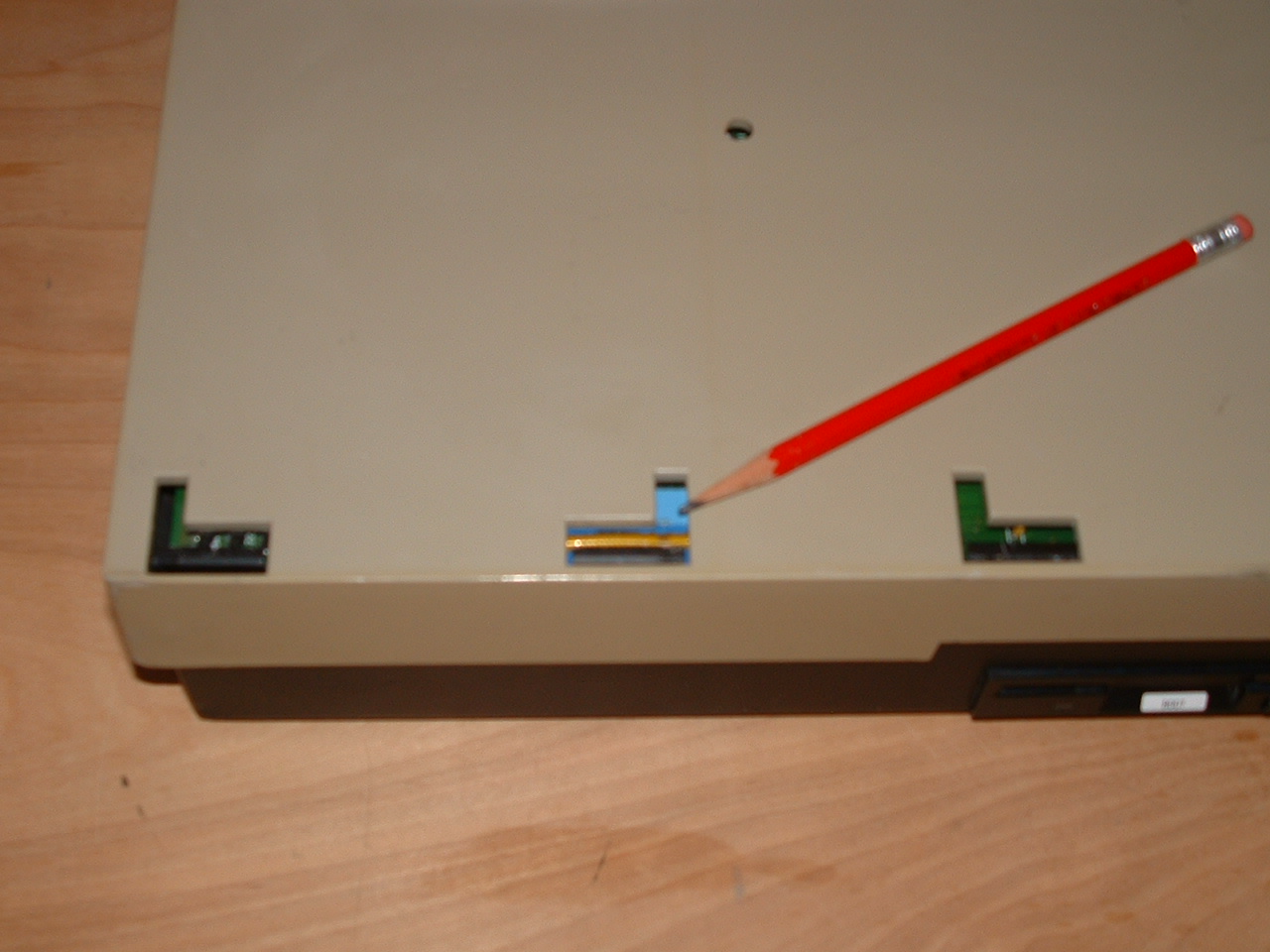

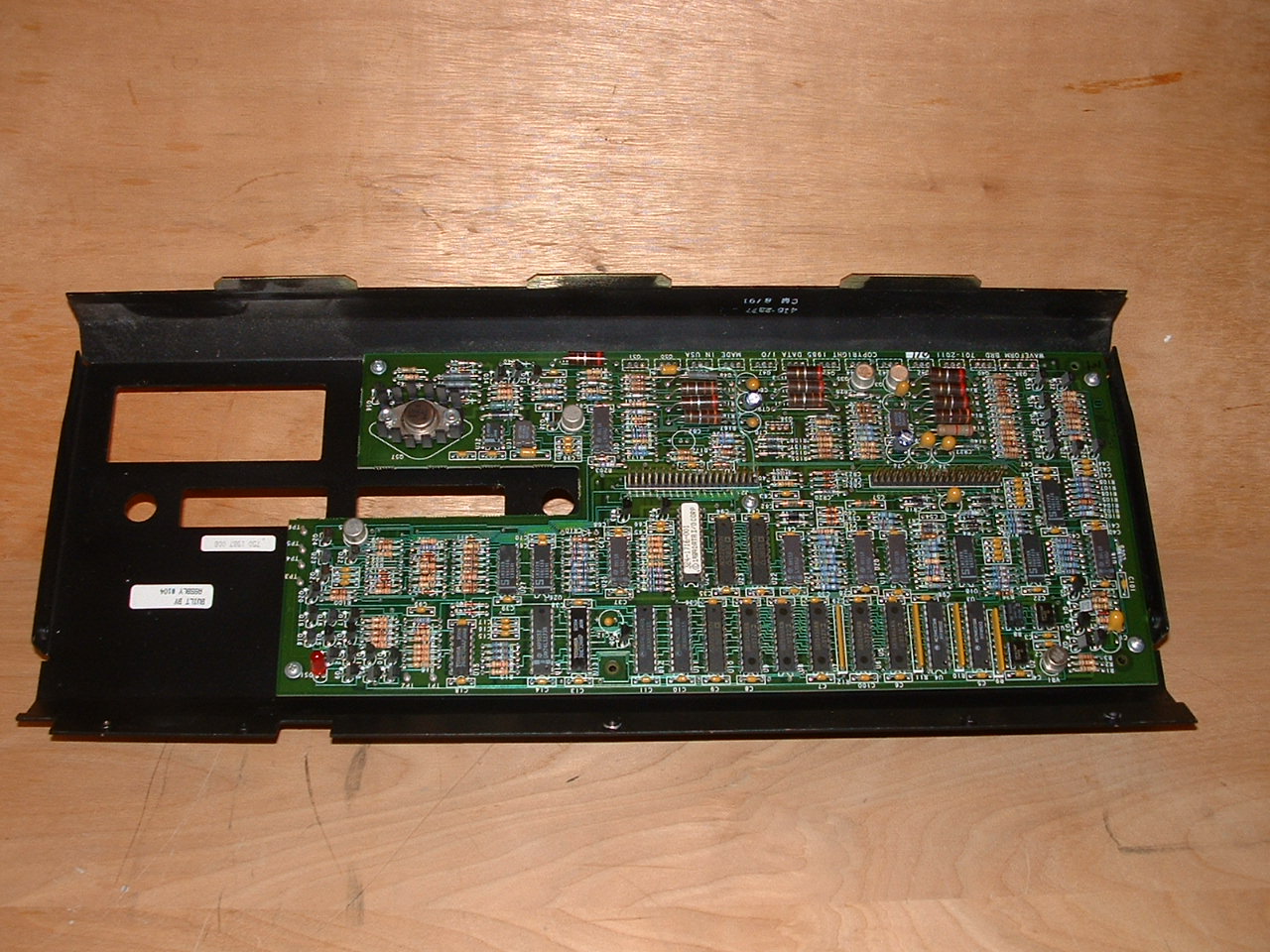

The pencil points to the cable pugged into the disk connector on newer boards and memory exp. on older ones.

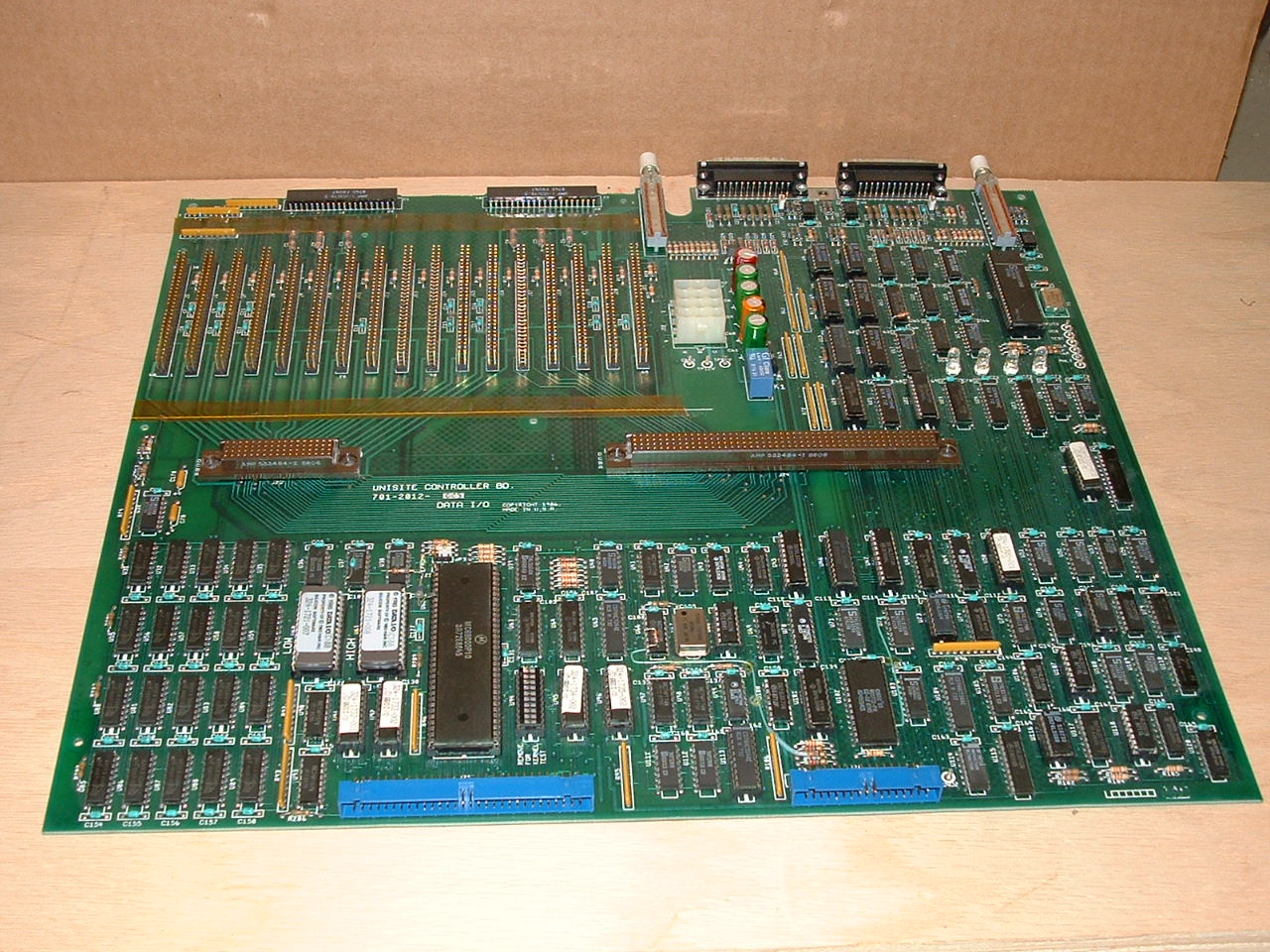

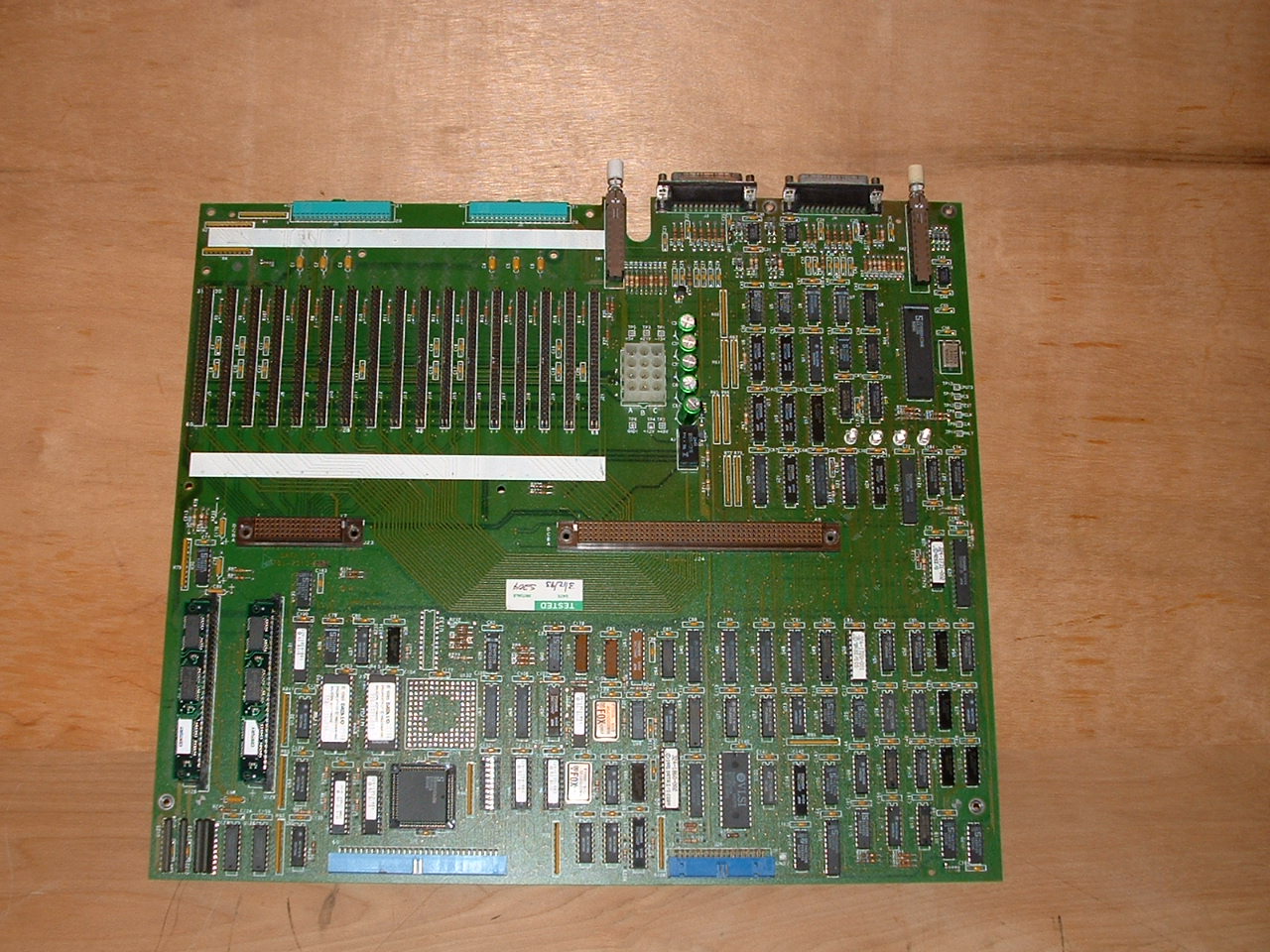

Main board top side, new style.

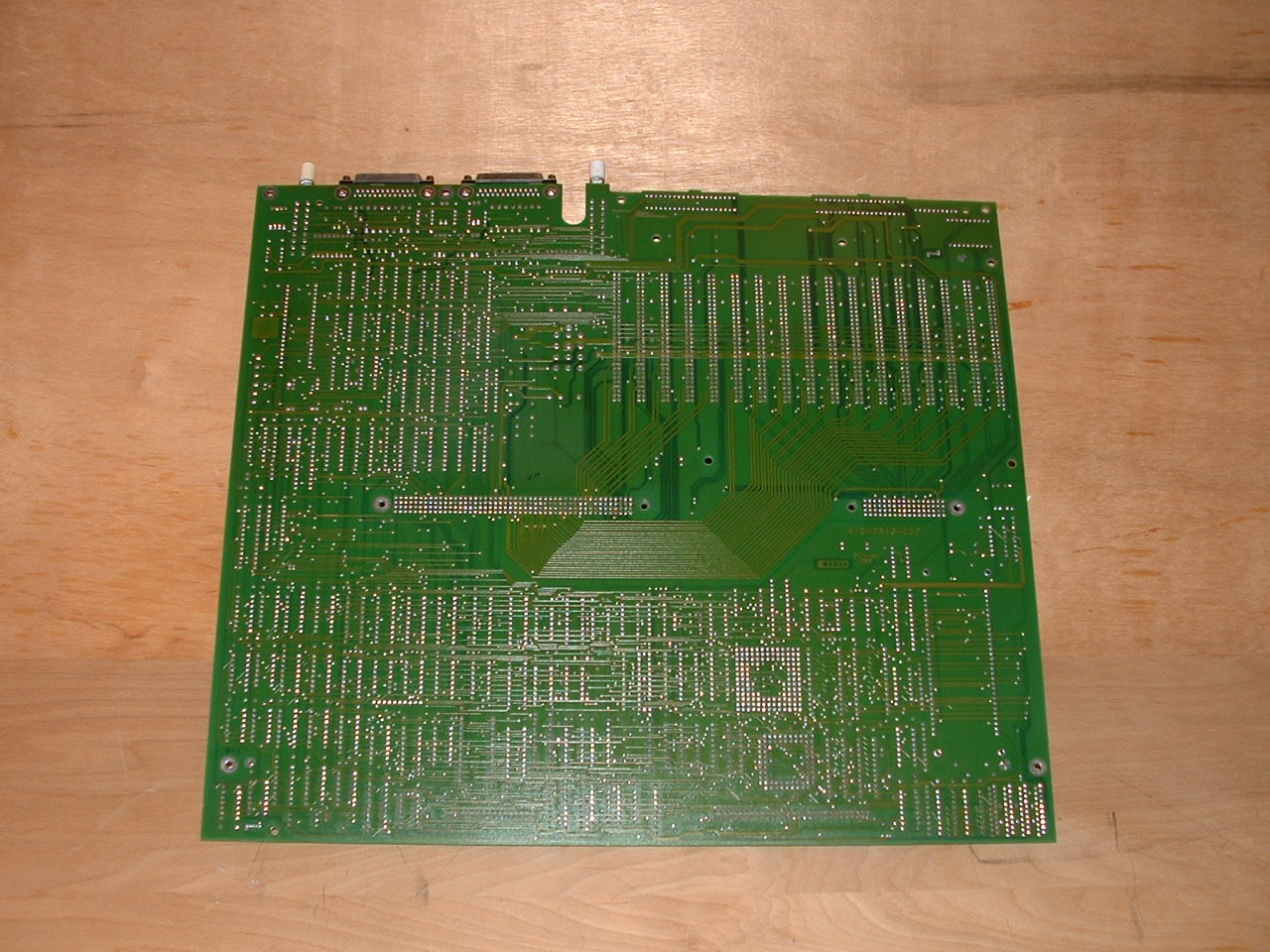

Main board bottom side.

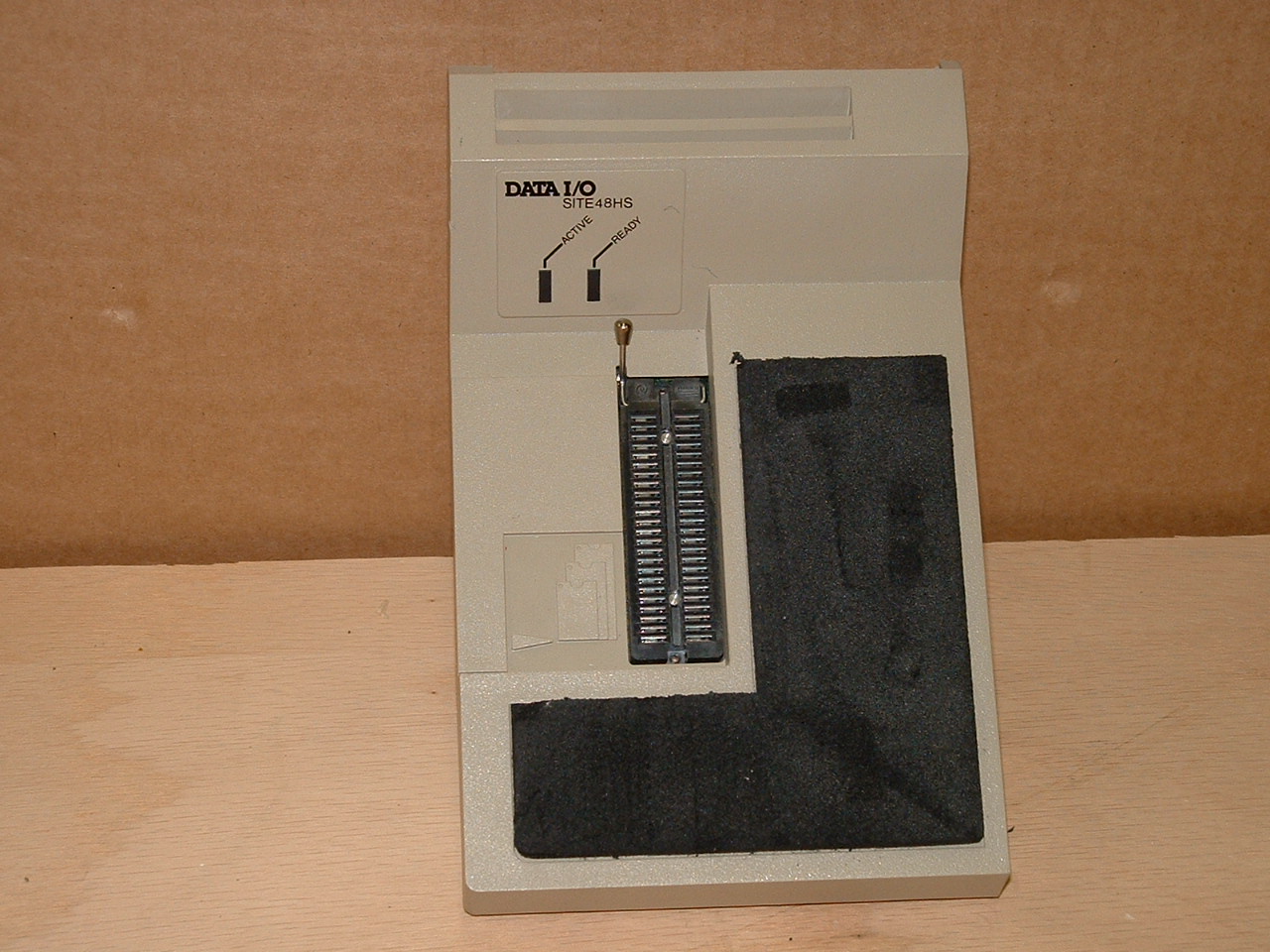

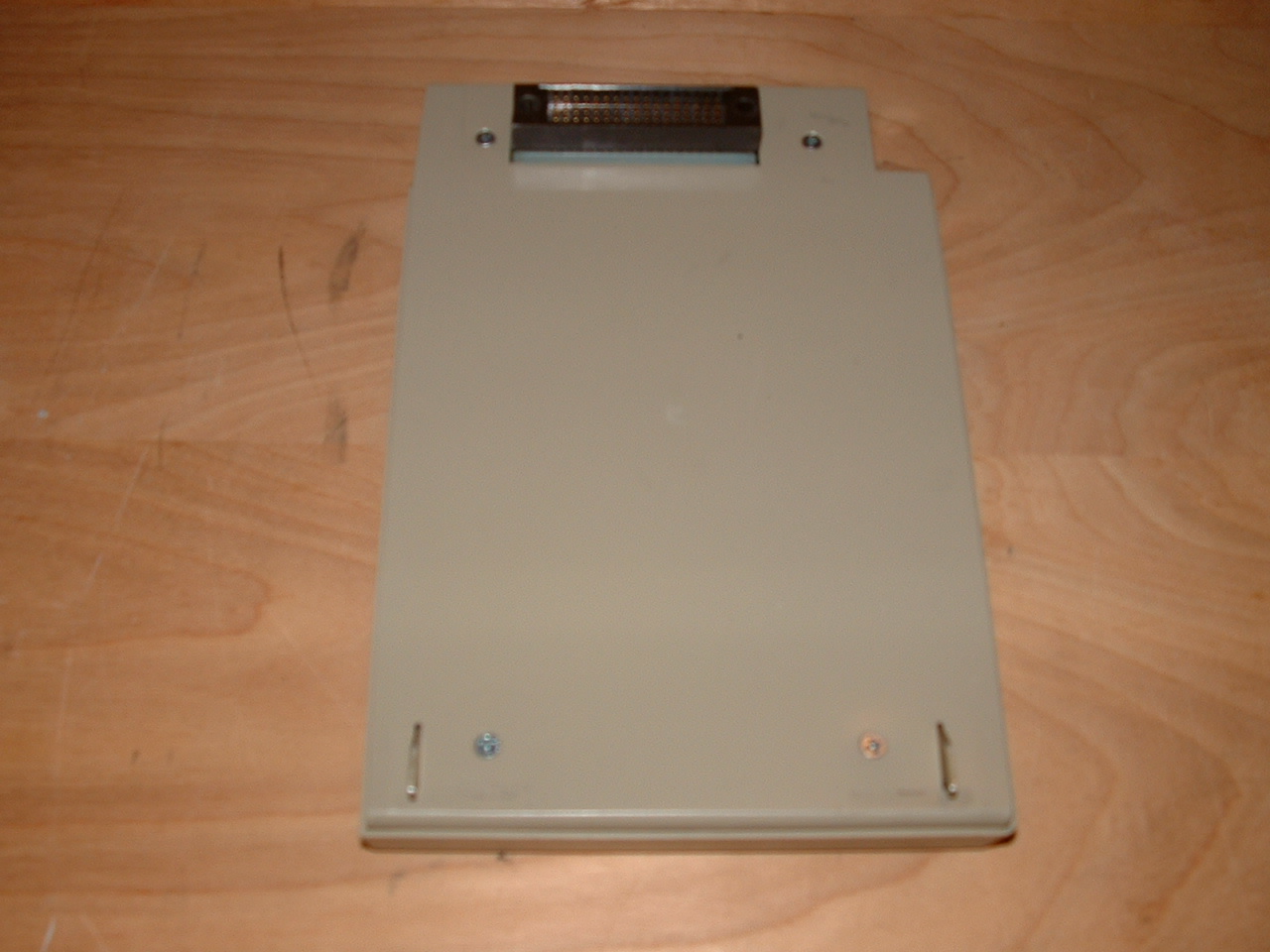

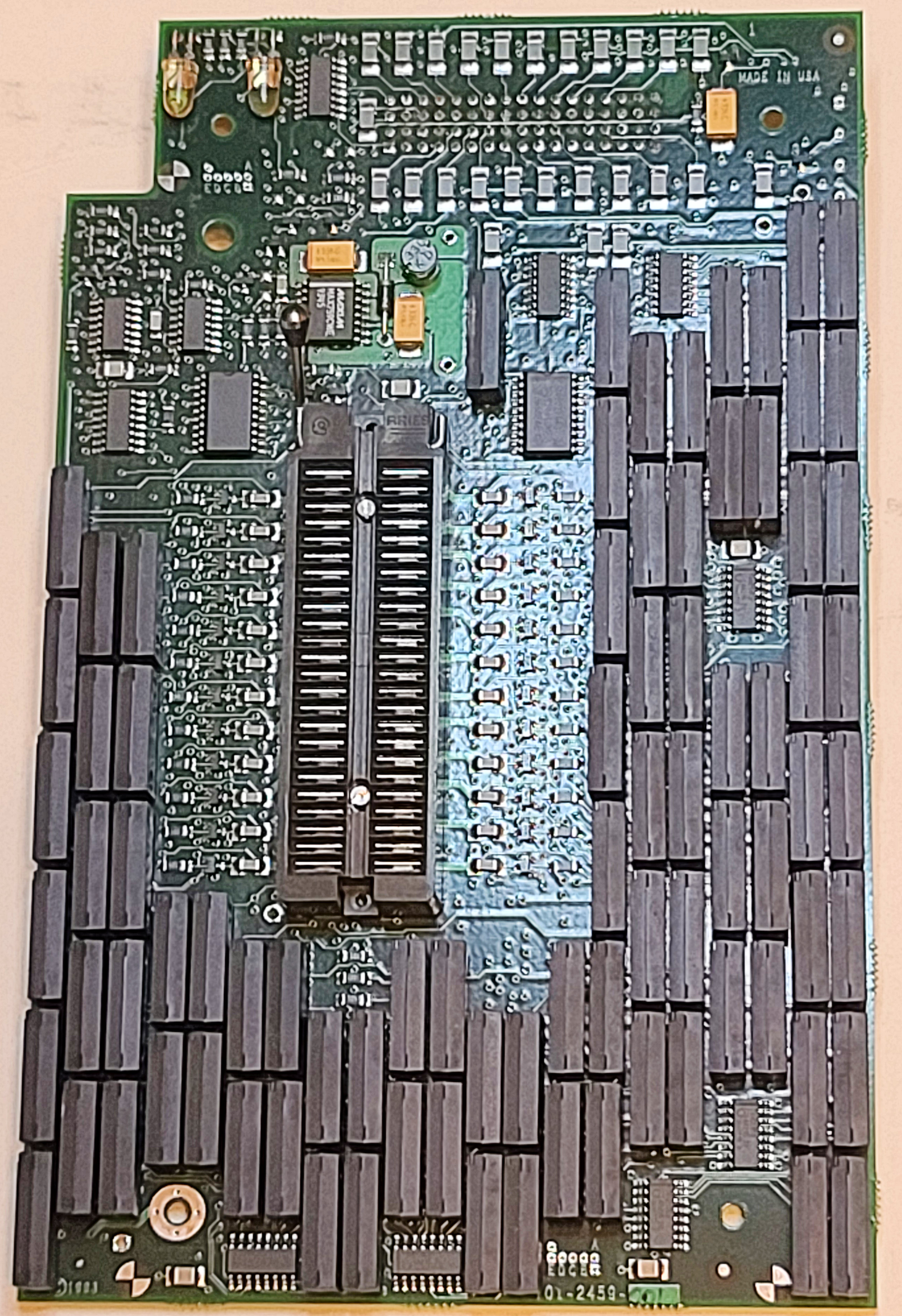

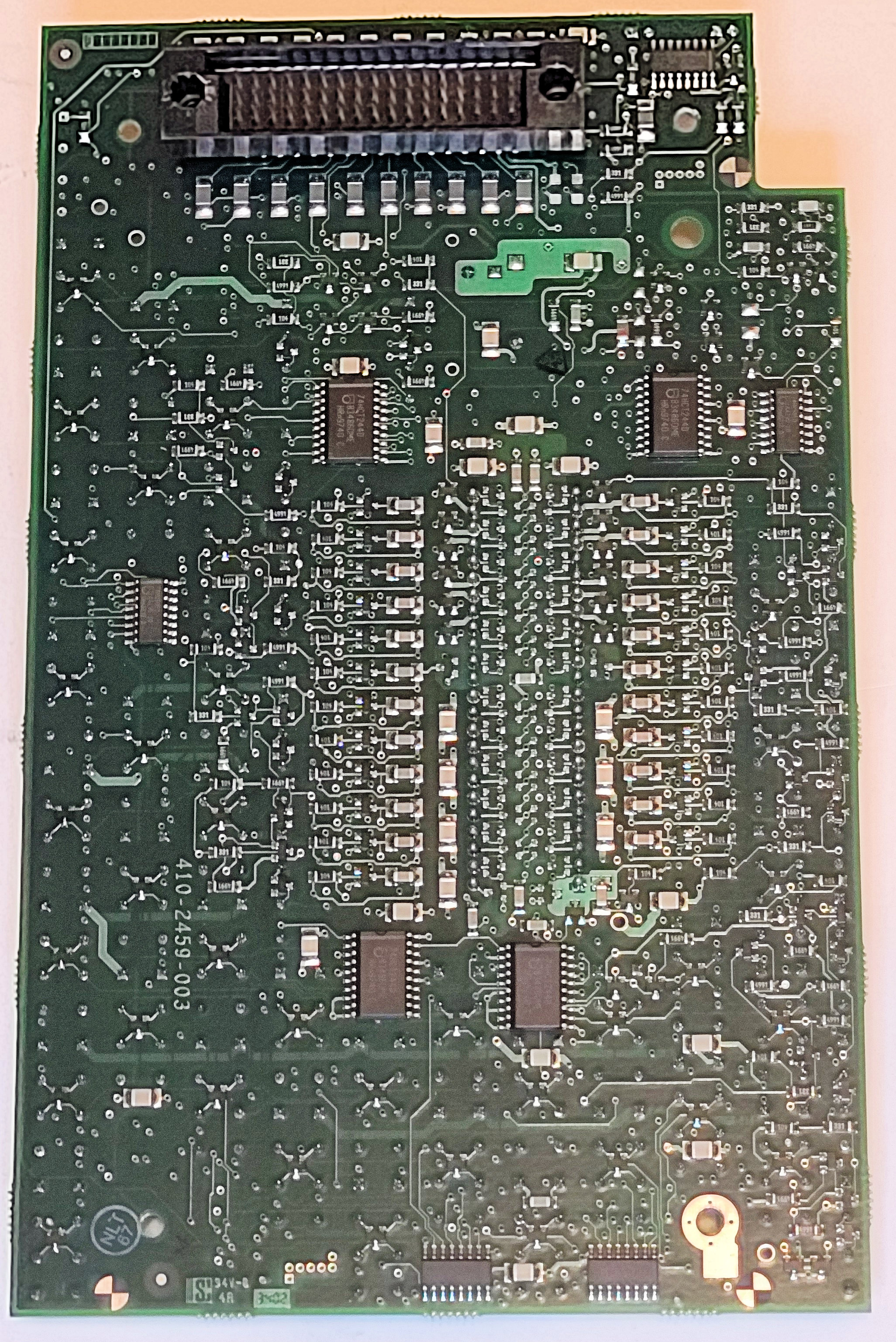

Site 48HS high speed module

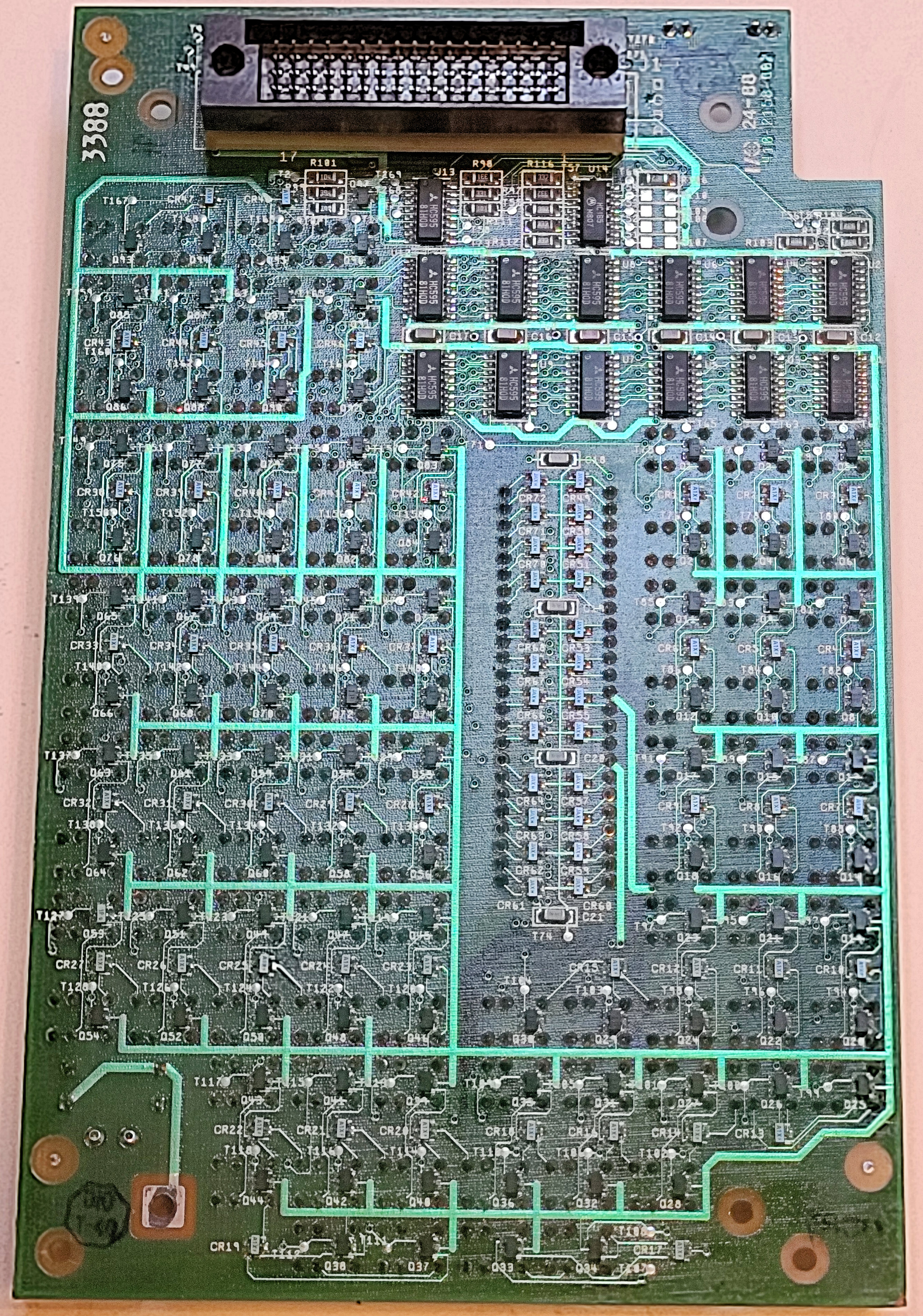

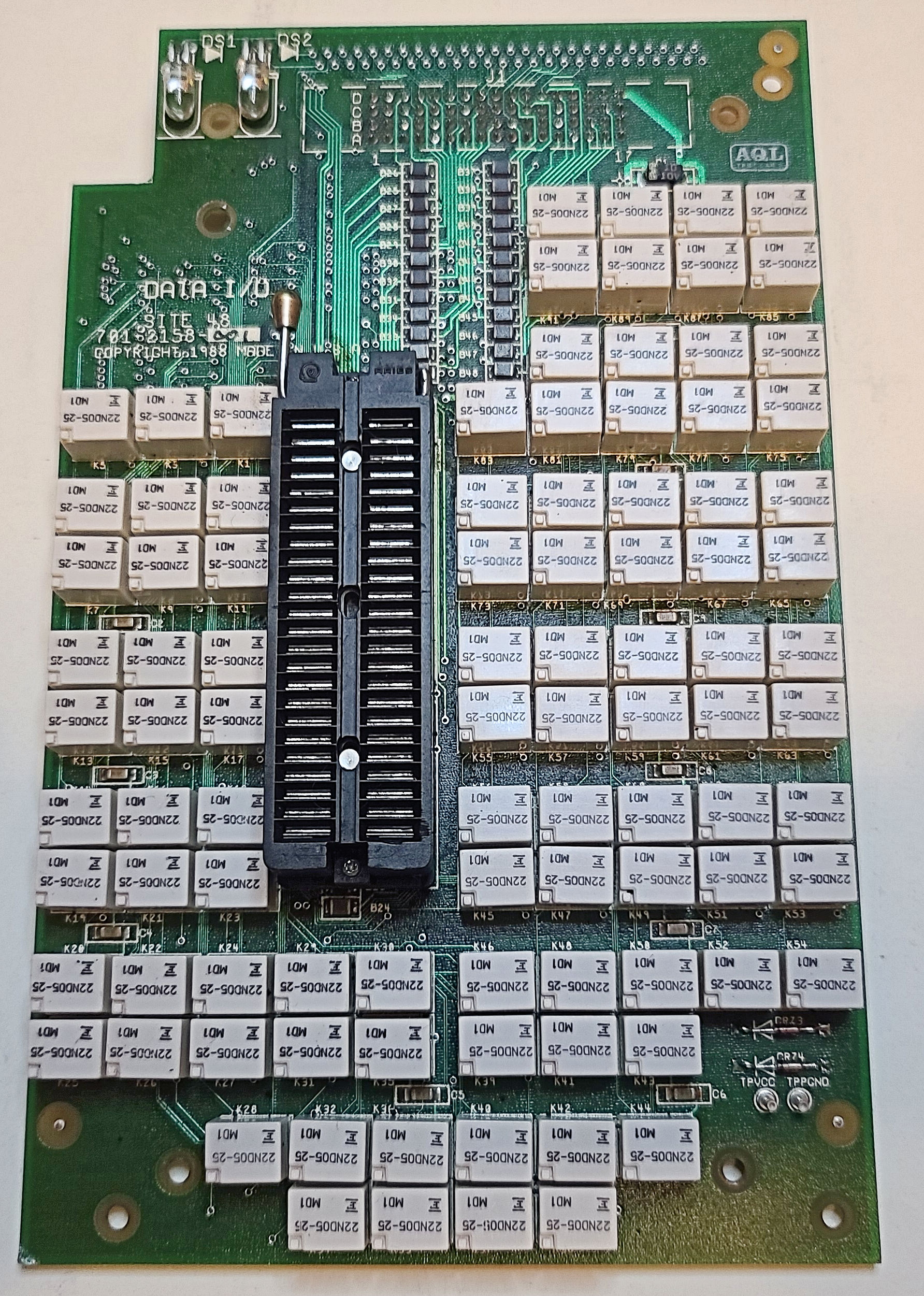

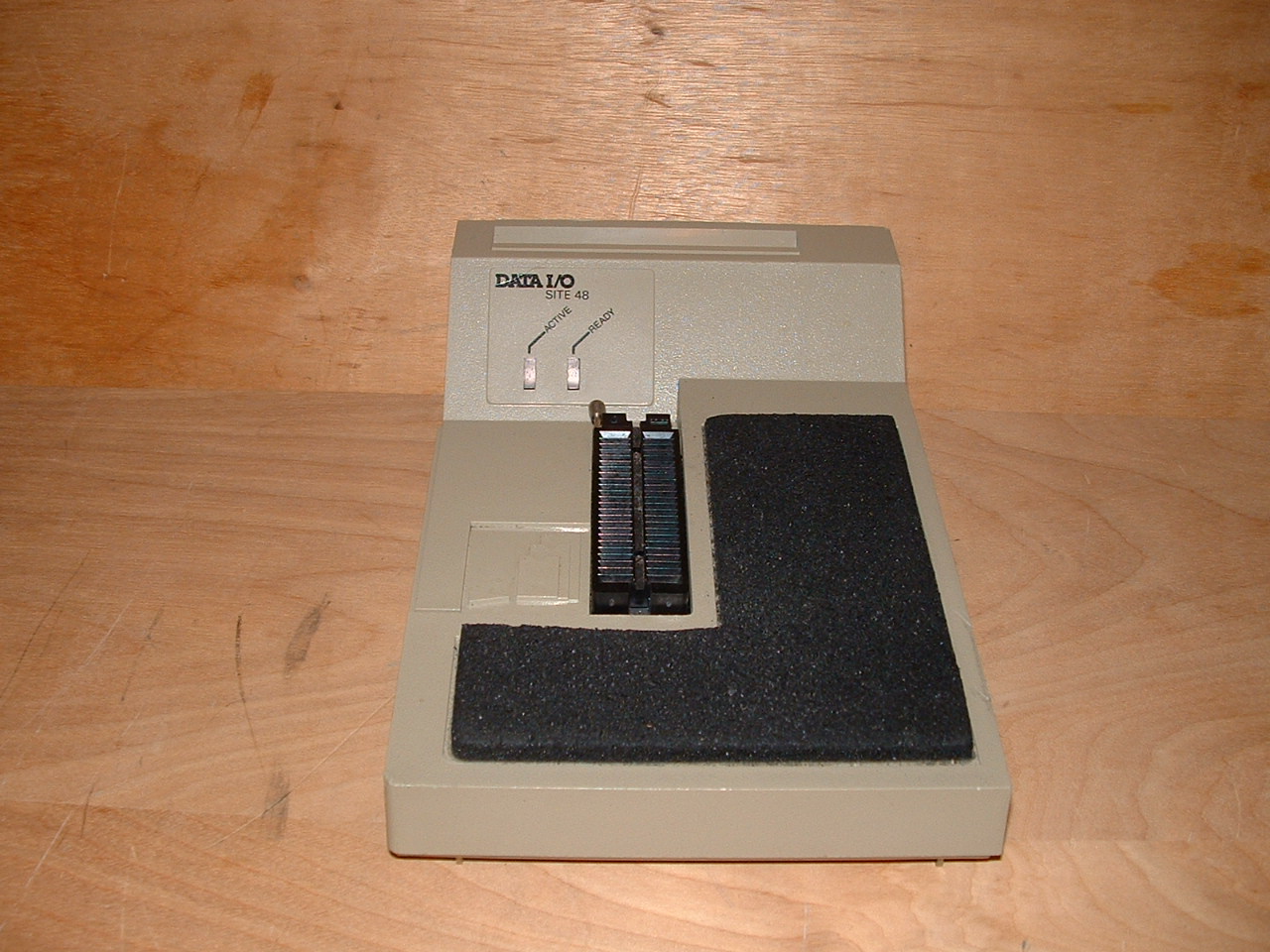

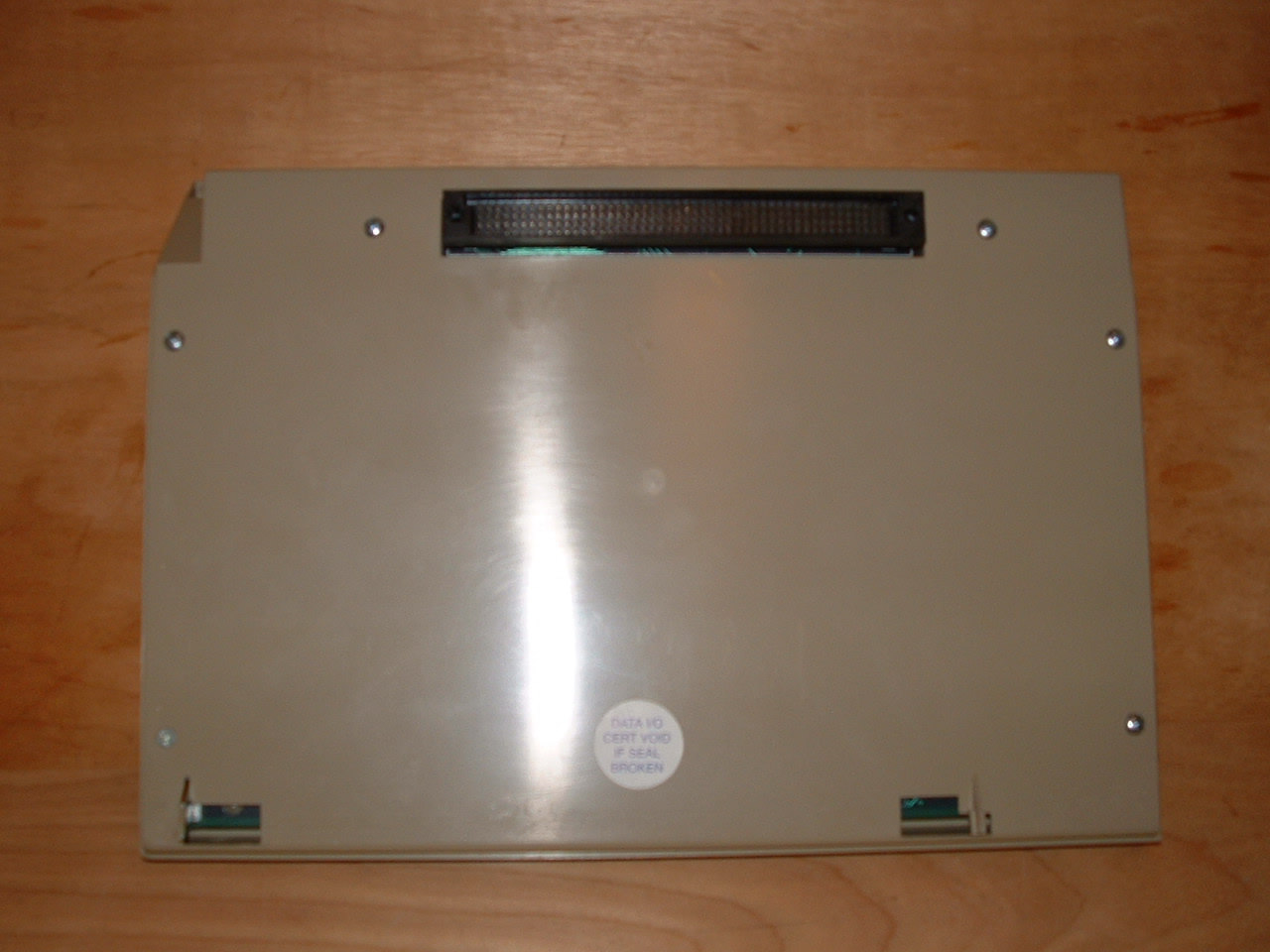

Site 48 module.

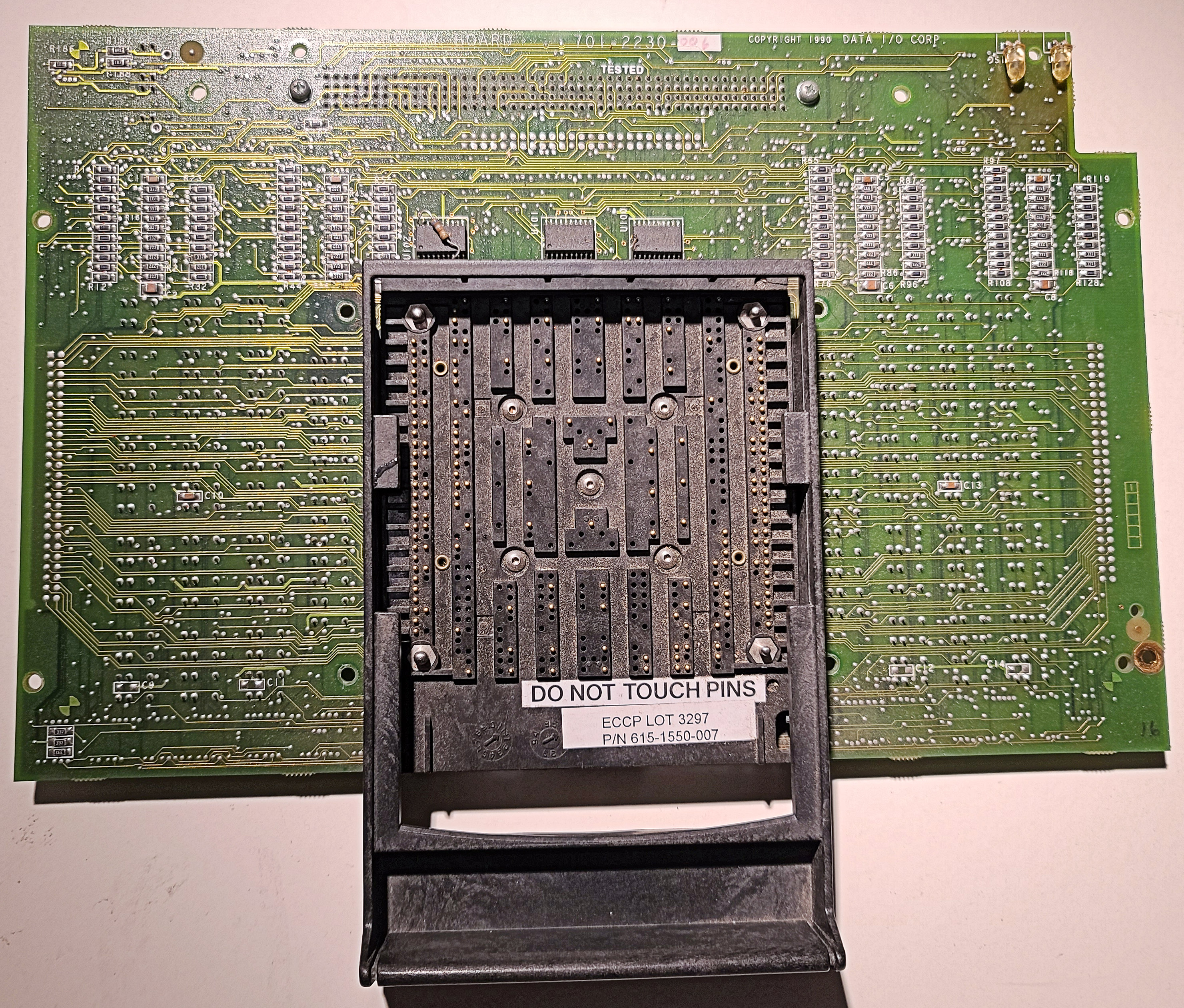

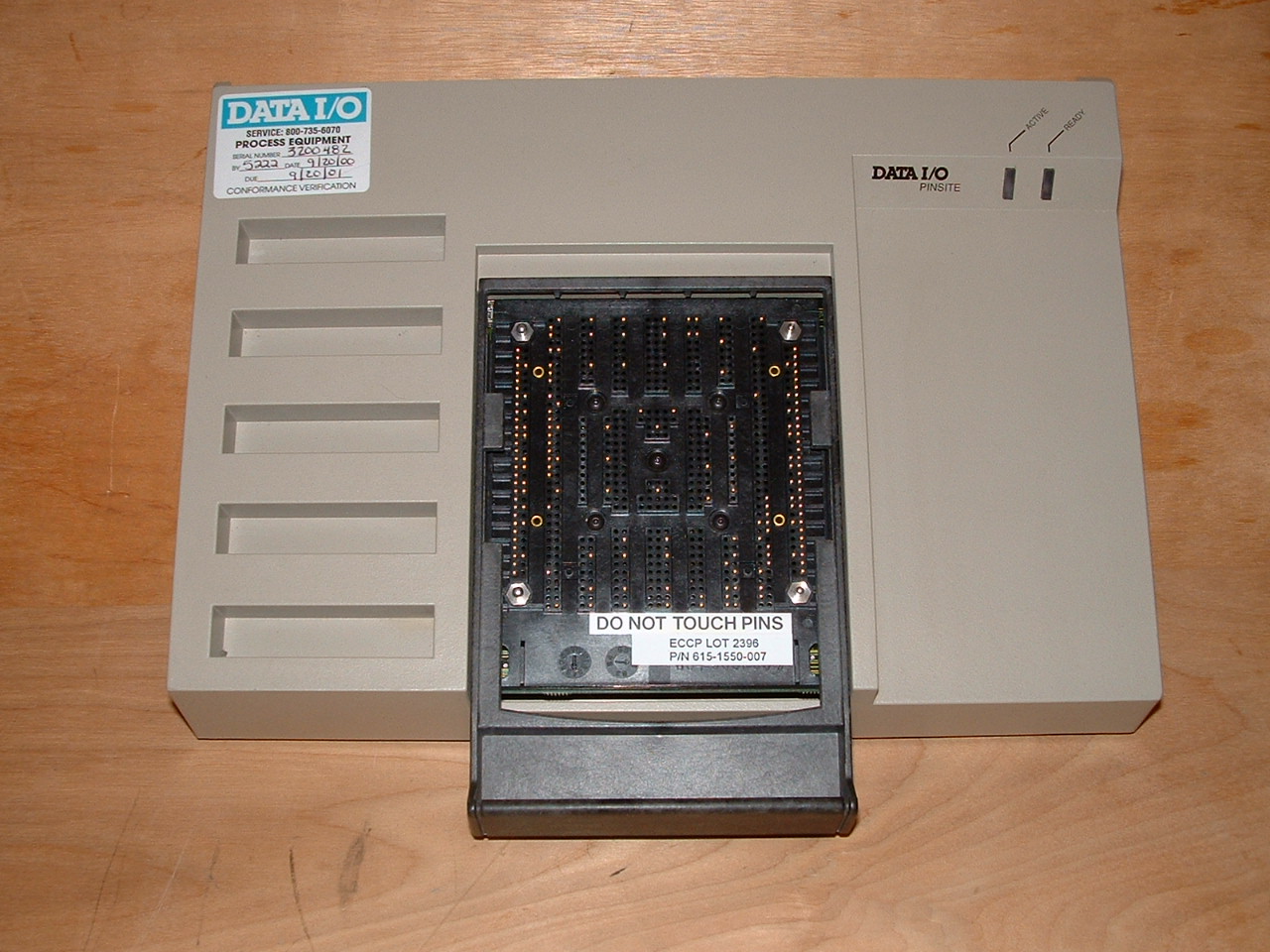

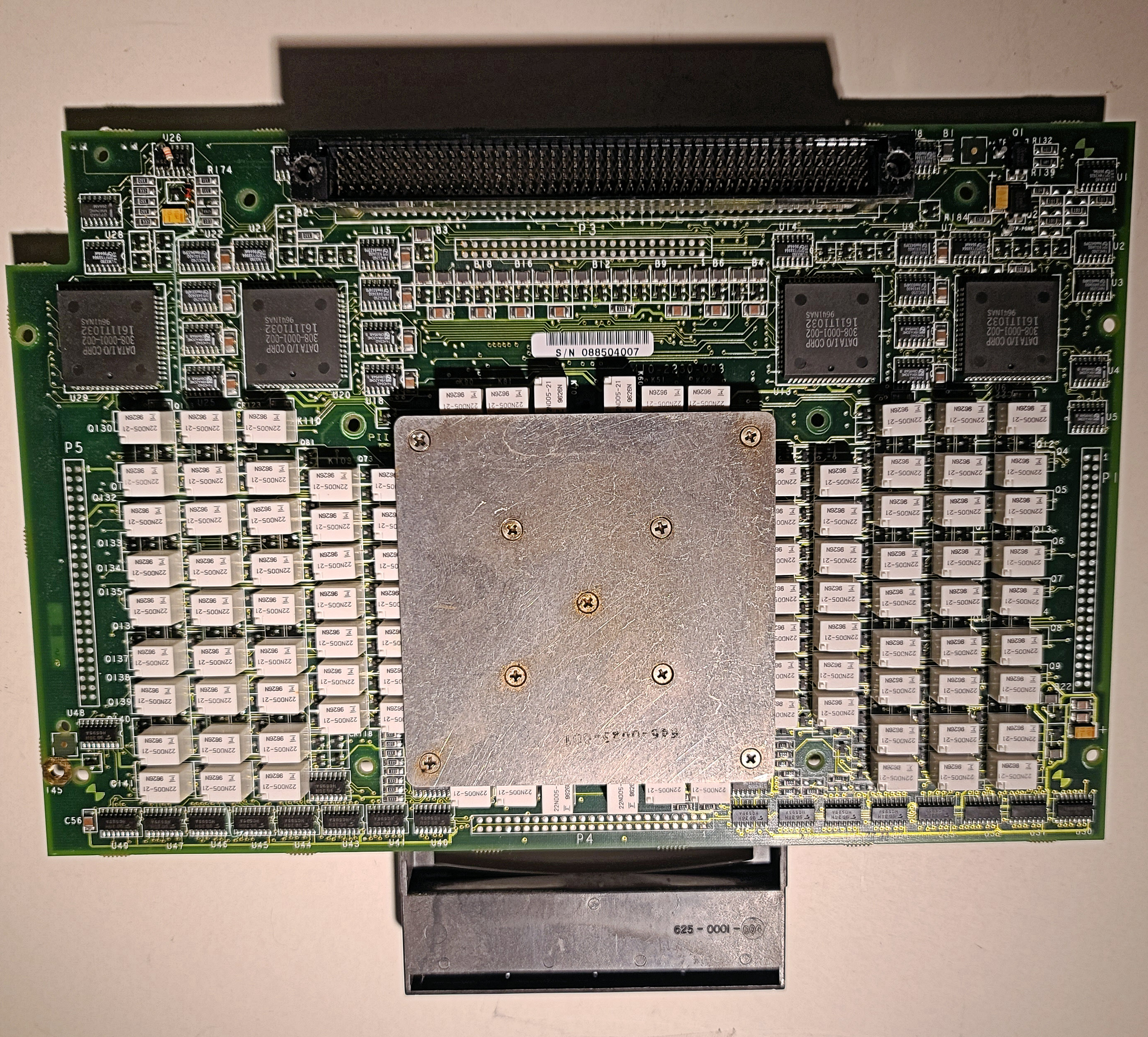

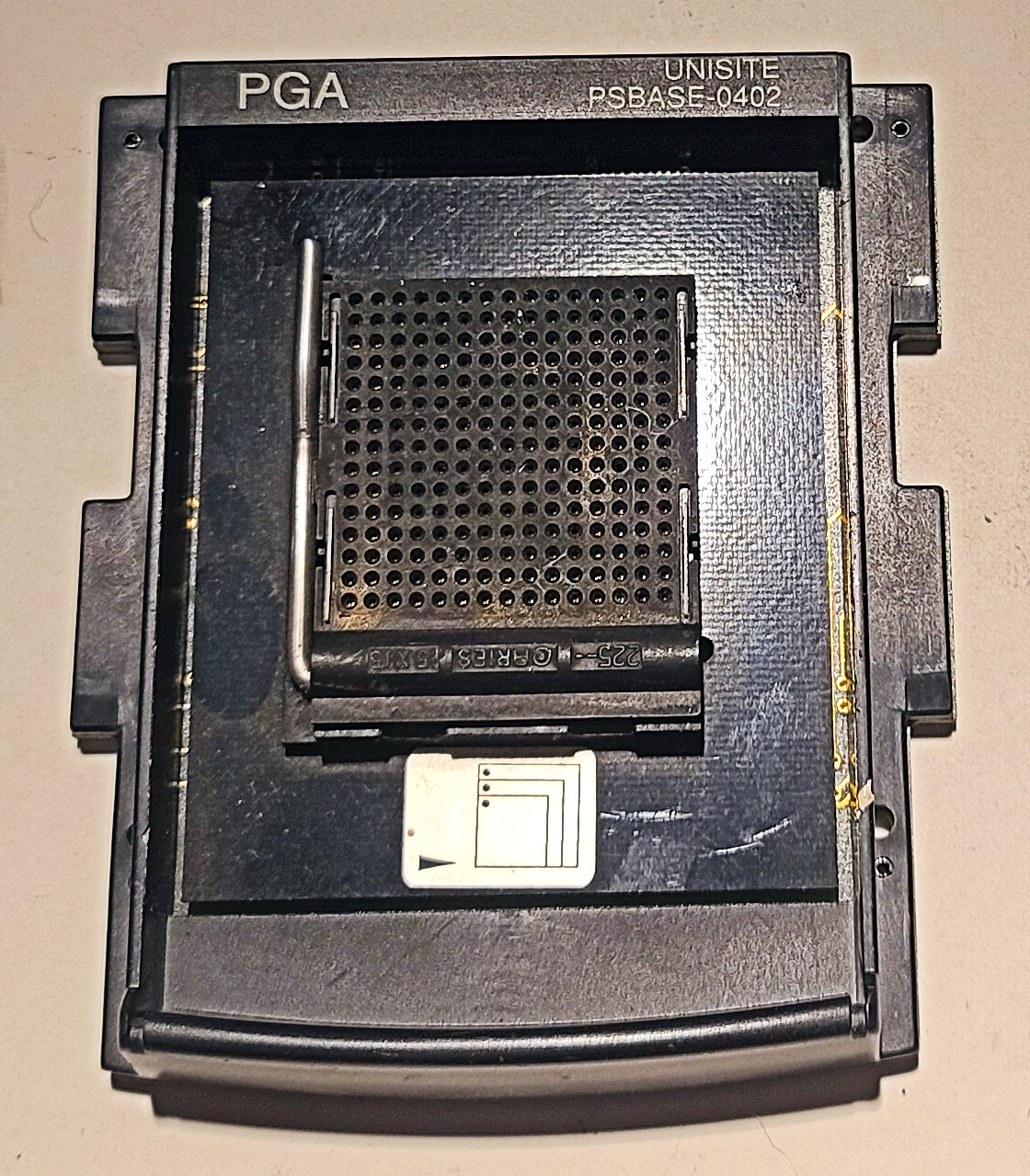

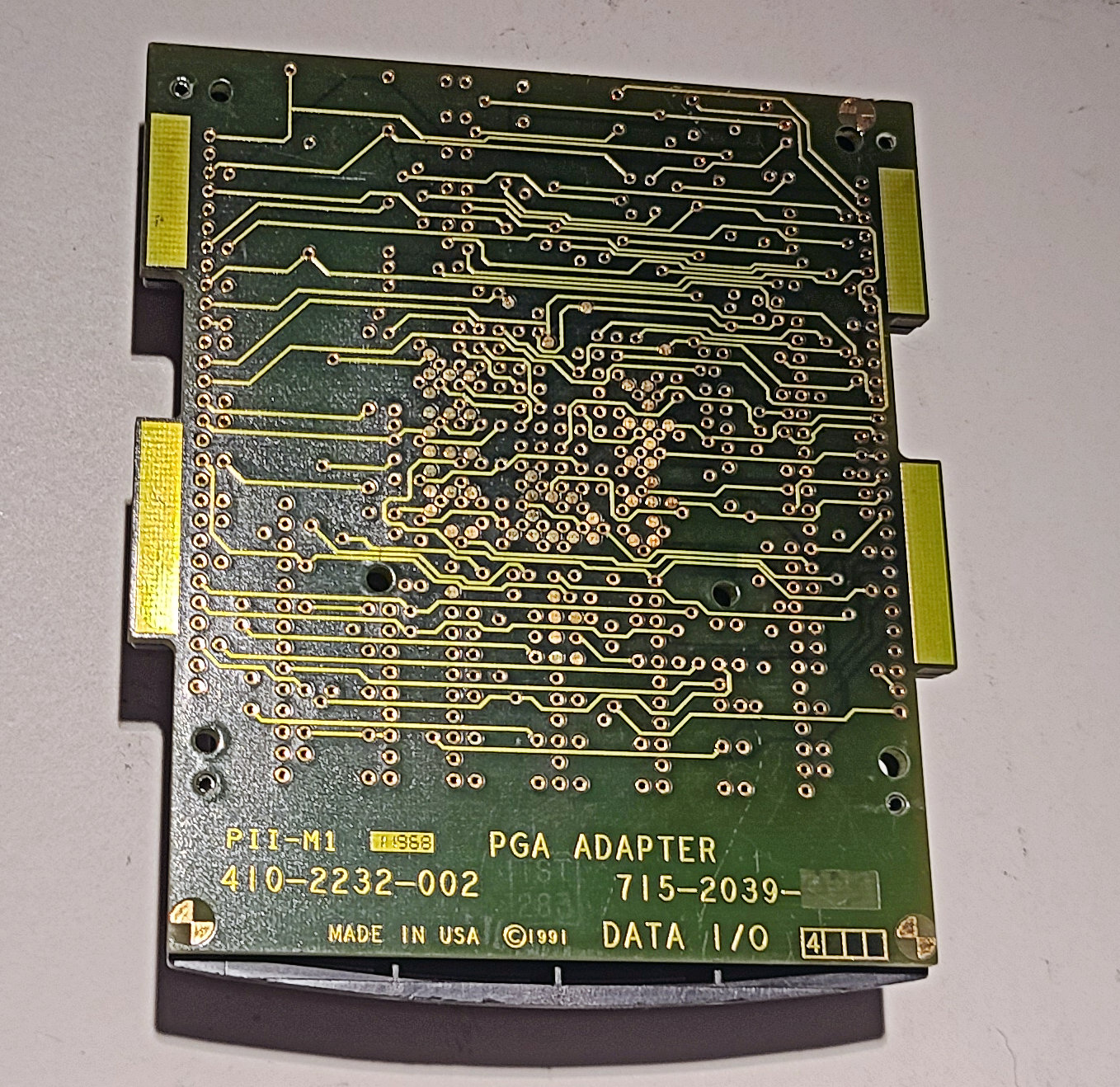

PinSite modulle is used with the PLCC, SOIC, PPI etc. adapters.

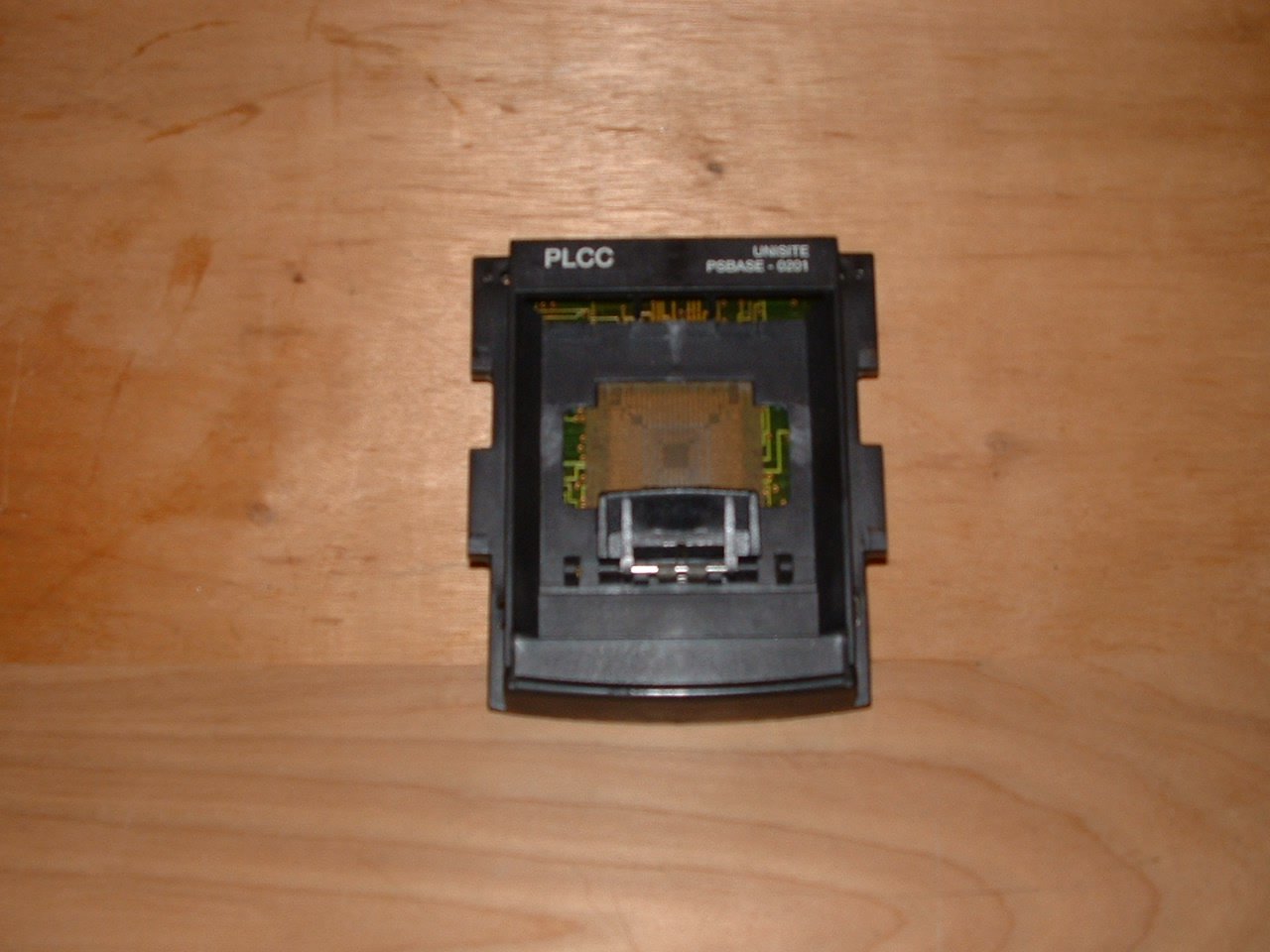

PLCC base

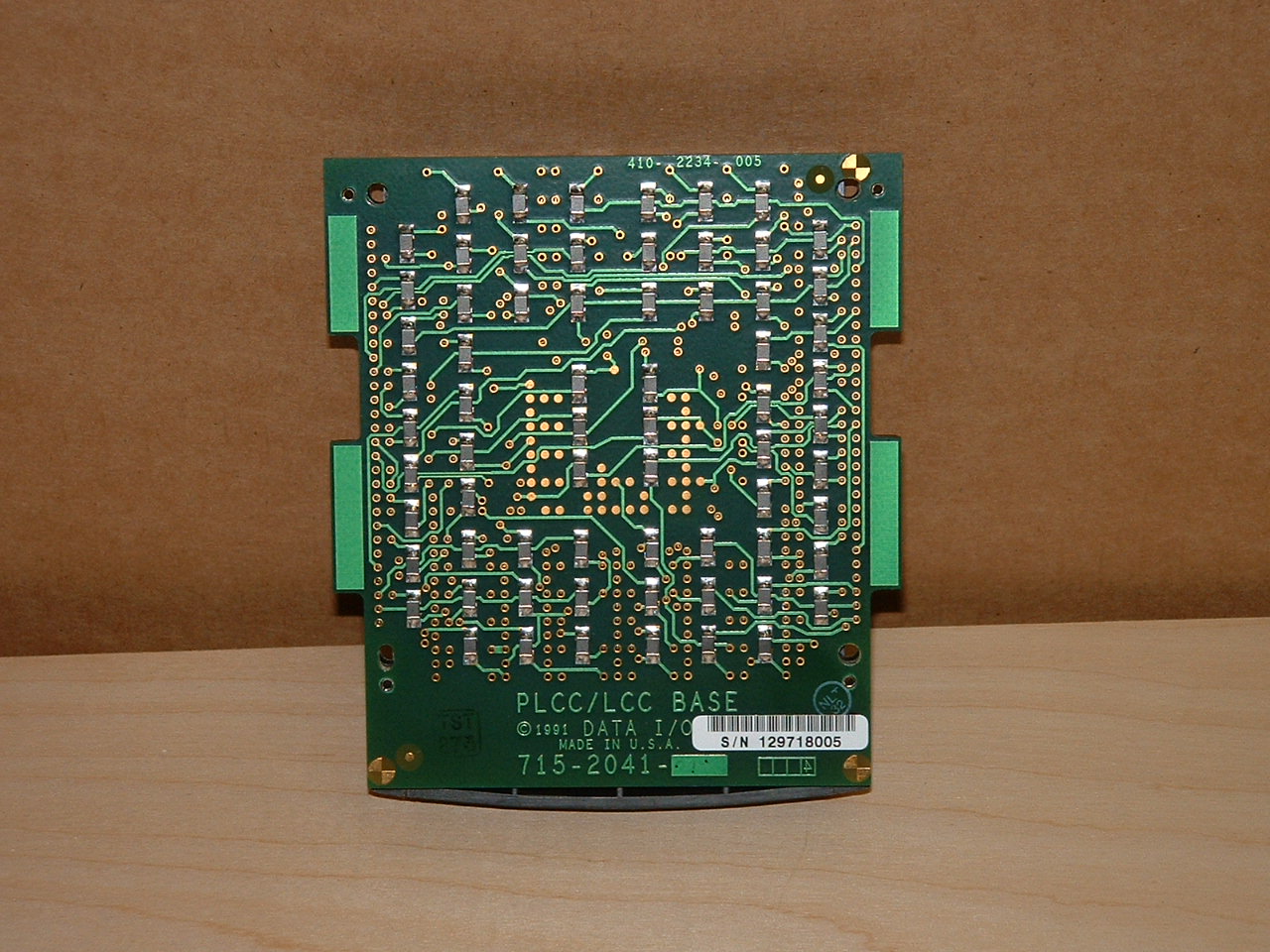

PLCC base backside

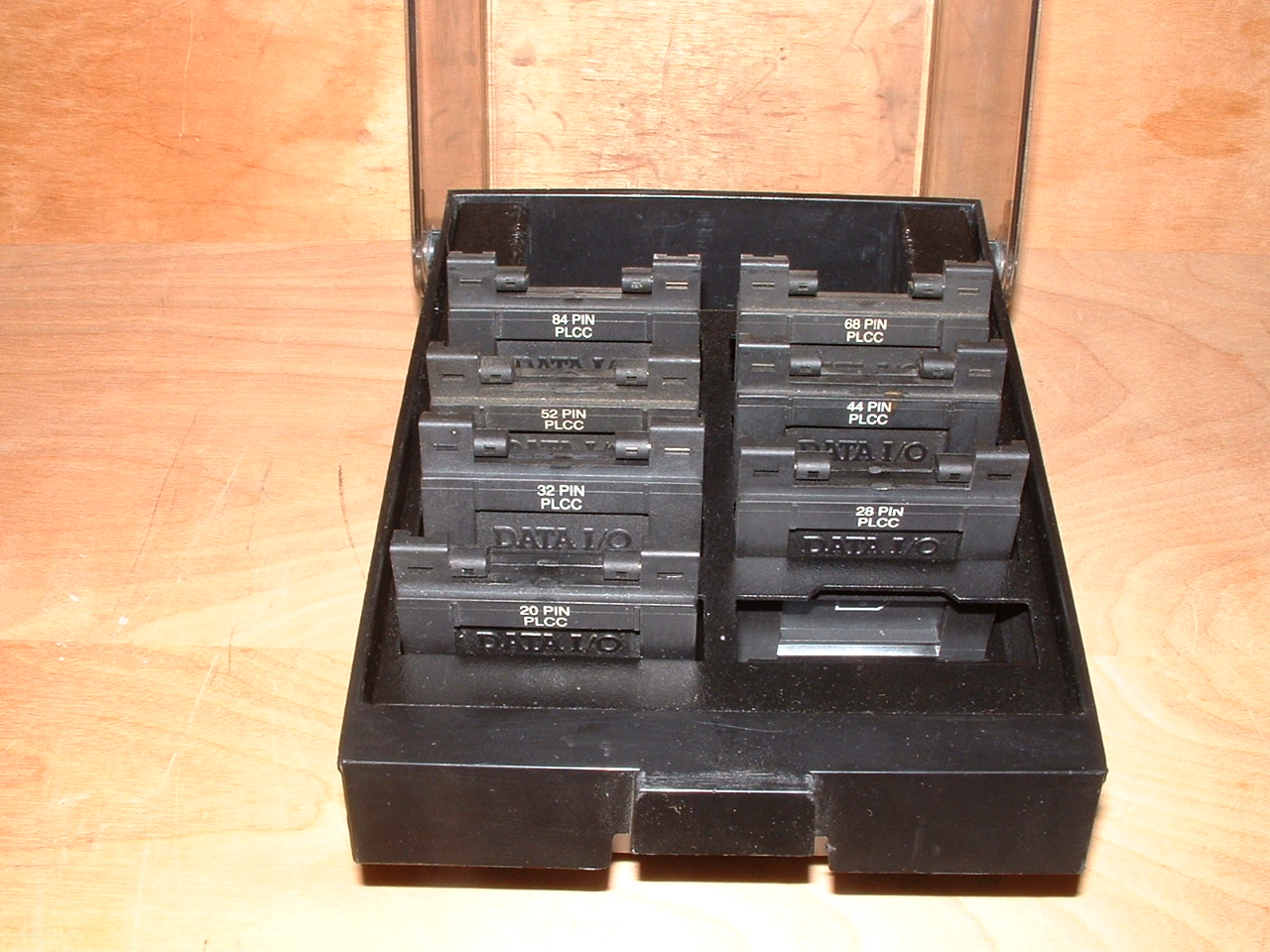

PLCC modules.

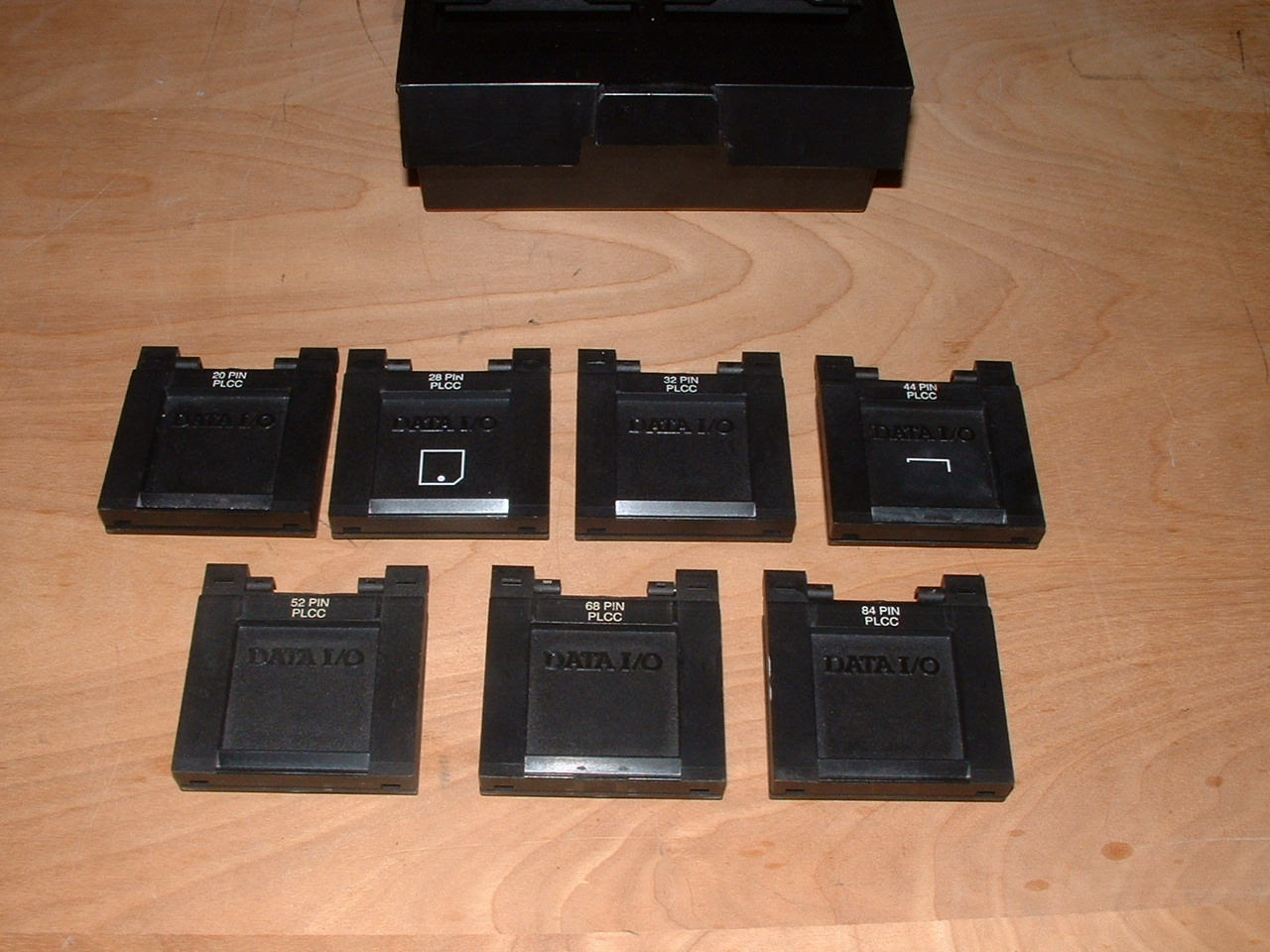

Individual PLCC modules available, all 7 of them.

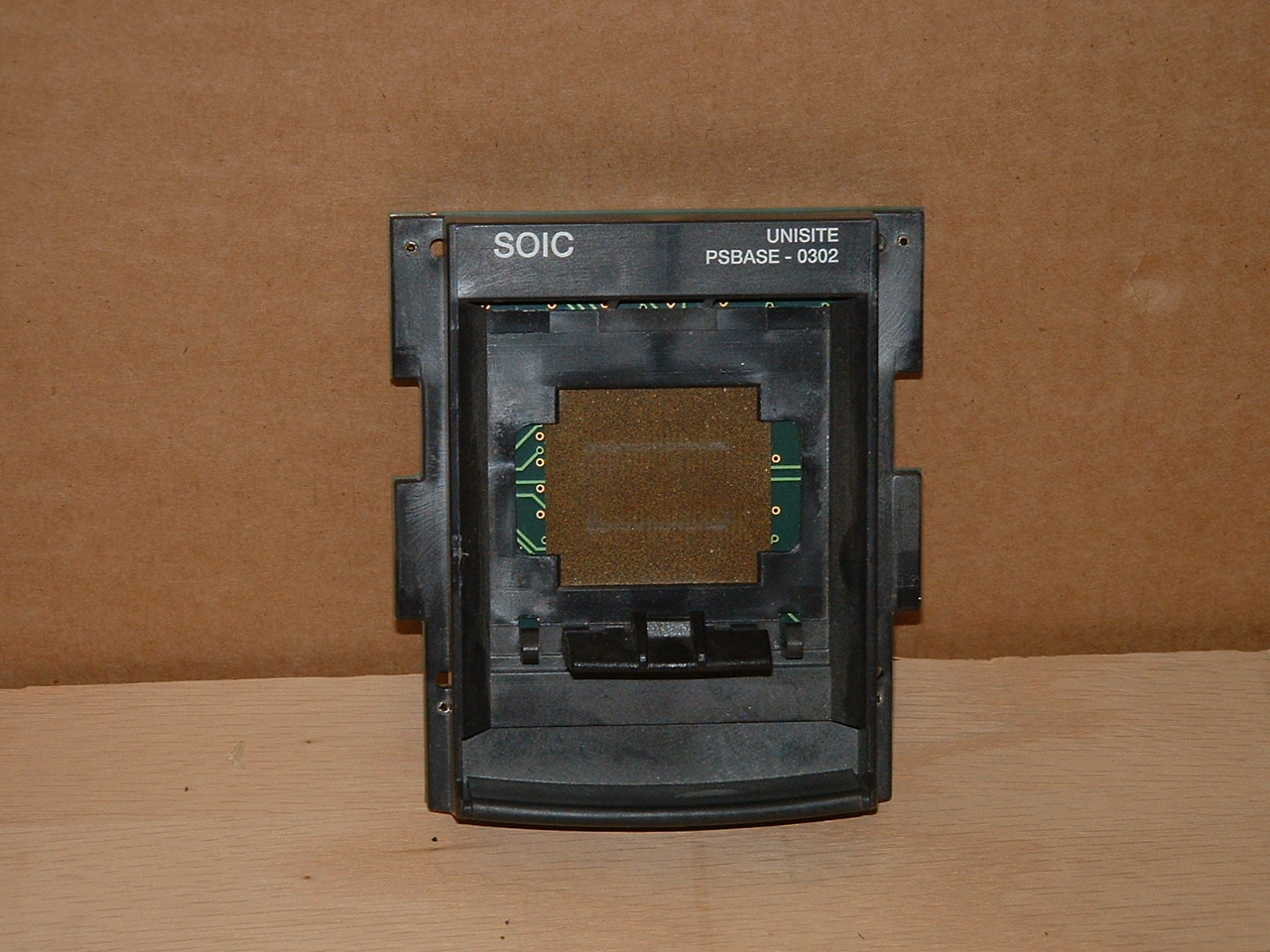

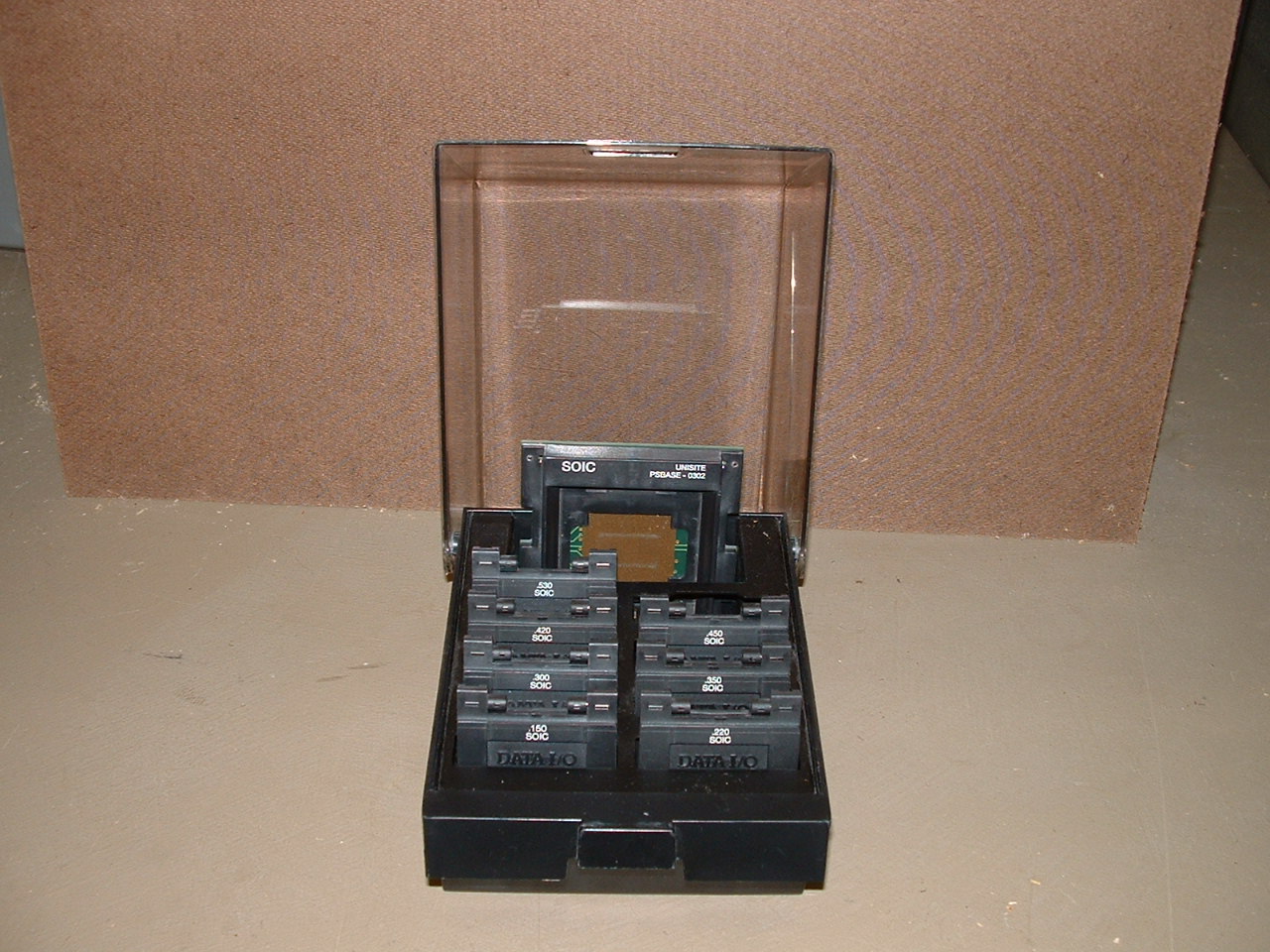

SOIC base

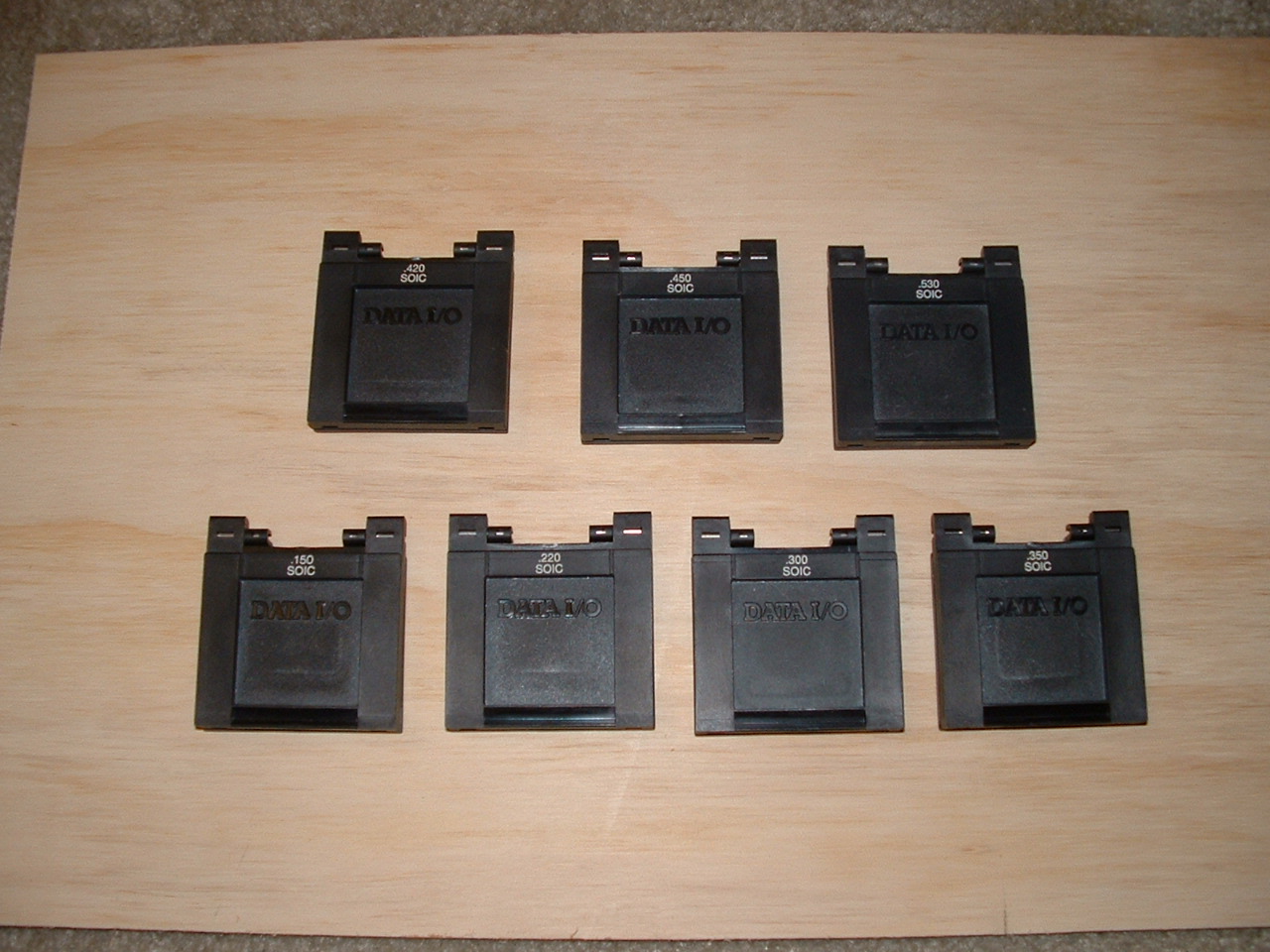

Individual SOIC modules available, all 7 of them.

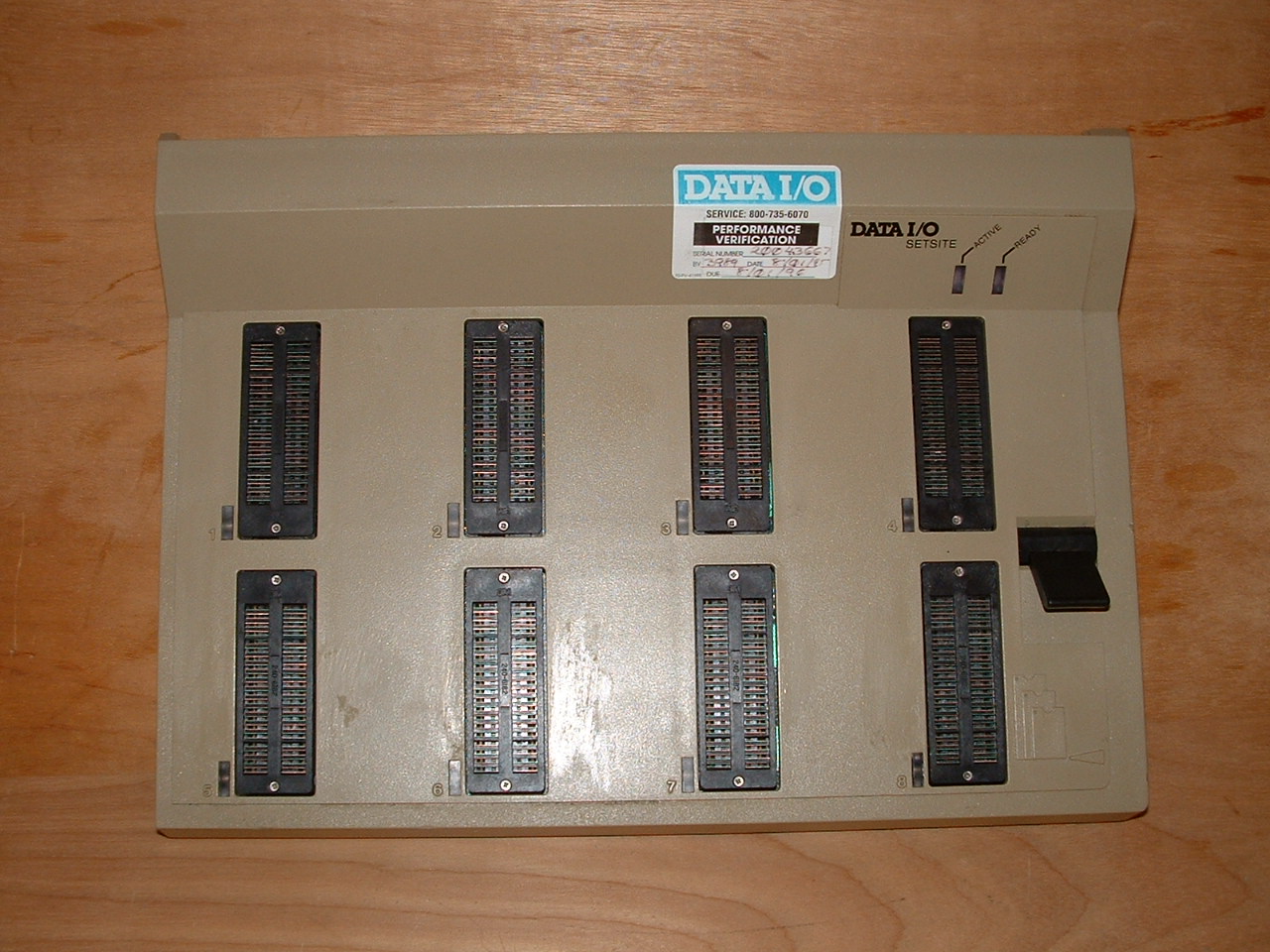

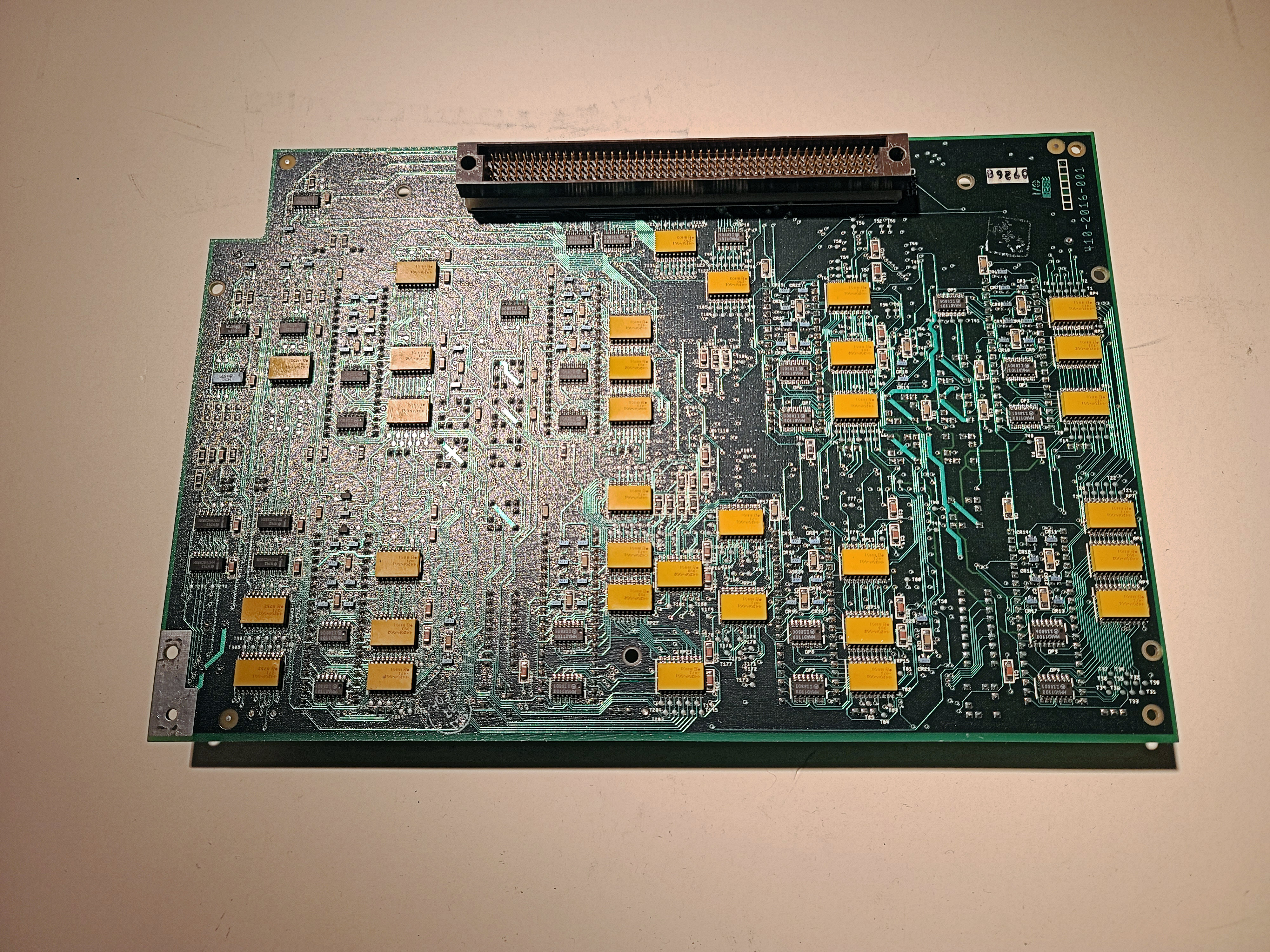

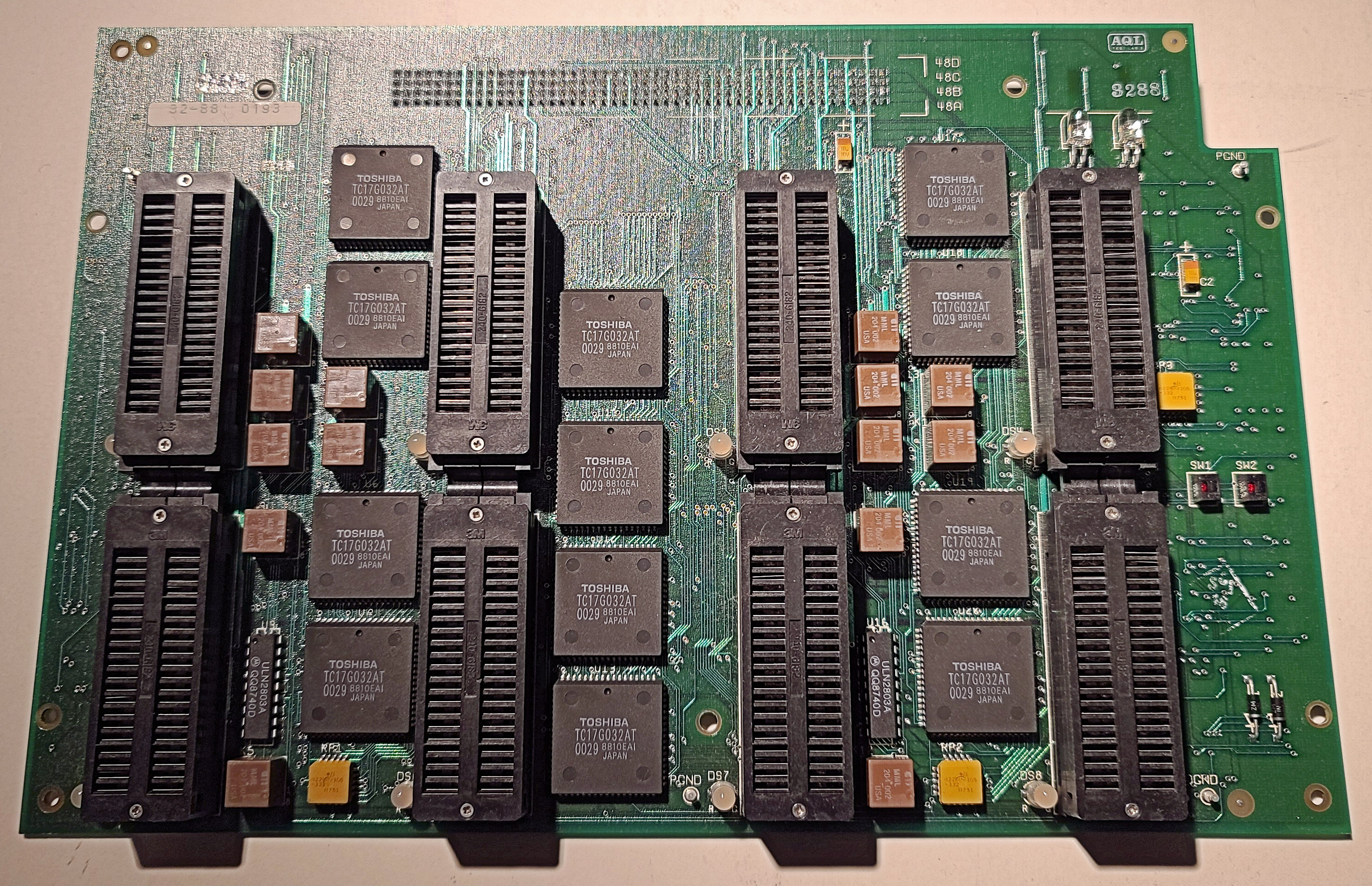

SetSite adapter.

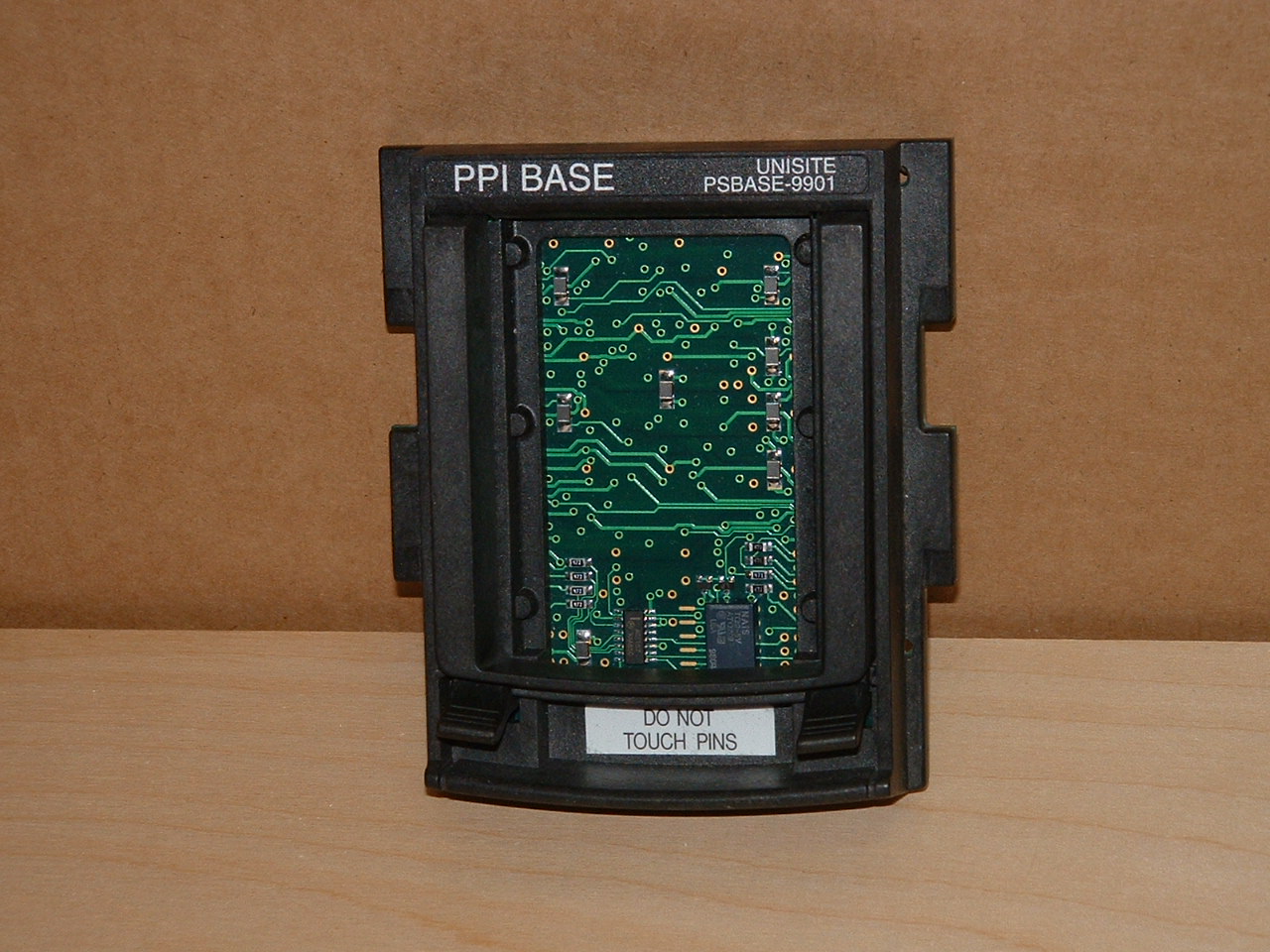

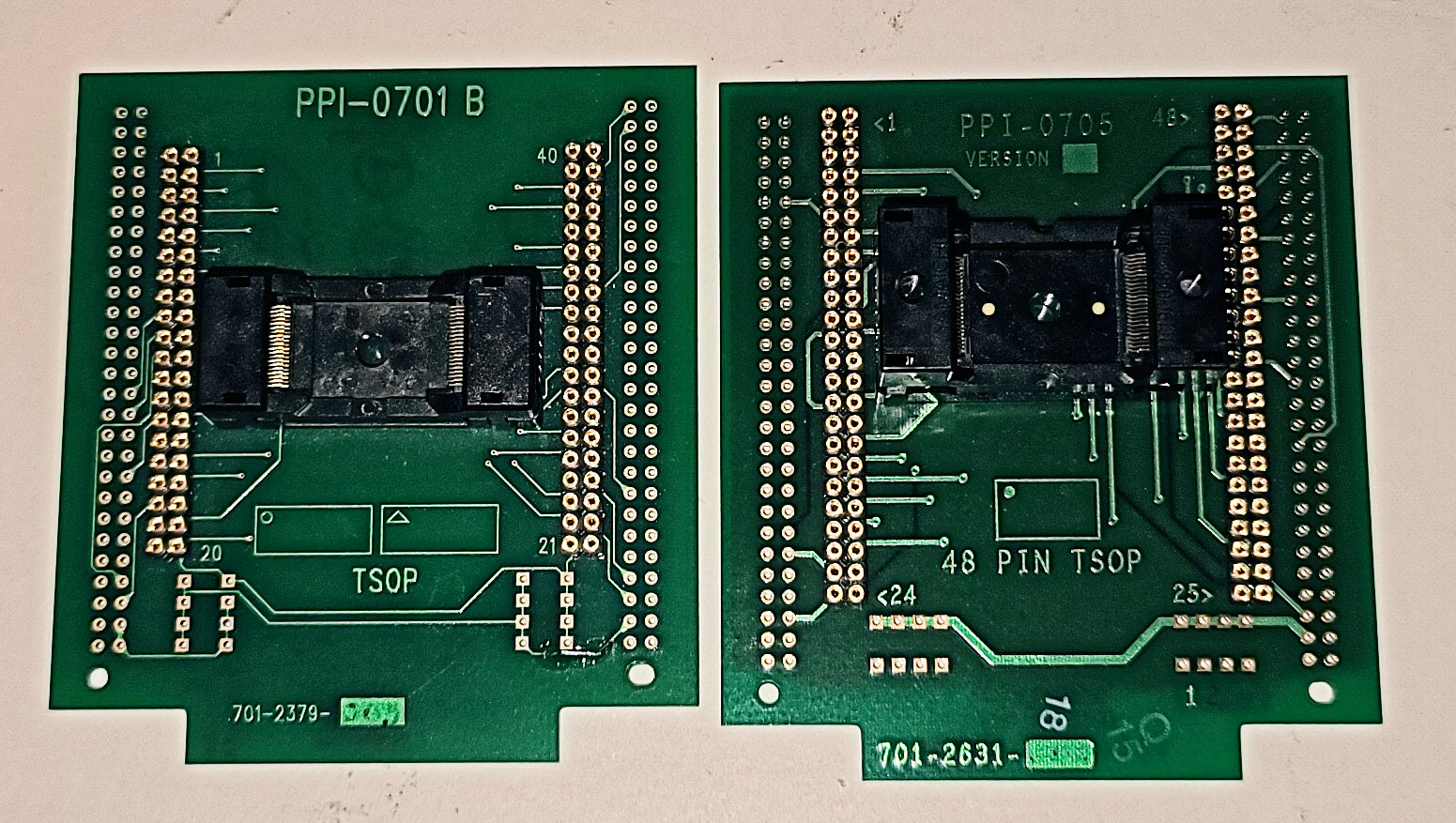

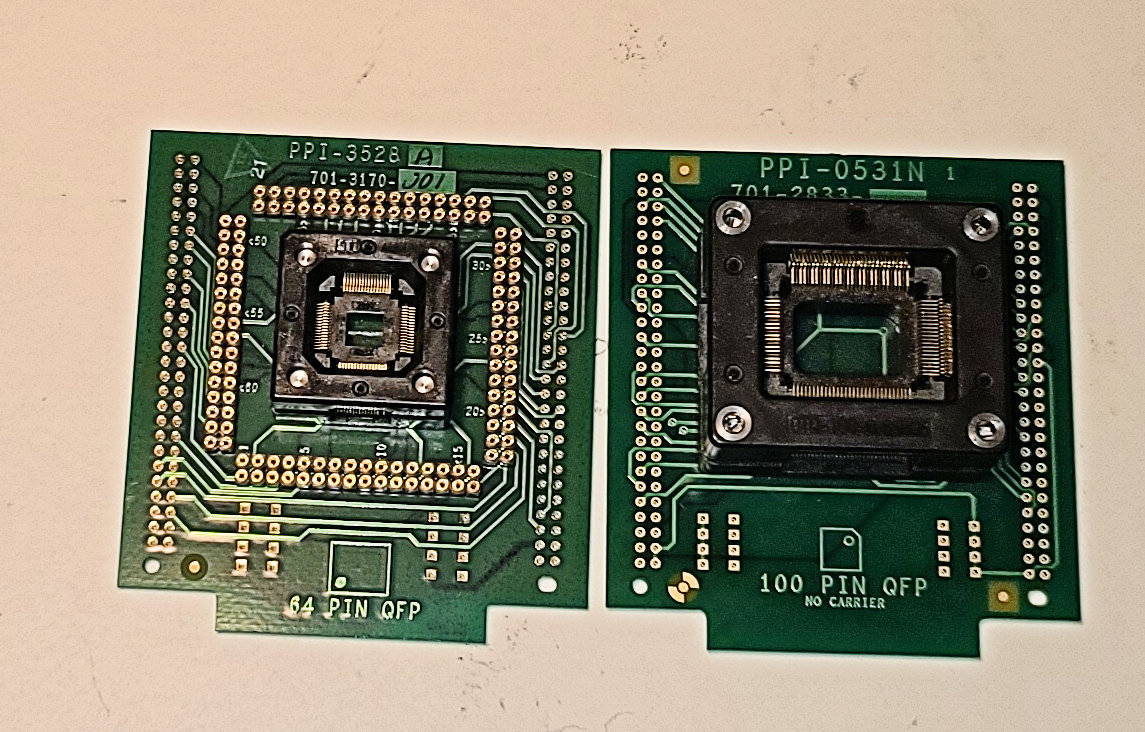

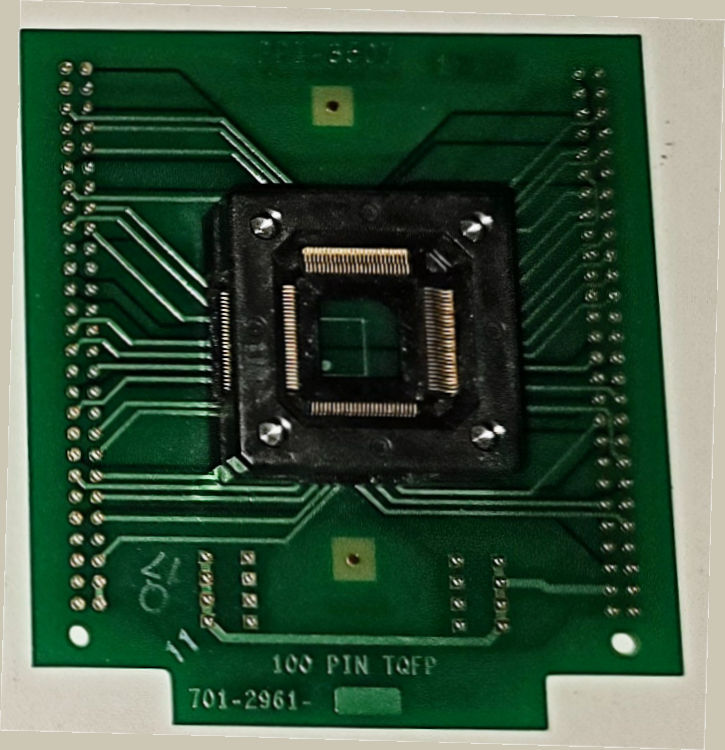

PPI adapter for use with UniSite PinSite module.

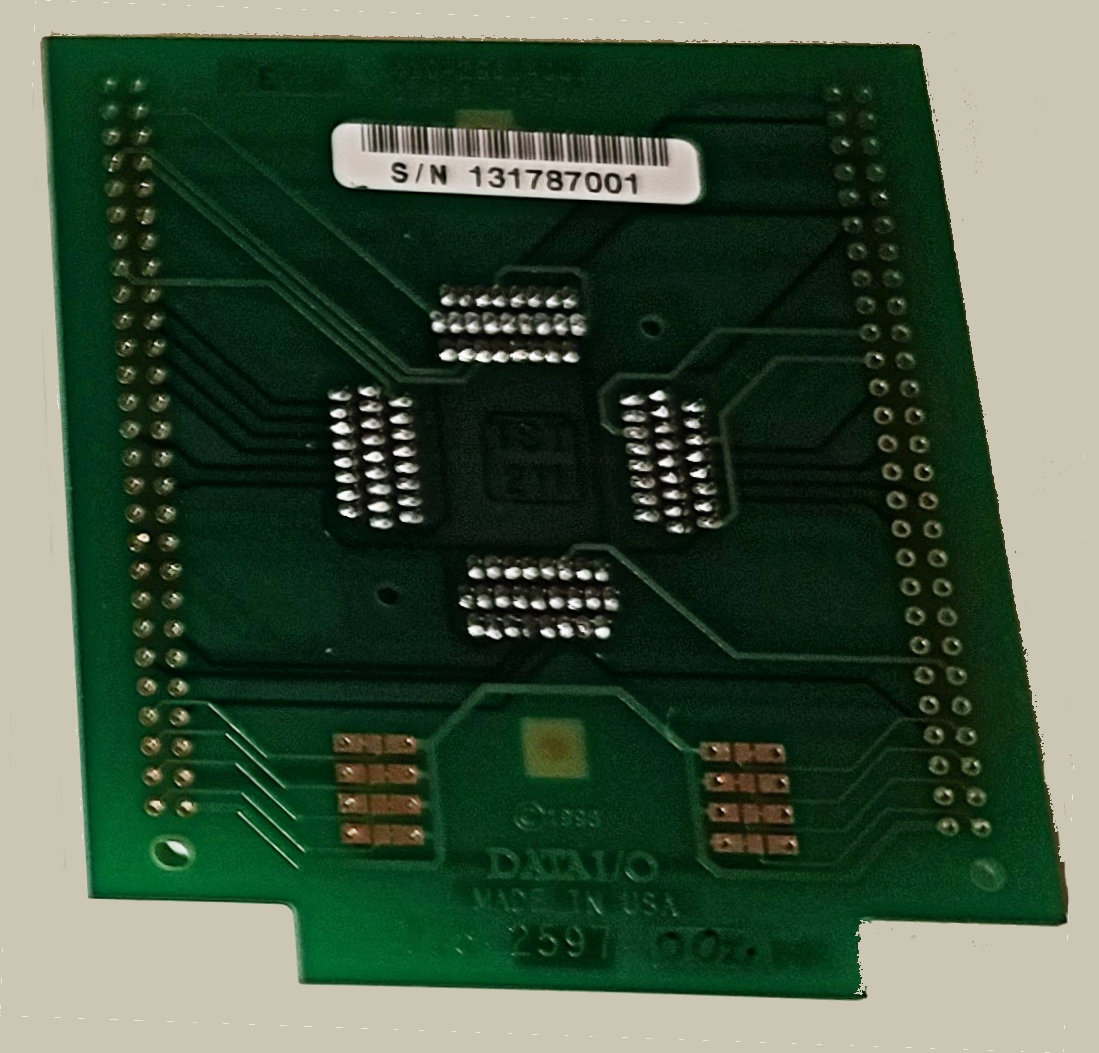

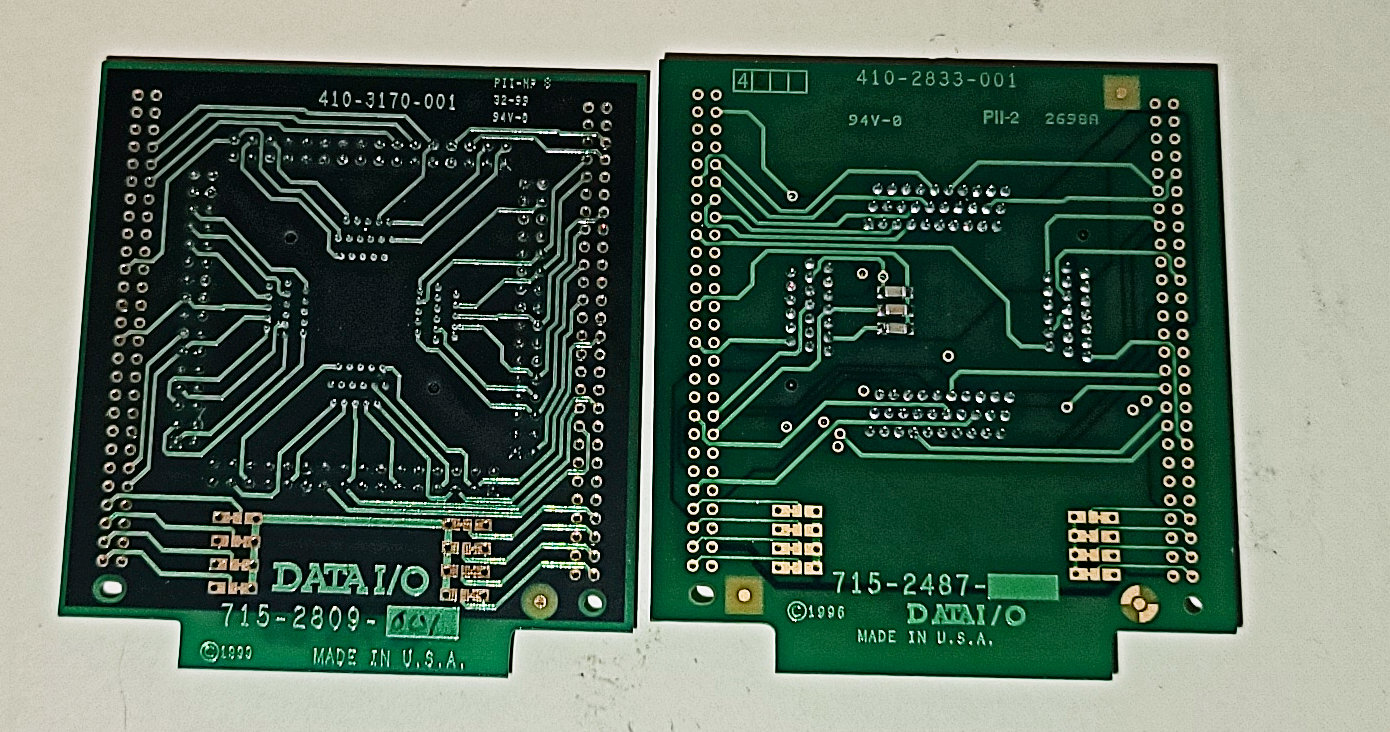

PPI adapter backside.

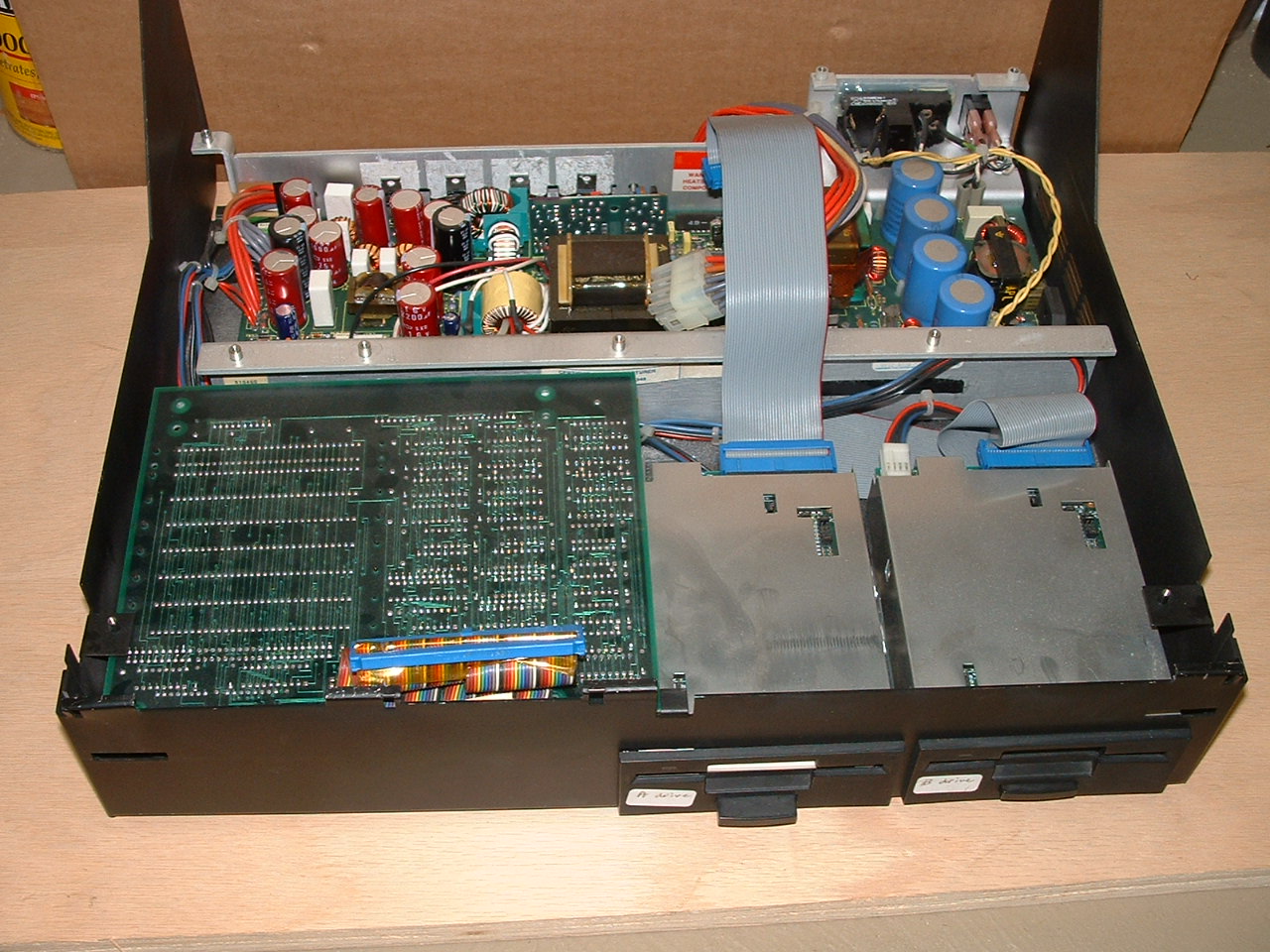

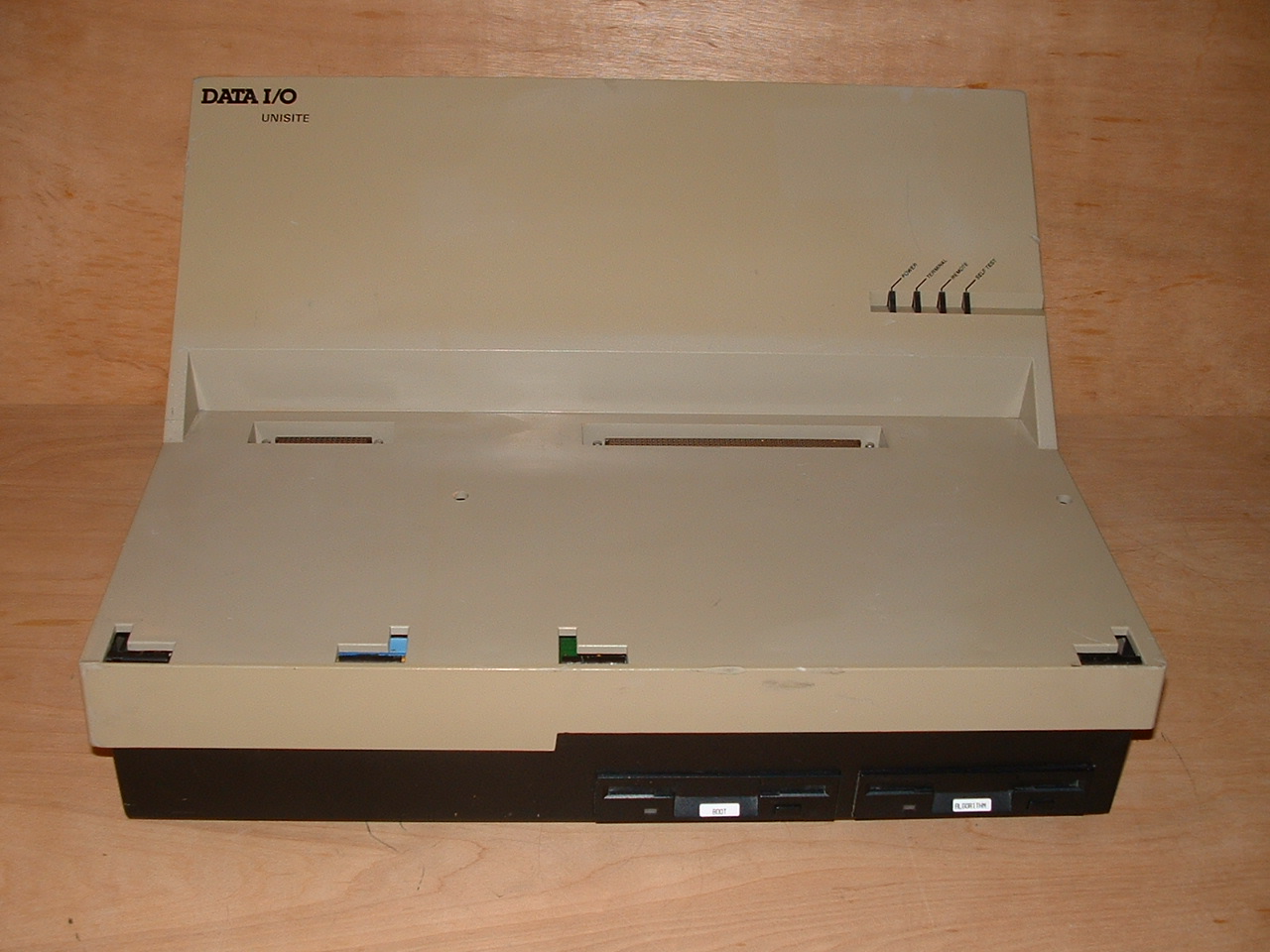

Older style UniSite, no MSM only memory expansion.

Old Style main board with memory soldered onto board, lower left.

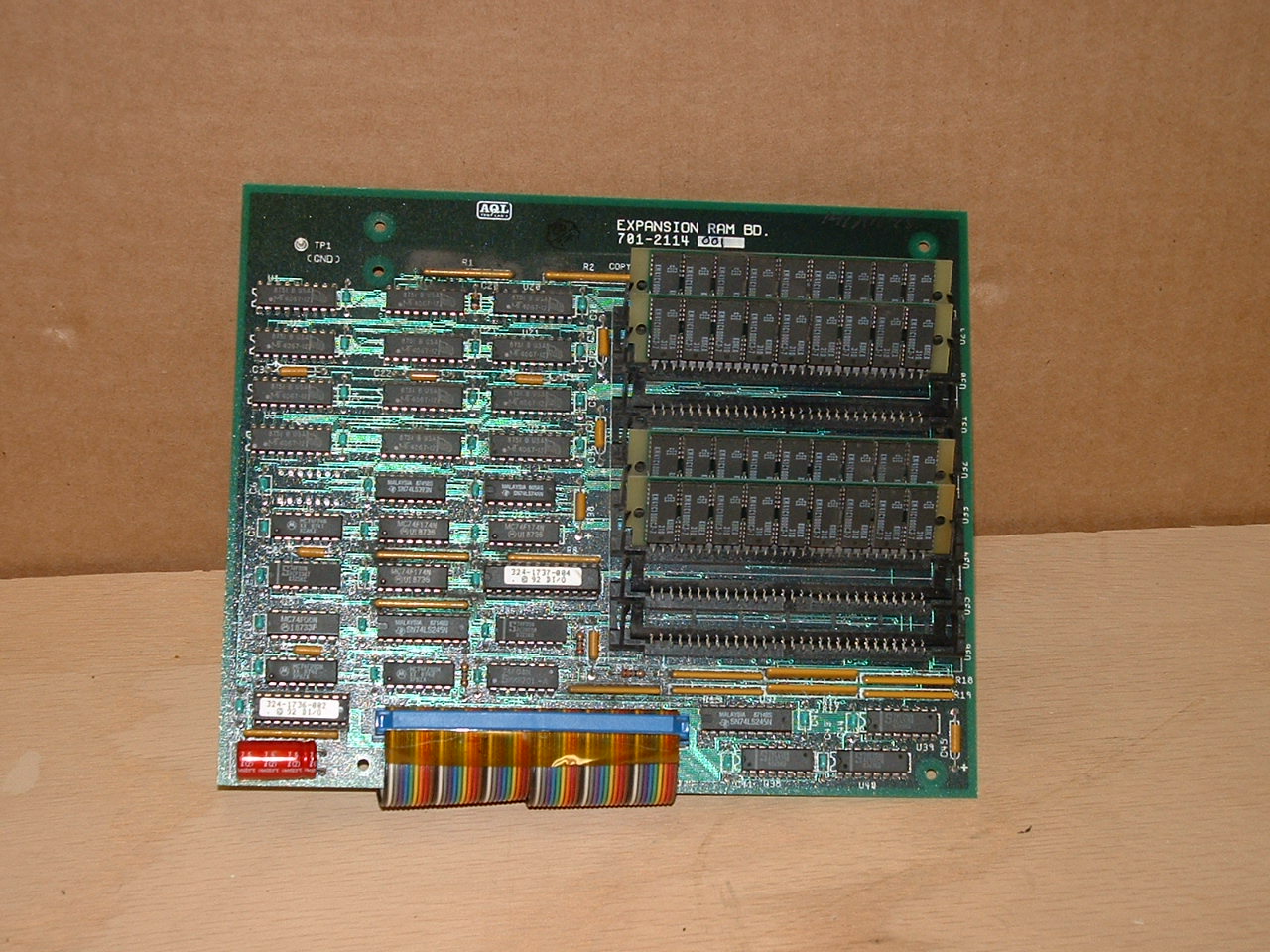

Memory expansion board.

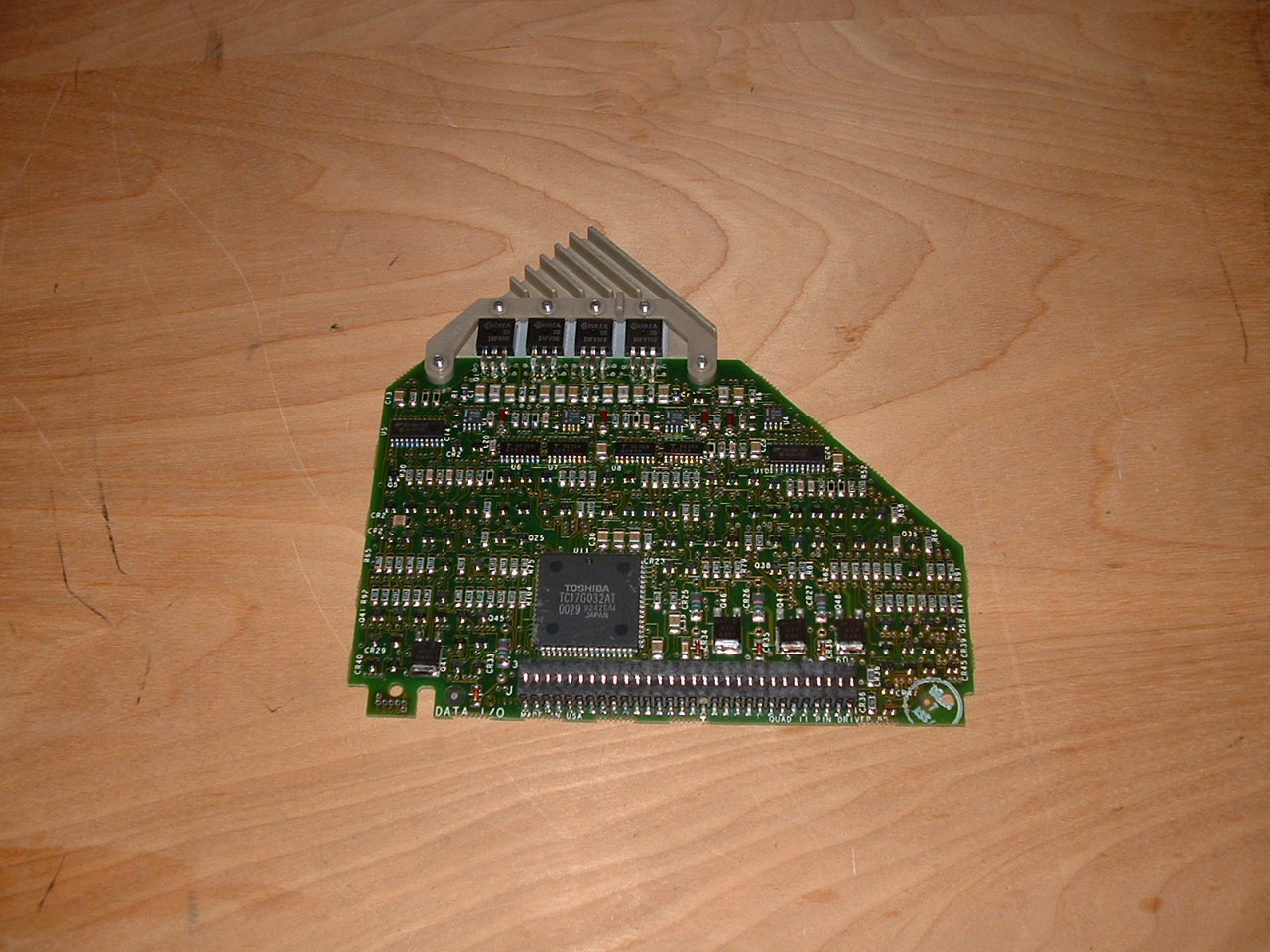

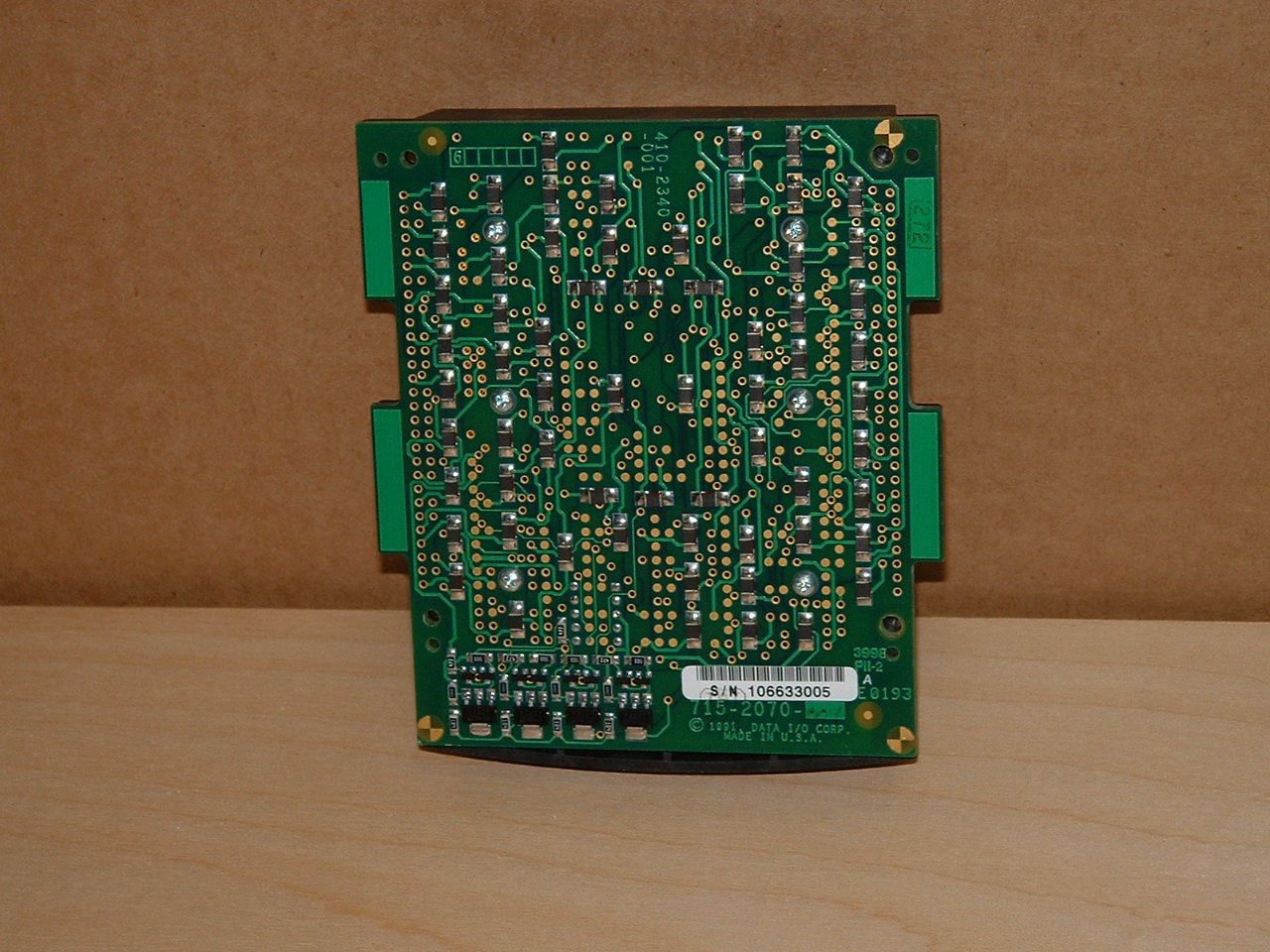

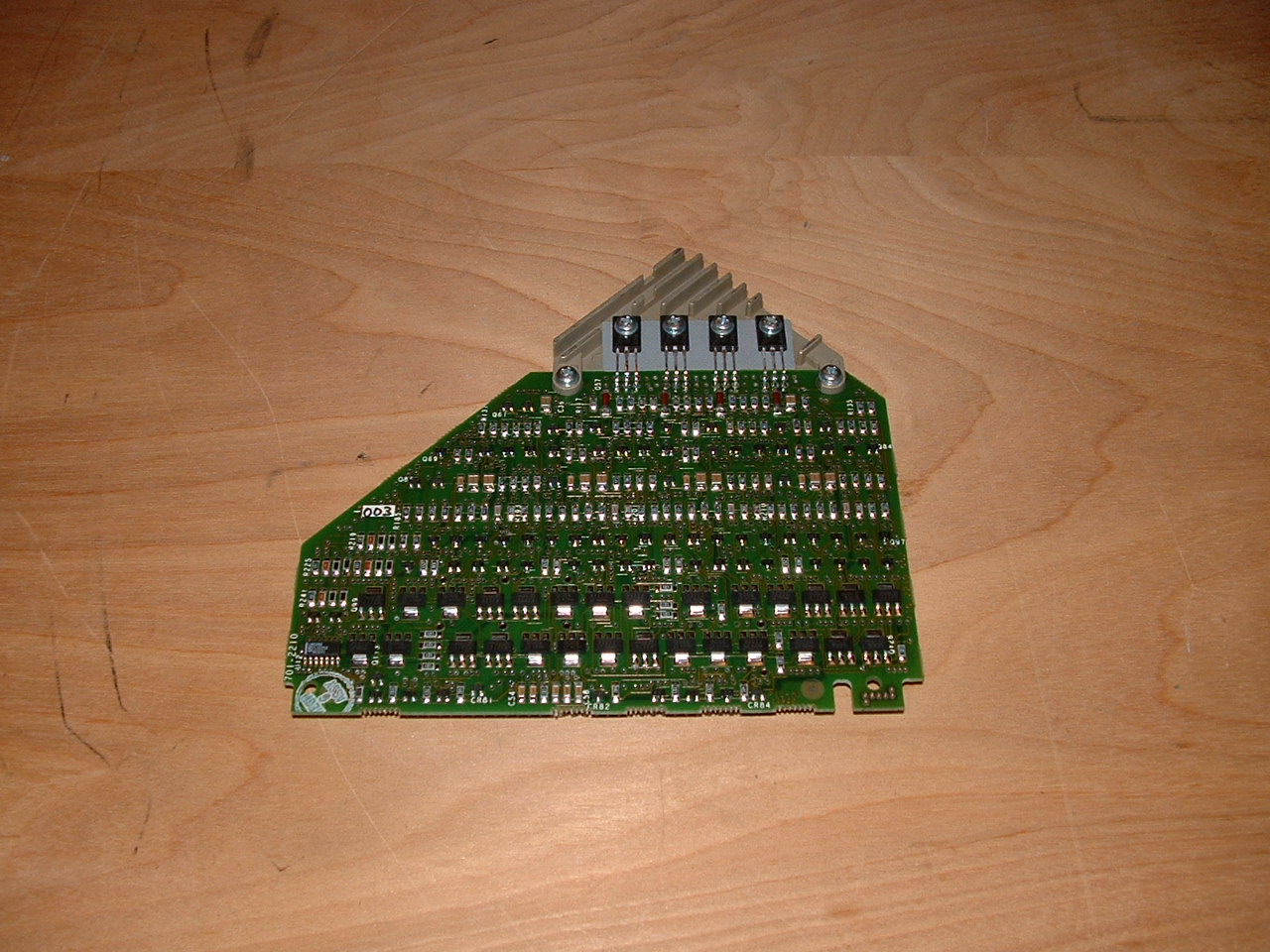

PinSite modules used with the PinSite adapter. There can be from 1 to 17 depending on your needs.




These units are frequently on eBay and may work, usually the seller knows nothing about it so they say for parts only.  They will say in the auction the Self-Test passes because the light stays on, WRONG!!  If it does not go out there may be a problem, if they did not have a boot disk in the drive then the self-test cannot continue and the light stays on. If the unit has a MSM the light should go out in a couple minutes.  Without the 17 PinSite modules and no adapters installed the self-test is about 10 seconds.  As you add PinSite modules the self-test takes longer.  With all 17 modules plus the Site 48 and PinSite adapter the self-test takes about 5 minutes booting from the floppy. If the unit does not have a hard disk then a floppy boot disk is required to complete the start-up and the self test light will go out. If the unit has a internal hard disk then the the self test light will go out after the self test without a boot disk. I use a standard USB to 25 pin 3 wire cable for serial and the HP parallel cable for the high speed port. I usually do a quick test of any Data I/O with my terminal just to see if it boots without errors. You must be in terminal mode to see test results, not Tasklink.

Data I/O used two revisions of logic boards in the UniSite series. The early revision, as present in programmers with revision codes -001 through - 011, did not support the hard drive option and required the memory expansion board to go beyond 1MB RAM. It is easily distinguished, in terms of visual inspection, by the fact that it does not have a pair of 30-pin SIMM sockets in the left front quadrant ('front' referenced to the front of the programmer, or close to the big 60-pin expansion connector if you're just looking at the board).

The later revision, present in programmers with revision codes of -012 through -016 and up, are much more useful. They will support the hard drive upgrade without further modification, and it is also easily expandable in terms of memory.

Most UniSites with the late-revision board will already have their max memory of 8MB installed, in the form of two 30-pin 4Mbit x 9 (parity is required) 70nS SIMMs. If you run across one that has less than this (some models only had 1 or 2MB) it can be upgraded by plugging in the requisite SIMMs, you also need to change out
U91 (a 22V10 PLD) so the Unisite will recognize the additional memory. Click on this link for the .JED file to recreate U91 for this application, it is in a ZIP file format.

If you have to go searching for memory, check at computer surplus places as well as on eBay, they do still turn up. You should attempt to get the types of SIMMs which use nine discrete chips, as opposed to the three-chip models, something to do with refresh timing. Check with me I probably have them in my stash of old computer memory.

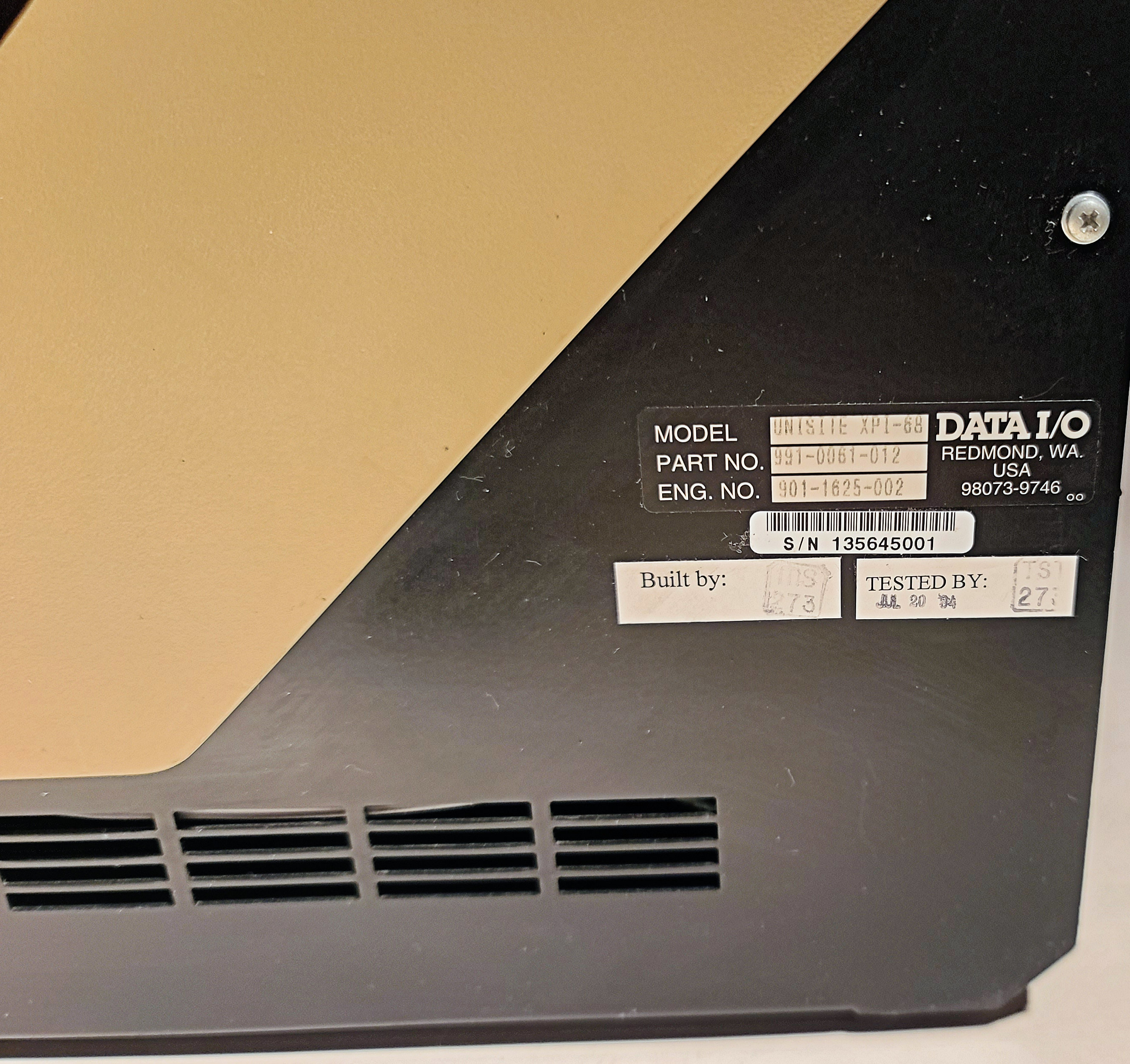

You should always go by the programmer's PART number. This has been pretty consistently in the format of 901-0058-0xx, where the two digits at xx are the revision level. If an eBay seller has one you're interested in, and their listing photos do not include a readable image of the manufacturing label, always ask them to send you the actual part number before you buy, and explain the format to them as described above.

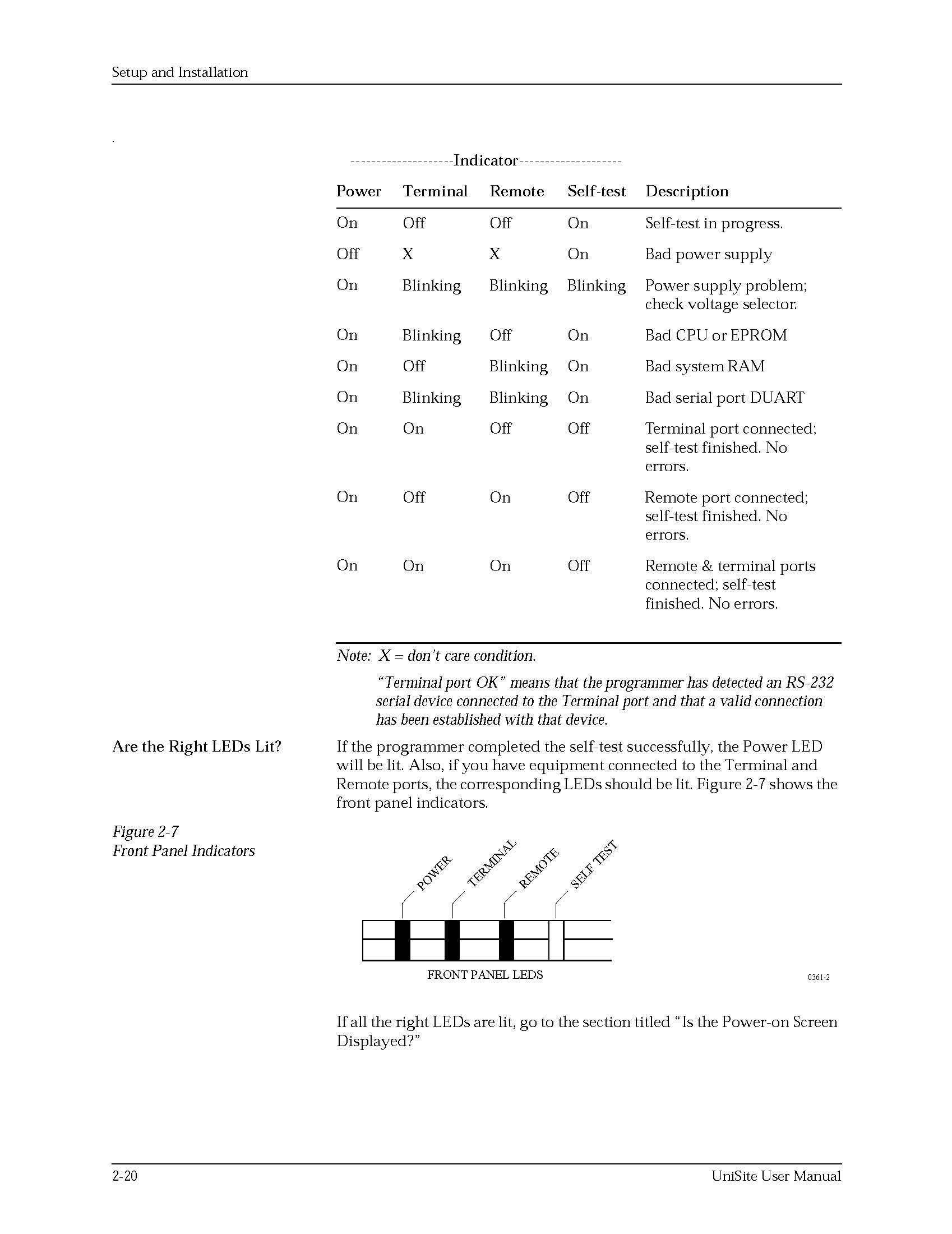

NOTE: UniSite manual page 2-20 has a listing of LED conditions and their results. Once again if the self test does not turn off the unit is defective and possibly the OS!!

Check this link for additional information on eBay
Bruce is very knowledgeable and his site has a lot of info.
ftp dot bluefeathertech dot com

If downloading a UniSite manual I would recommend the XPi version although larger it is more complete. There is very little difference between the the standard UniSite and the XPi version. The only real difference is a version 014 or later board, MSM and a parallel port all other functions are the same.

Please see the last 2 PDF files they will explain how to add a parallel port to your UniSite if it has an MSM module (hard disk). These files plus much of the above information was provided by a UniSite user and more of an expert than I am.

I reccently purchased 2 UniSite models listed as for parts only, One was a UniSite with MSM and the other was a UniSite Xpi-68. From their description I knew the first one was working because it stated the self-test light went out after a couple minutes. The second was a really nice looking Xpi and I thought I would update using the chassis with the parallel port but it turned out to be working. In both cases I made a offer and they were accepted, now I have a backup.

If you see a UniSite 6800 or UniSite Xpi-68 listed, they contain all 17 pin driver cards and the MSM with 8 megs of memory, the Xpi just adds the parallel port and a nicer case logo.



bullet UniSite users manual    3.22 megs (April 98, 981-0014-015)
bullet UniSite XPi users manual    7.2 megs (June 2001, 981-0014-016)
bullet UniSite maintenance manual revision 011 and lower    7.67 megs (January 1987, 972-0014)
bullet UniSite maintenance manual revision revision 12 included 1.1 megs (June 1991, 972-0014-003) schematics are seperate.
bullet UniSite controller board schematics new version revision 12 and higher 2.67 megs (April1991, 30-701-2313)    Cleaned up
bullet UniSite waveform generator schematic 976Kb (April 1991) Cleaned up
bulletExpansion Ram board    658 KB
bulletSite_20_40_48 schematic    329 KB
bulletUniSite Schematics newer controller board        2.72 megs
bulletWaveform Generator Schematics    966 KB
bullet Universal package system    634 KB    a brochure explaining different adapters for the UniSite.
bullet UniSite device list Excel file    3.18 megs
bullet GangPak device list    260 KB (part number 984-0004-005)
bullet Footnote PDF file for the above device list    363 KB
bullet PinSite user manual    952 KB (part number 981-0083-003)
bulletPinSite relay board    1.63 megs
bullet SetSite users manual    3.15 megs (part number 981-0230-002)
bulletSetSite schematics    1.24 megs
bullet SOIC Base users manual    507 KB (part number 096-0121-003)
bullet PPI Base users manual    981 KB (part number 096-0127-002)
bullet PPI Base customer service letter    116 KB (part number 983-0601-001)
bulletChipSite schematics    308 KB
bullet Conductive pad replacement    400 KB
bullet TaskLink 3.0    3.95 megs unzip to a folder and burn a CD.  Use 00000 for serial number.
bullet TaskLink 3.10 update 4.26 megs Full version
bullet TaskLink 4.3    27megs unzip to a folder and burn a CD
bullet Data I/O device update WEB site.
bullet UniSite XPi modification document    1.5 megs Upgrade a UniSite to an XPi.
bullet DIO_MSM_Parallel port    20 KB    Written and contributed by a UniSite user.
bullet UniSite Boot files/System files    408 KB Version 6.50 copy to a single density 3.5" floppy for a boot system
bulletUniSite_XPi_Upgrade_Guide    1.30 megs
bullet720K_Floppy_Mod    1.29 megs
bulletMSM_Installation_Guide    598K
bulletMSM_schematic    279K
