Processor Module

Dell™ Studio 1535/1536/1537 Service Manual


Removing the Processor Module

CAUTION: Before you begin the following procedure, follow the safety instructions that shipped with your computer.
  1. Follow the instructions in Before You Begin.

  2. Remove the processor thermal-cooling assembly (see Removing the Processor Thermal-Cooling Assembly).

NOTICE: To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.
  1. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.

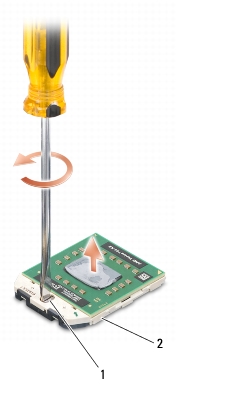

1

ZIF-socket cam screw

2

ZIF socket

NOTICE: To ensure maximum cooling for the processor, do not touch the heat transfer areas on the processor thermal-cooling assembly. The oils in your skin can reduce the heat transfer capability of the thermal pads.
NOTICE: When removing the processor module, pull the module straight up. Be careful not to bend the pins on the processor module.
  1. Lift the processor module from the ZIF socket.

Replacing the Processor Module

CAUTION: Before you begin the following procedure, follow the safety instructions that shipped with your computer.
NOTICE: Do not touch the processor die. Press and hold the processor down on the substrate on which the die is mounted while turning the cam screw to prevent intermittent contact between the cam screw and processor.
NOTICE: Ensure that the cam lock is in the fully open position before seating the processor module. Seating the processor module properly in the ZIF socket does not require force. A processor module that is not properly seated can result in an intermittent connection or permanent damage to the microprocessor and ZIF socket.
NOTE: If a new processor is installed, you will receive a new thermal-cooling assembly, which will include an affixed thermal pad, or you will receive a new thermal pad along with documentation to illustrate proper installation.
  1. Follow the instructions in Before You Begin.

  2. Align the pin-1 corner of the processor module with the pin-1 corner of the ZIF socket, then insert the processor module.

NOTE: The pin-1 corner of the processor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.

When the processor module is properly seated, all four corners are aligned at the same height. If one or more corners of the module are higher than the others, the module is not seated properly.

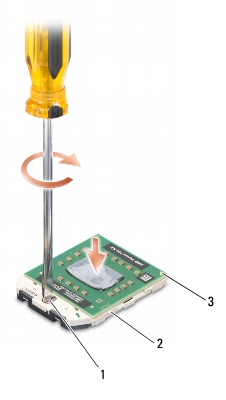

1

ZIF-socket cam screw

2

ZIF socket

3

pin-1 corner





NOTICE: To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.
  1. Tighten the ZIF socket by turning the cam screw clockwise to secure the processor module to the system board.

  2. Replace the processor thermal-cooling assembly (see Replacing the Processor Thermal-Cooling Assembly).

  3. Replace the base cover (see Replacing the Base Cover).
