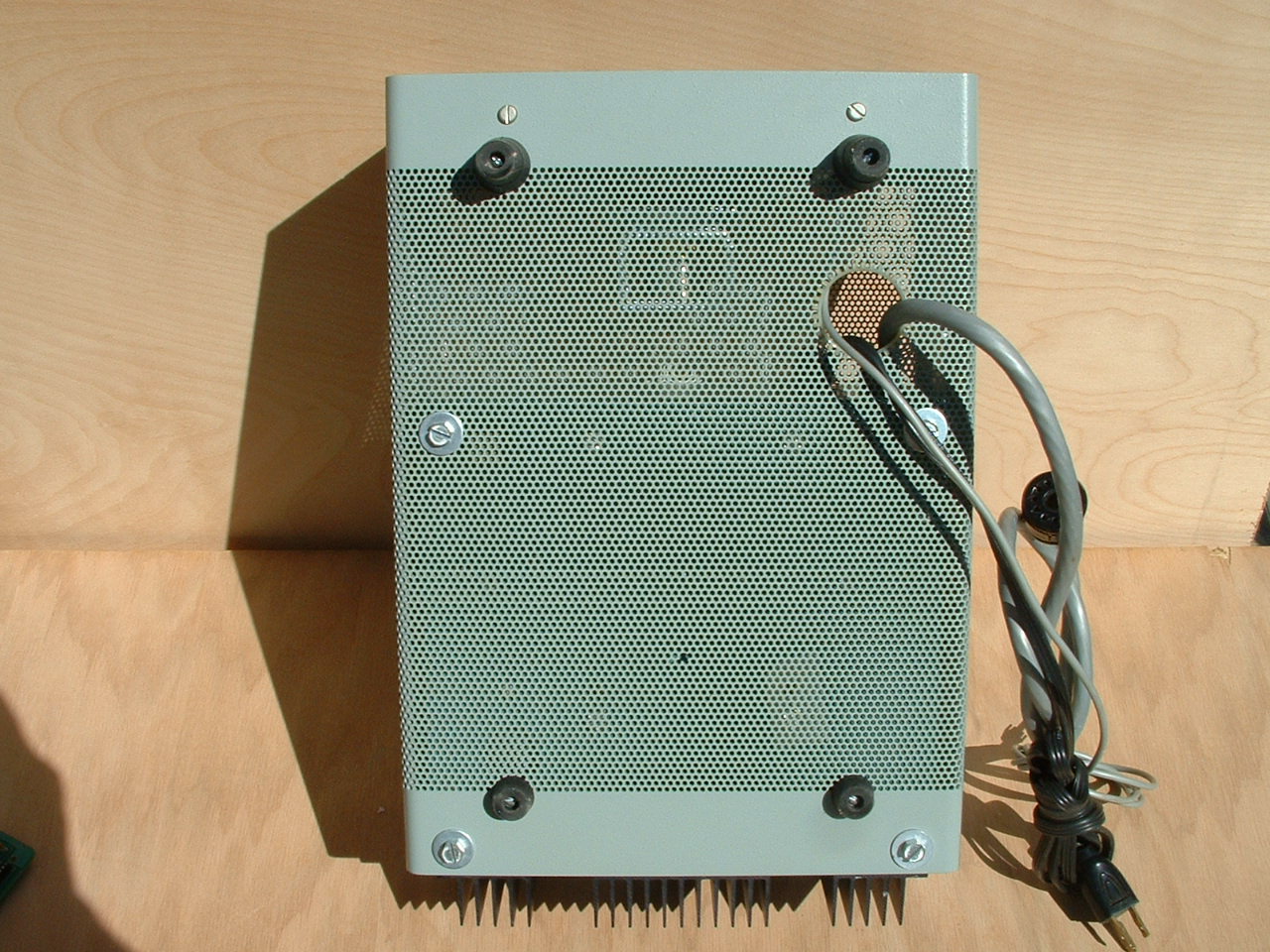

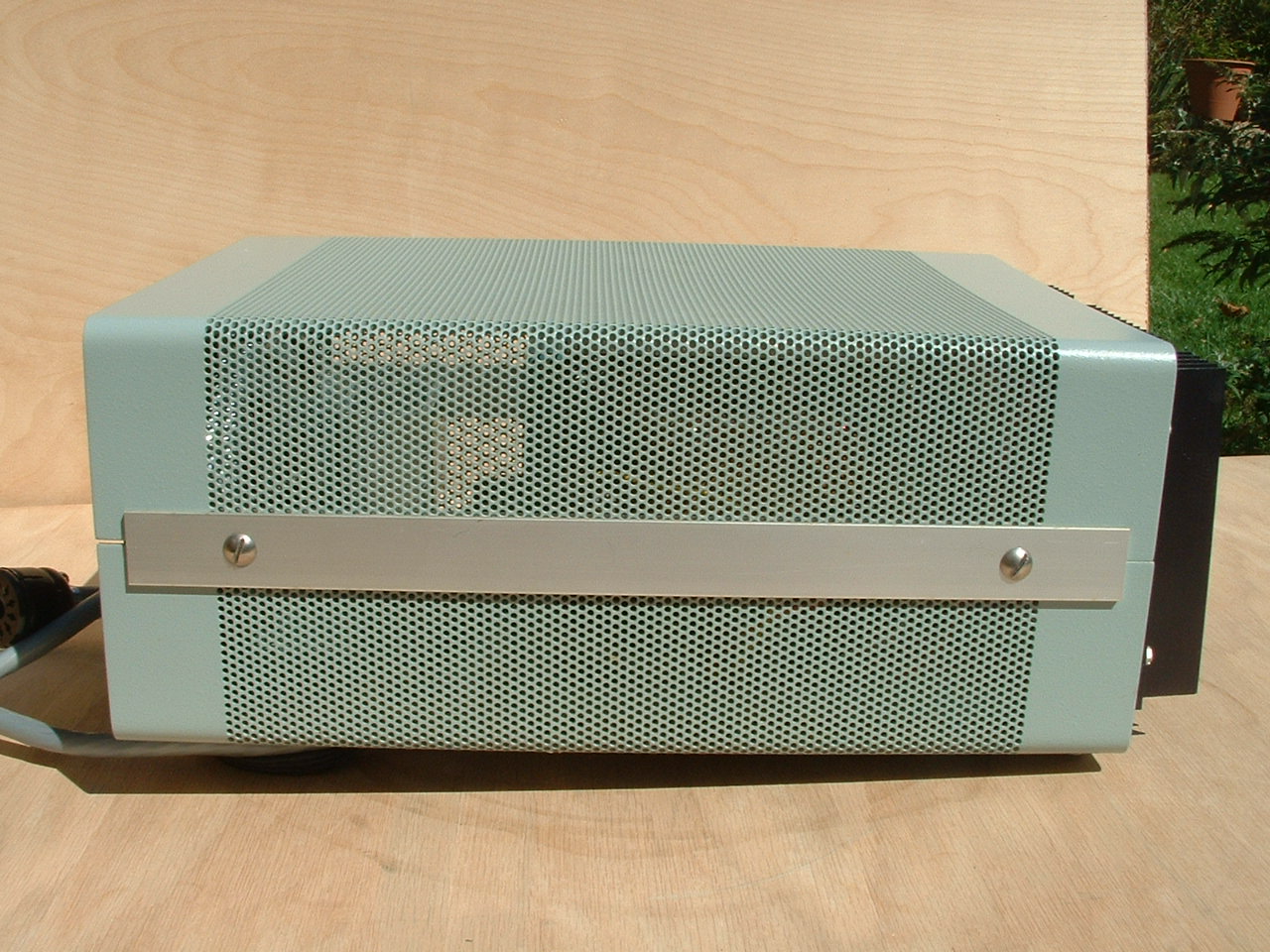

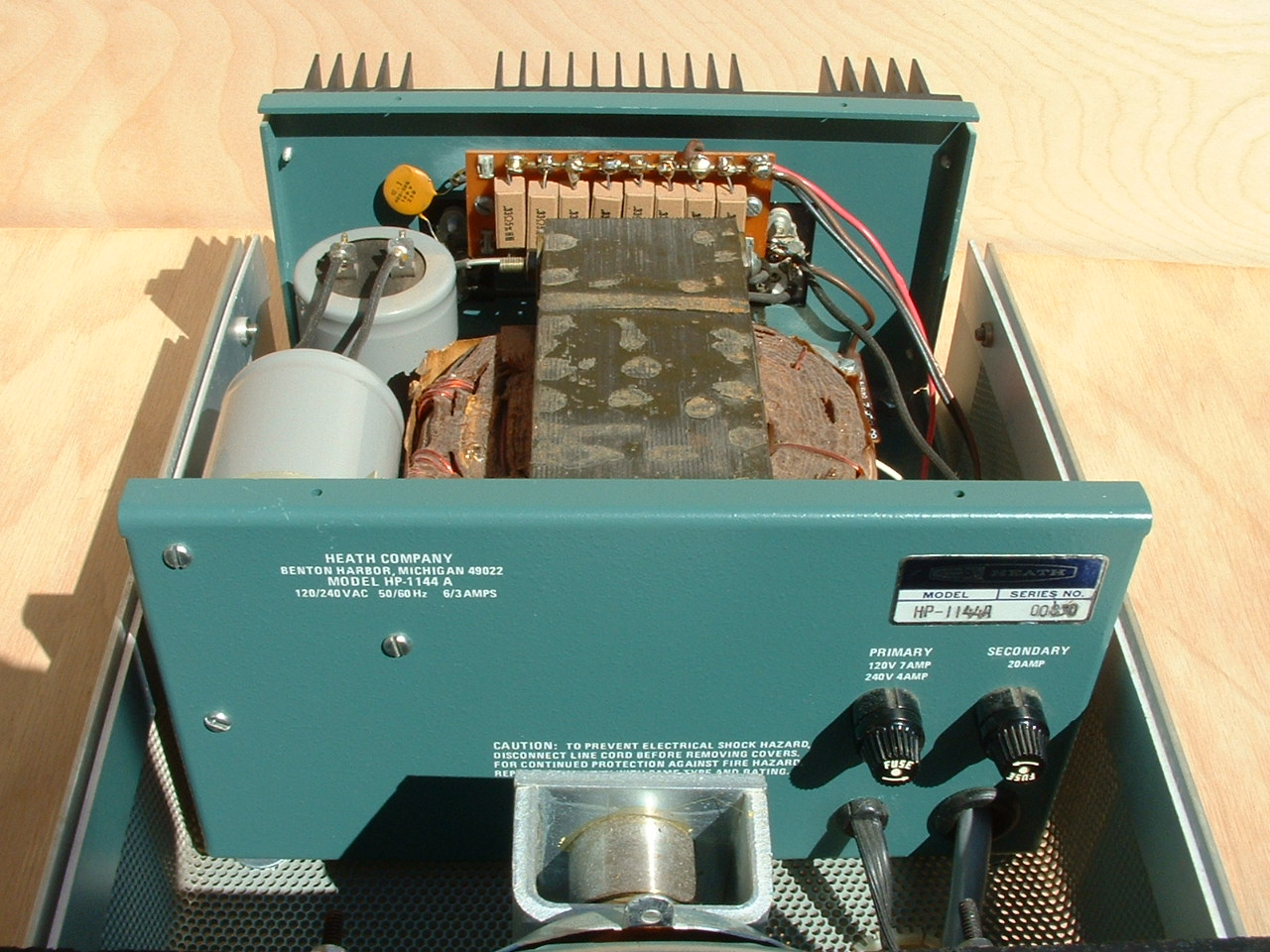

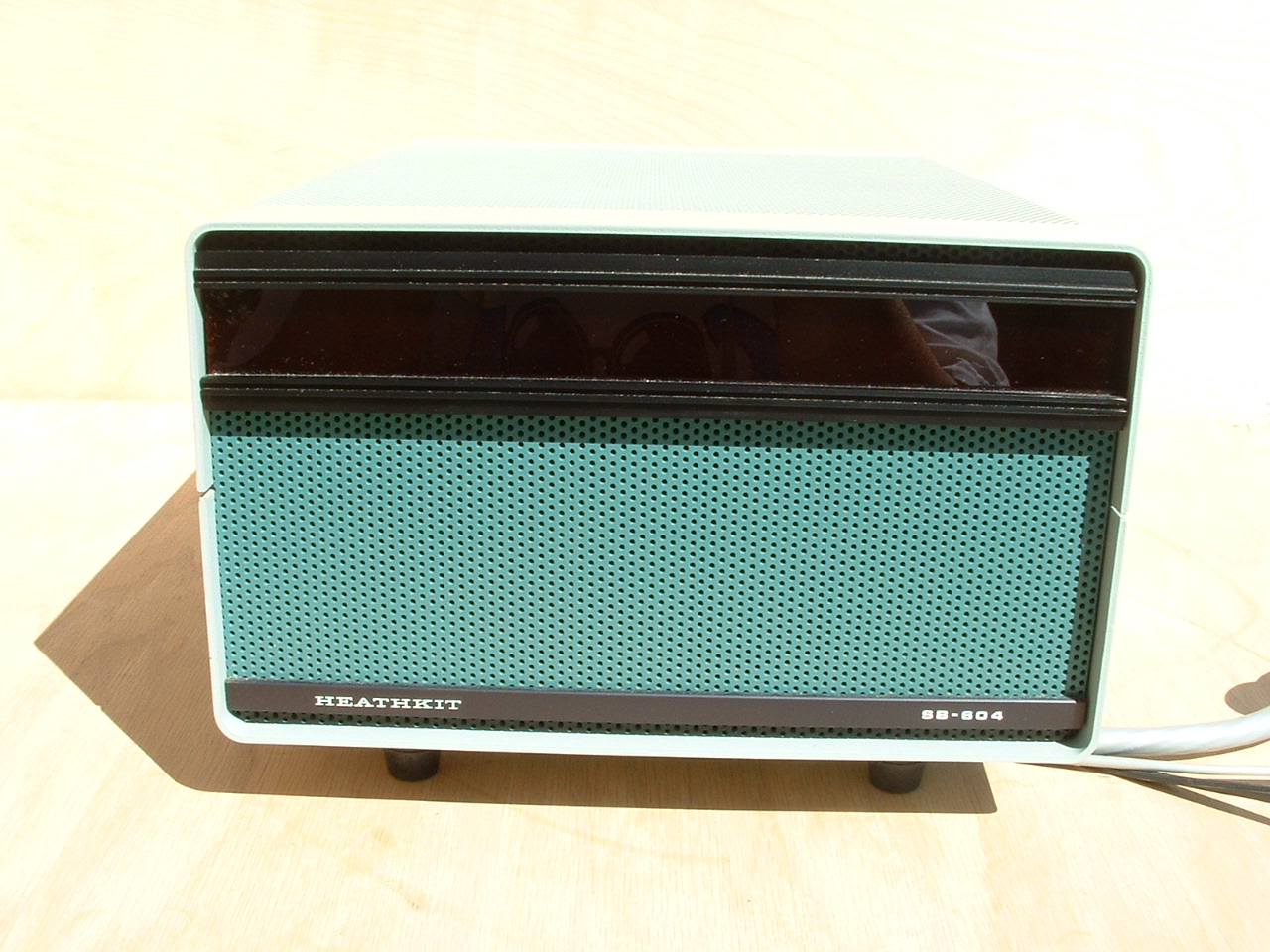

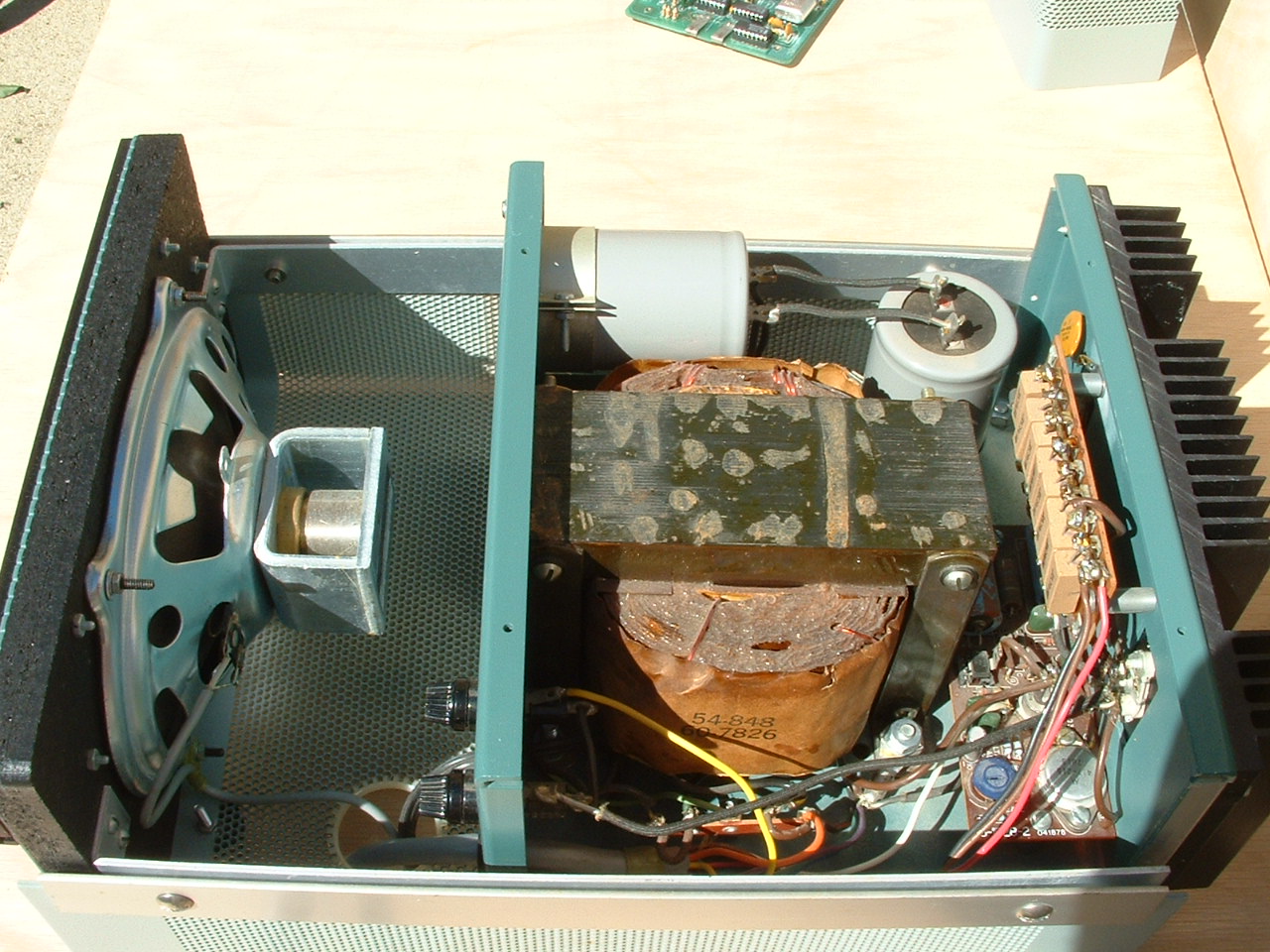

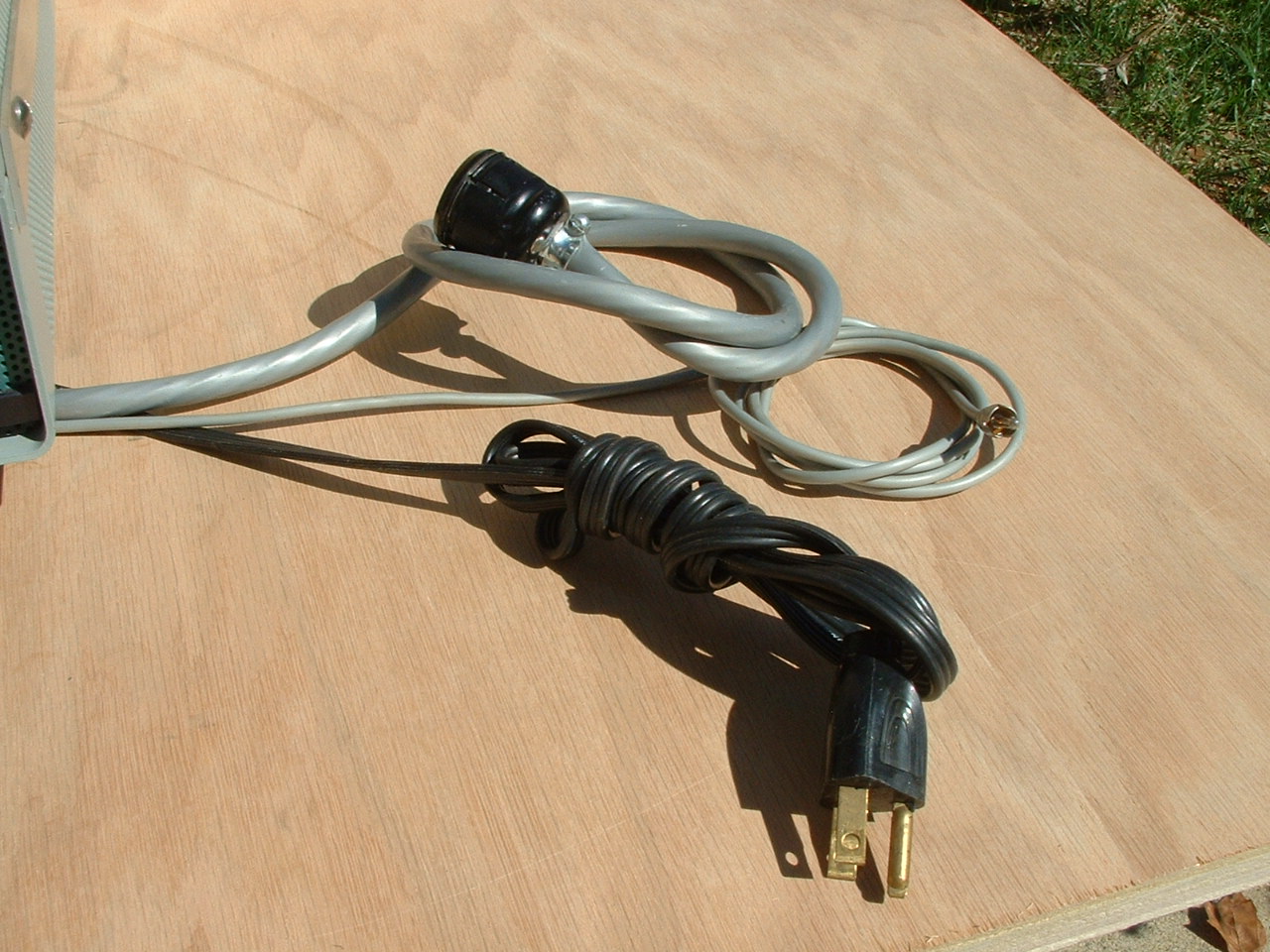

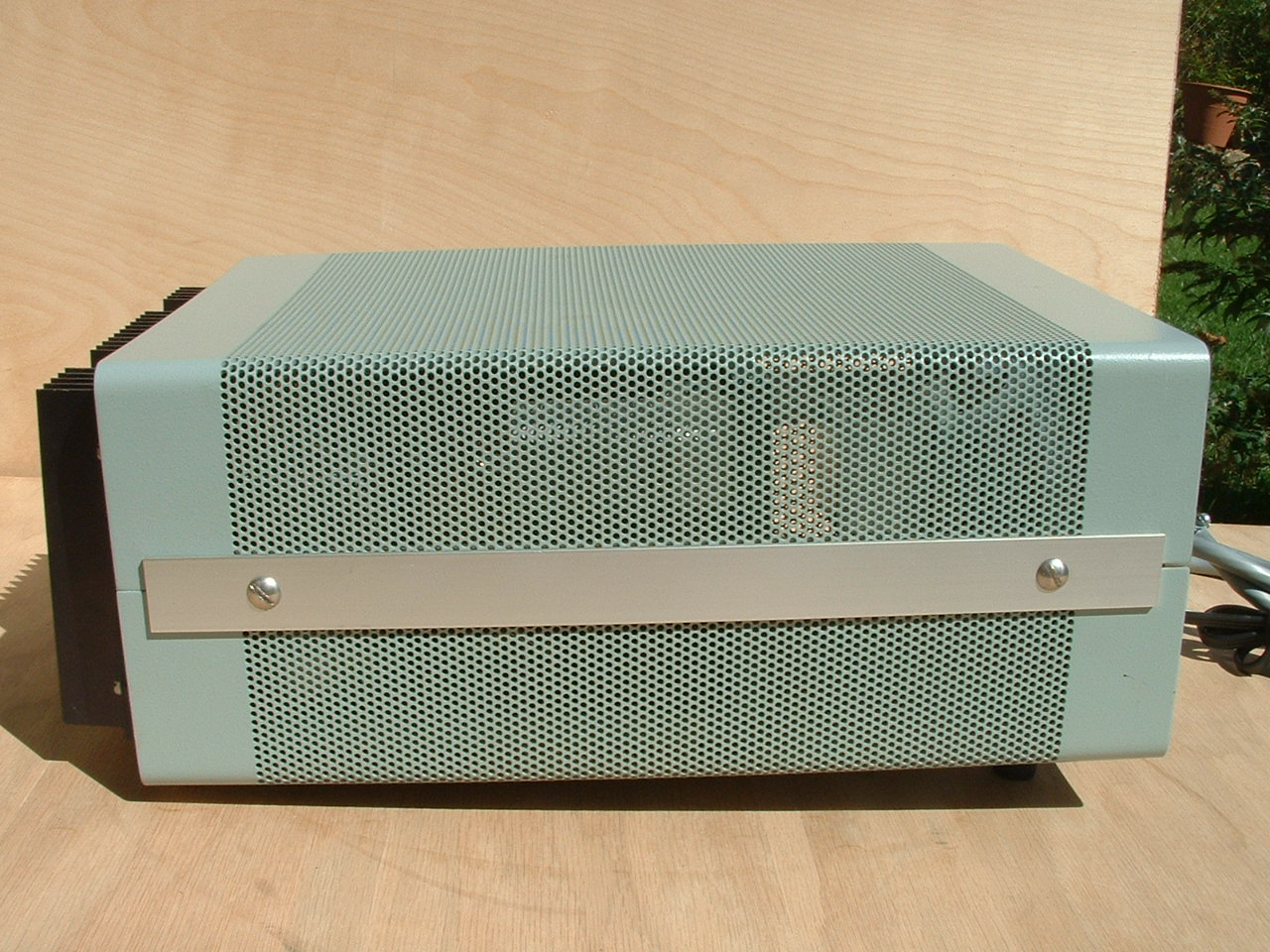

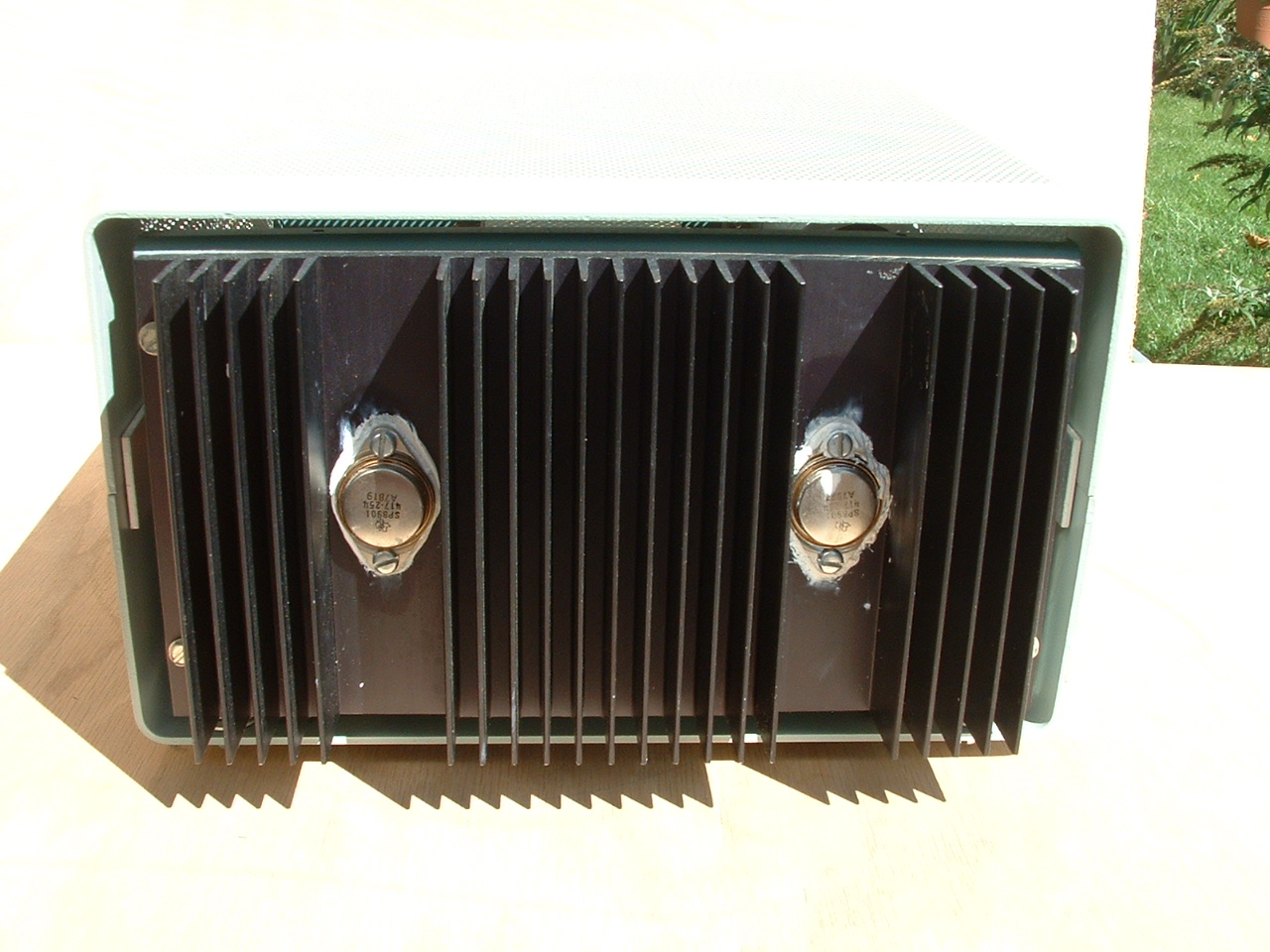

Speaker & Power Supply for the SB-104

horizontal rule

The power supply has a tendency to blow it's fuse if you over modulate the SB-104 at 100 watts. I have also indicated the manuals to upgrade the original HP-1144.

bulletAssembly/Operation manual    SB-604    2.4 megs (part number 595-1600-02)
bulletAssembly/Operation manual    HP-1144A    13.8 megs (part number 595-2198-01)
bulletIllustration booklet    HP-1144A    48 KB (part number 595-2198-01)
bulletAssembly/Operation manual for older HP-1144   11 megs (part number 595-1599)
bulletHP-1144 modification booklet    5.3 megs (part number 595-2219)
bulletHP-1144 mod illustration booklet    4 megs (part number 595-2219)
