Clock & Power Supply for HW-5400

horizontal rule

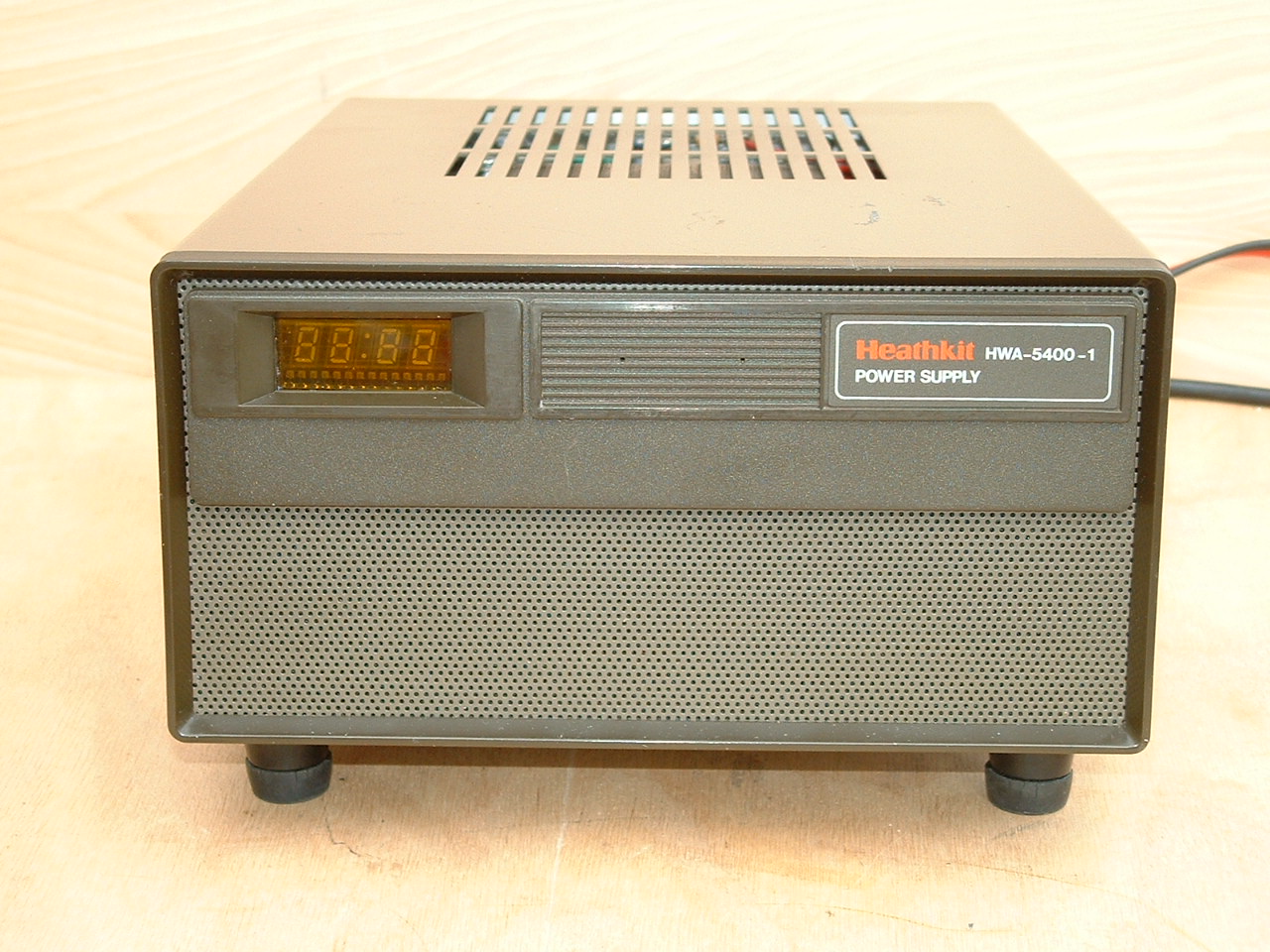

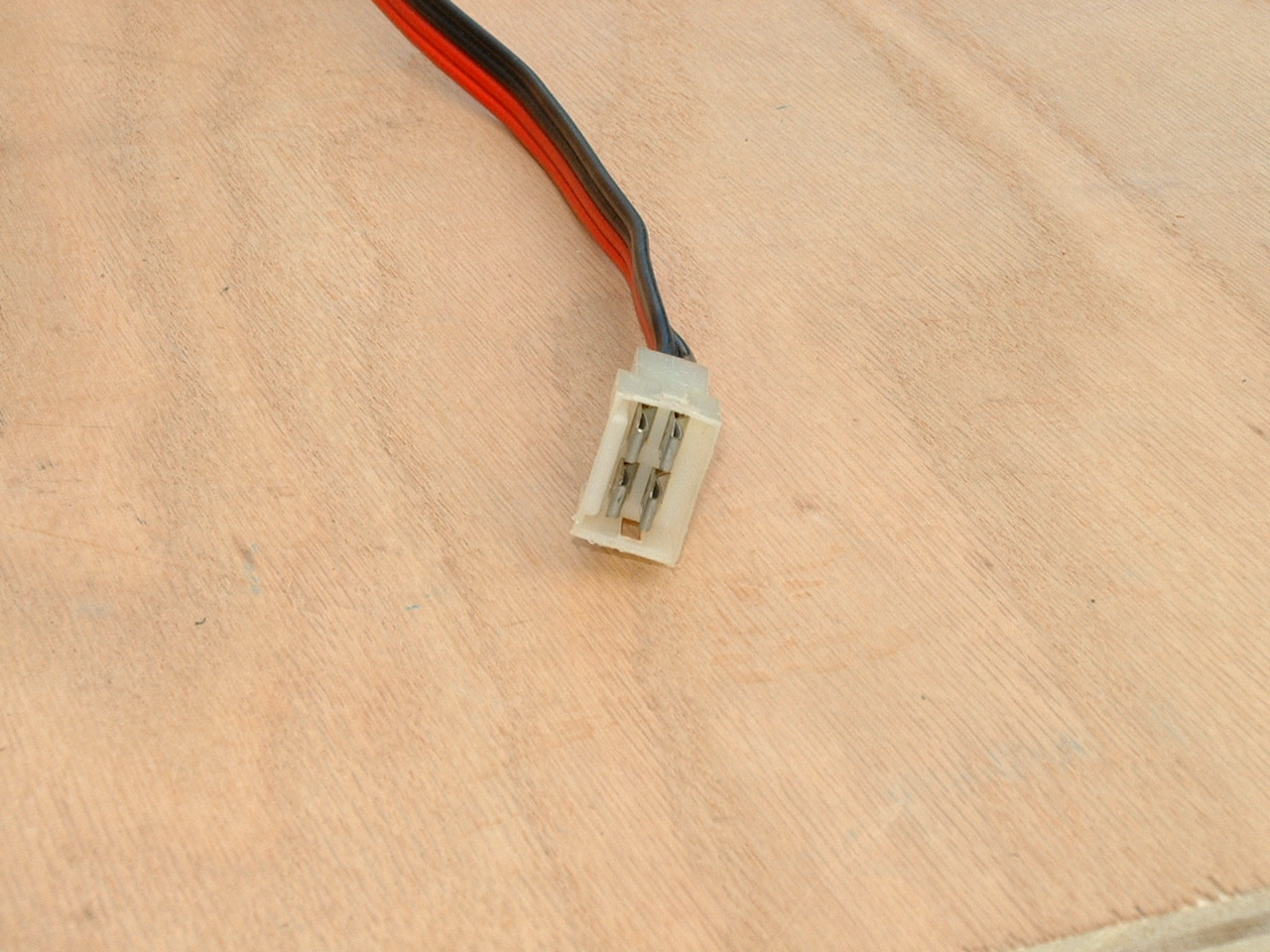

This is a fairly simple unit but once again Heathkit managed to use an odd ball power connector.  The display is a Futaba, the same as used in the PS-9000, and is obsolete.  If Futaba still makes it, it would be next to impossible to get since they only sell to OEMs.


bulletAssembly/Operation manual    23 megs (part number 595-2856-01)
bulletIllustration booklet    5 megs (part number 595-2856-01)
