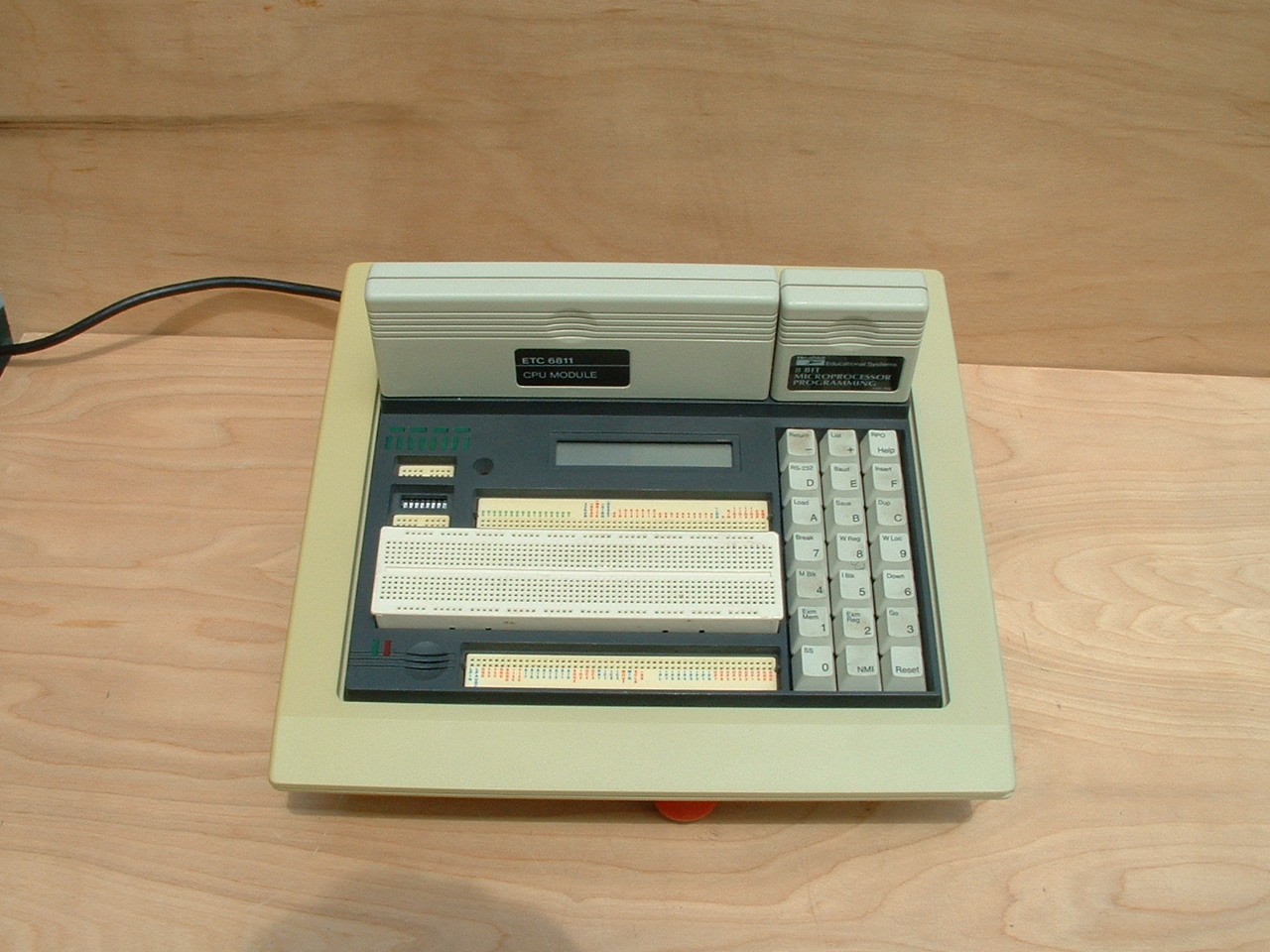

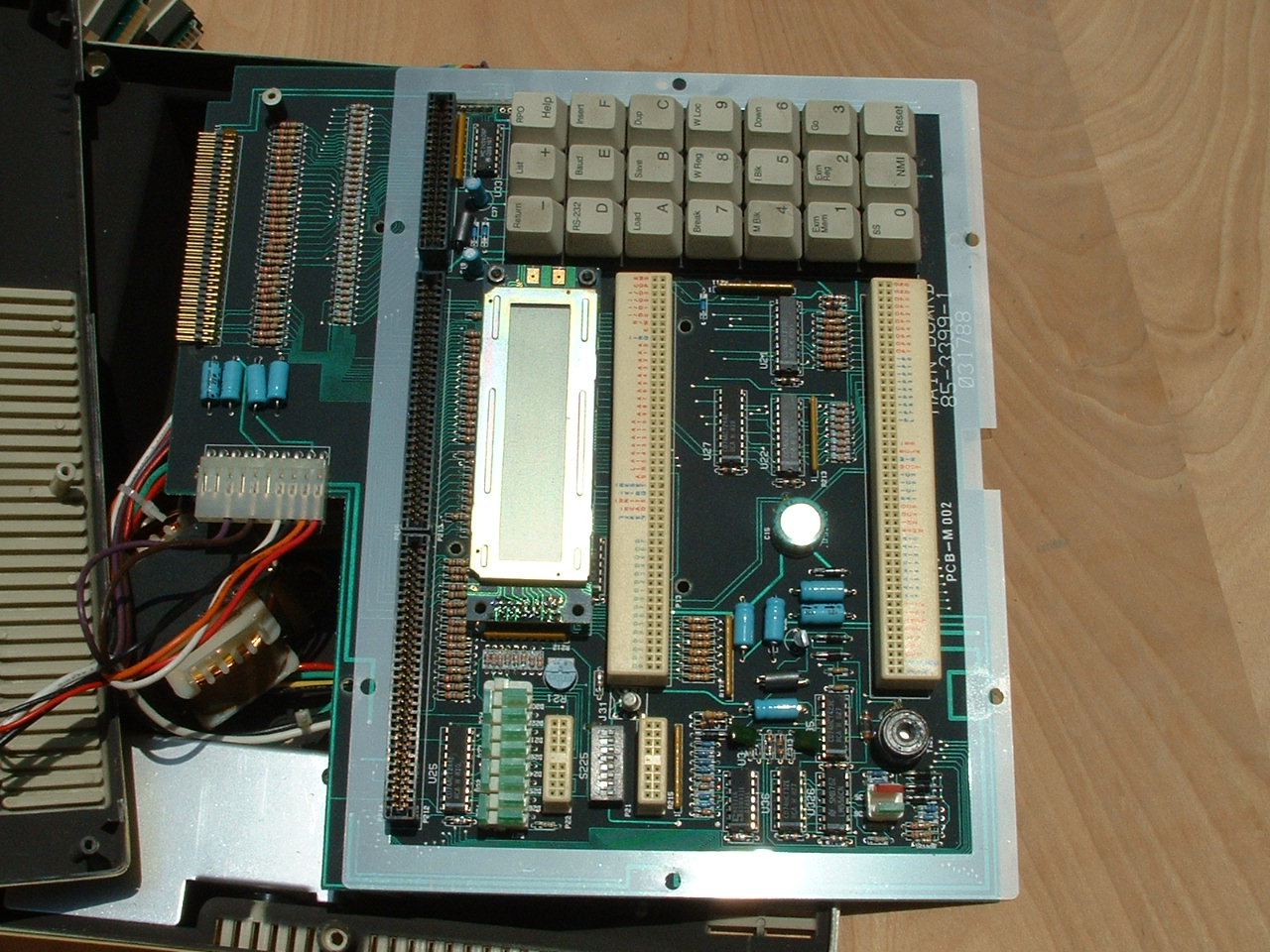

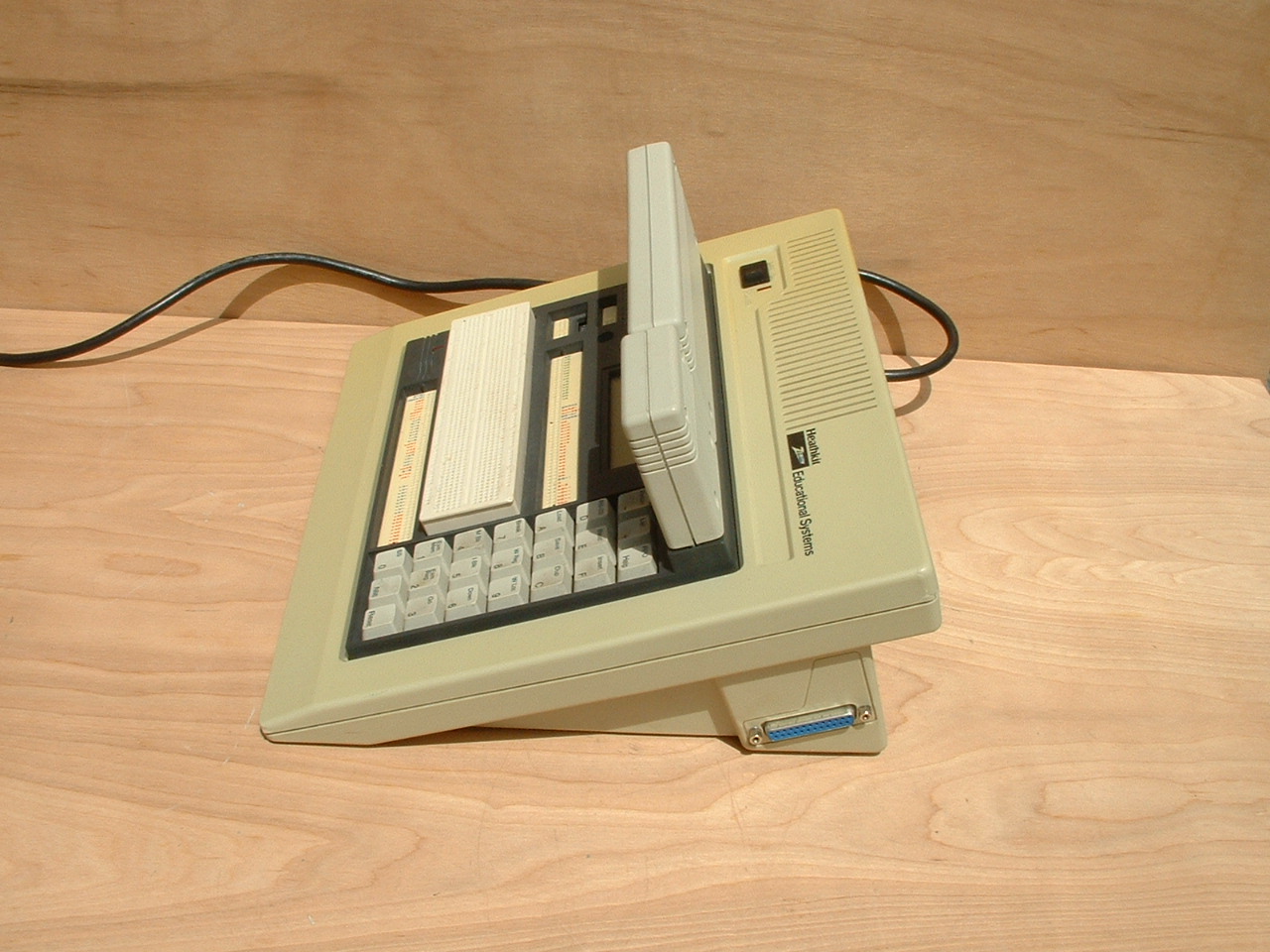

Microprocessor Trainer

horizontal rule

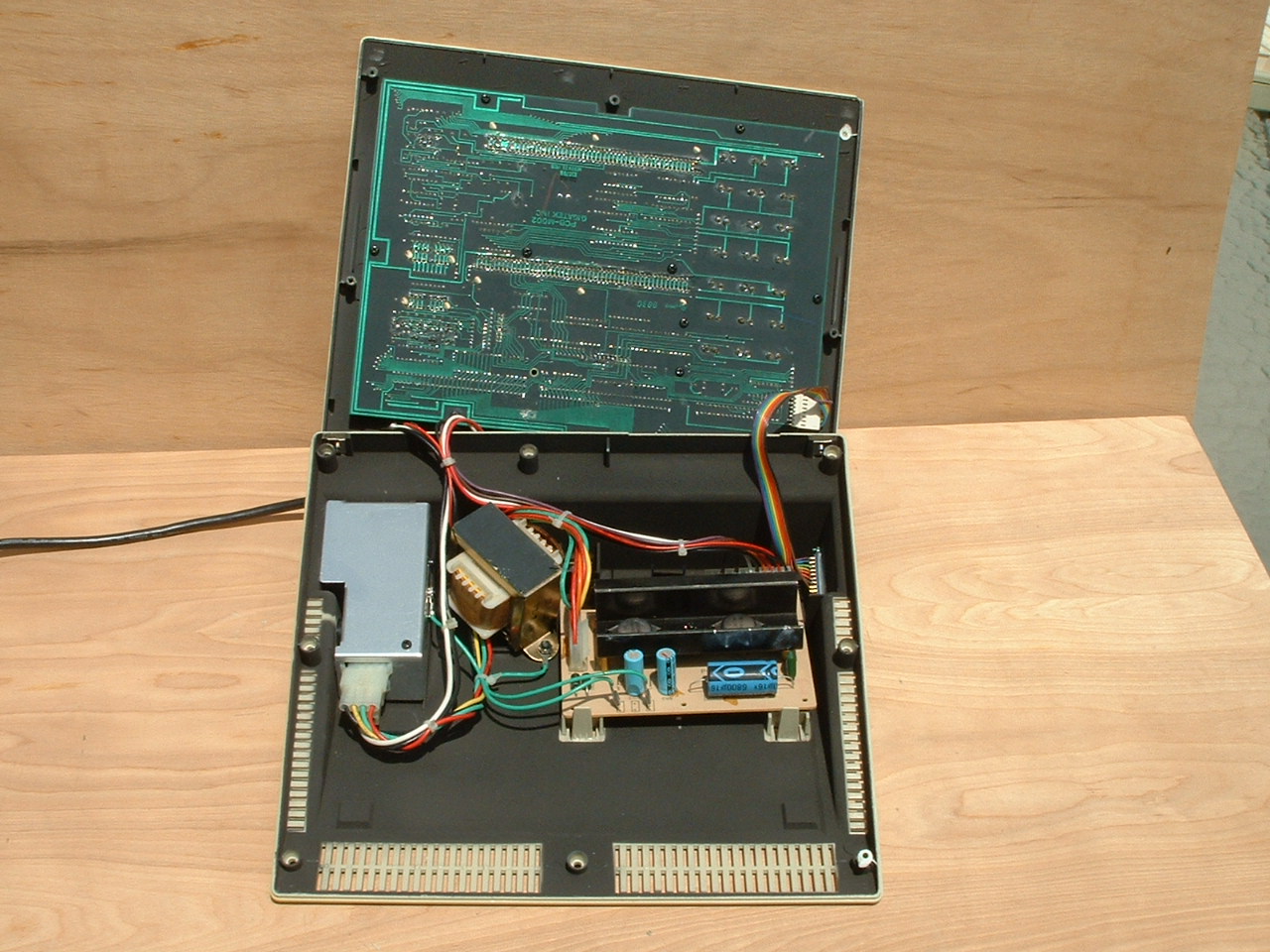

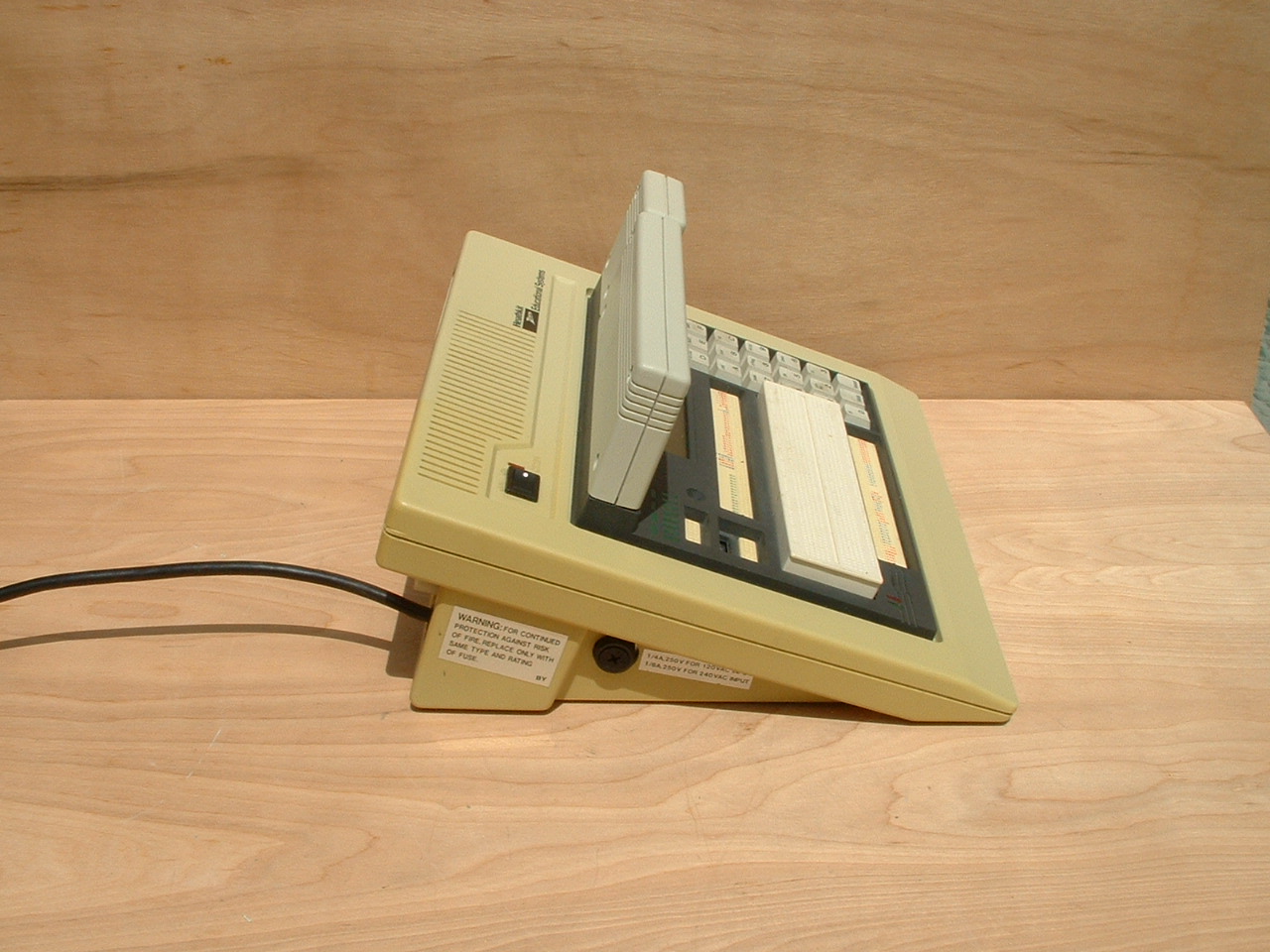

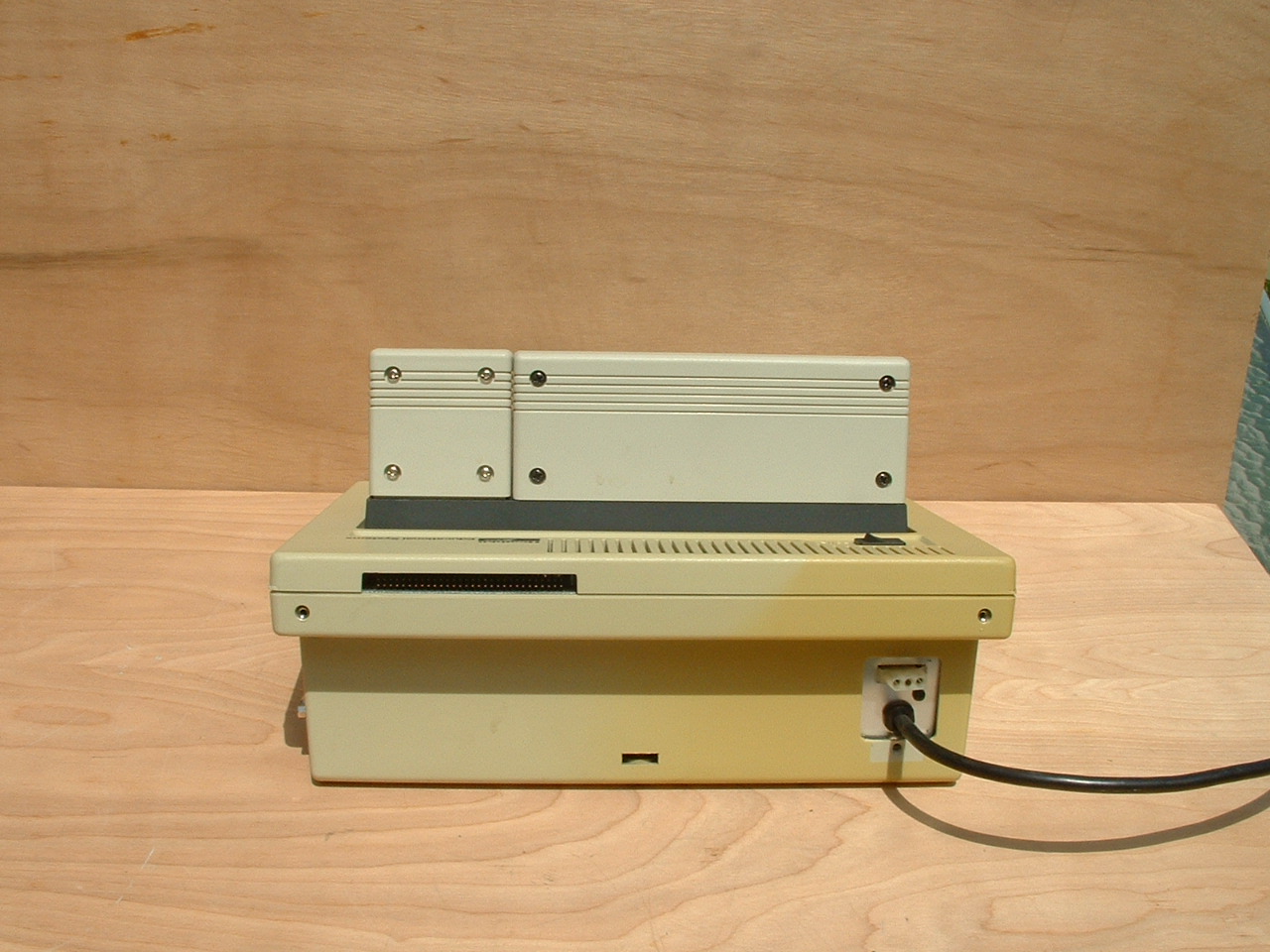

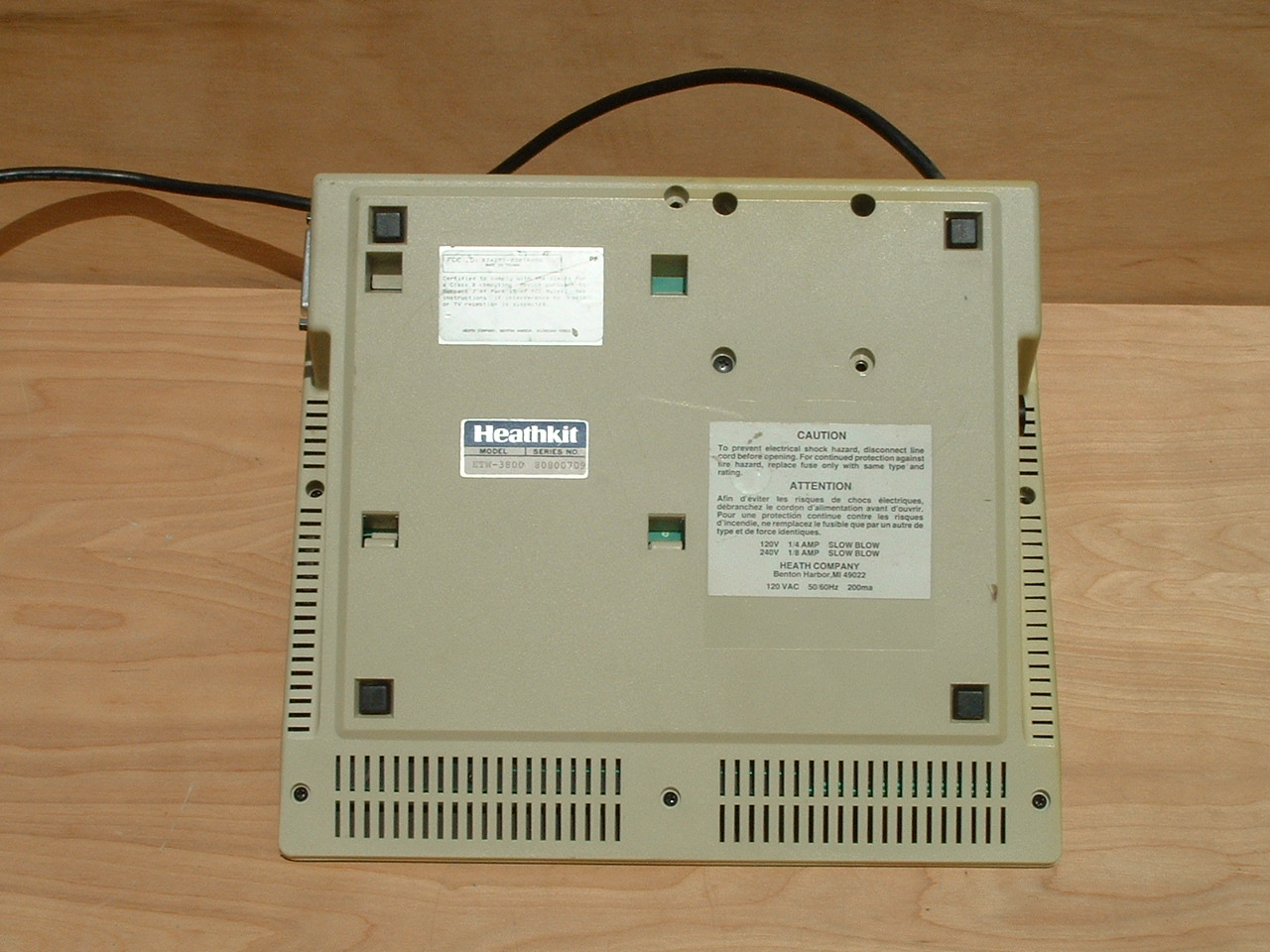

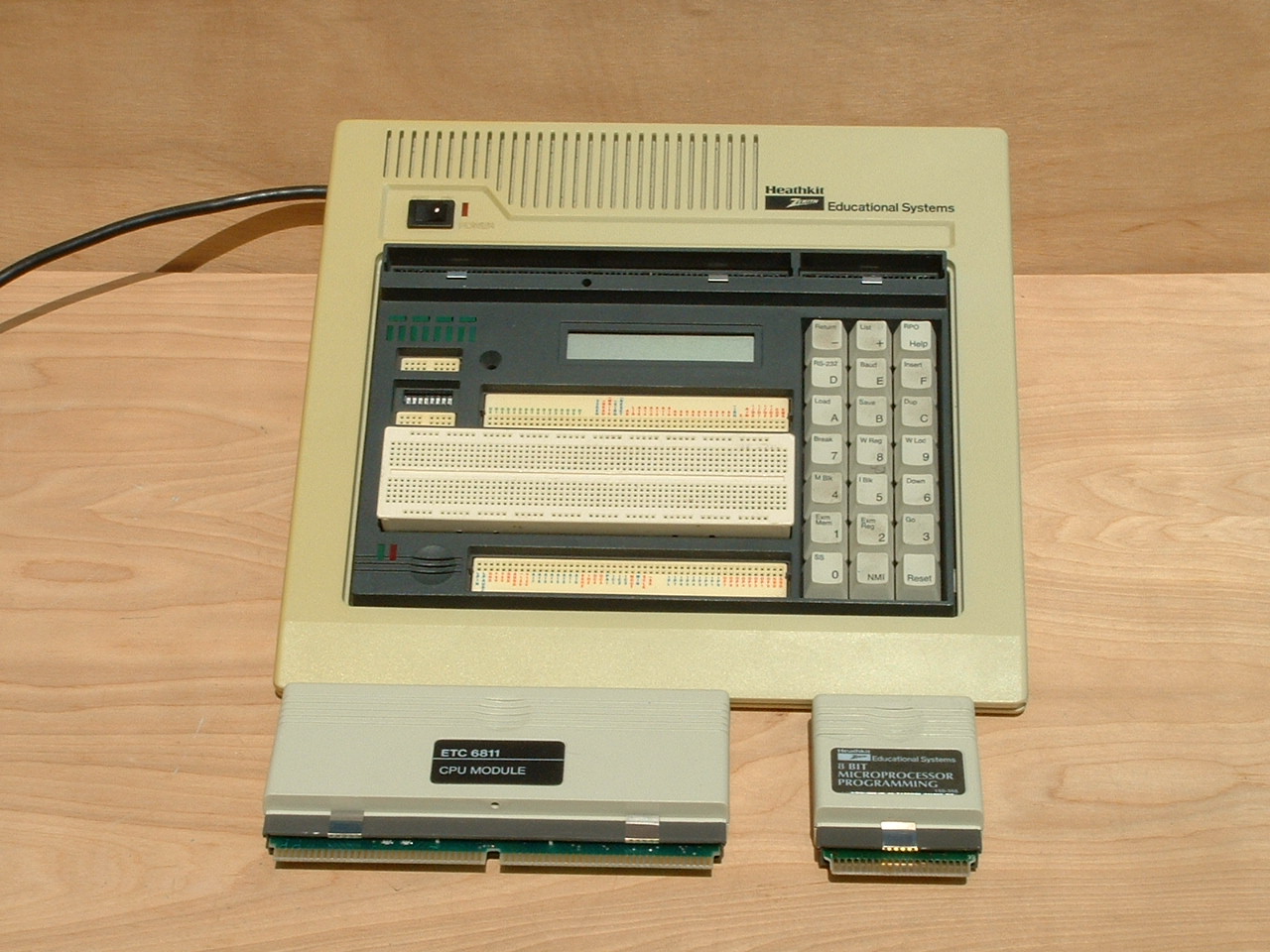

This console cost $599.95 wired in the 1993 Educational catalog.

bulletETW-3800 Manual with ETC-8085 CPU    7.43 megs (part number 595-4330)
bulletETW-3800 Schematics with ETC-8085 CPU    1.51 megs (part number 595-4330)
bulletETW-3800 Manual with ETC-6811    9.48 megs (part number 595-4170-04
bullet ETW-3800 Schematics with ETC-6811    1.78 megs (part number 595-4170-04
bullet EB-6401A Microprocessors course Books 1 and 2 (6800) 1985    5.6 megs (part number 595-3429-07)

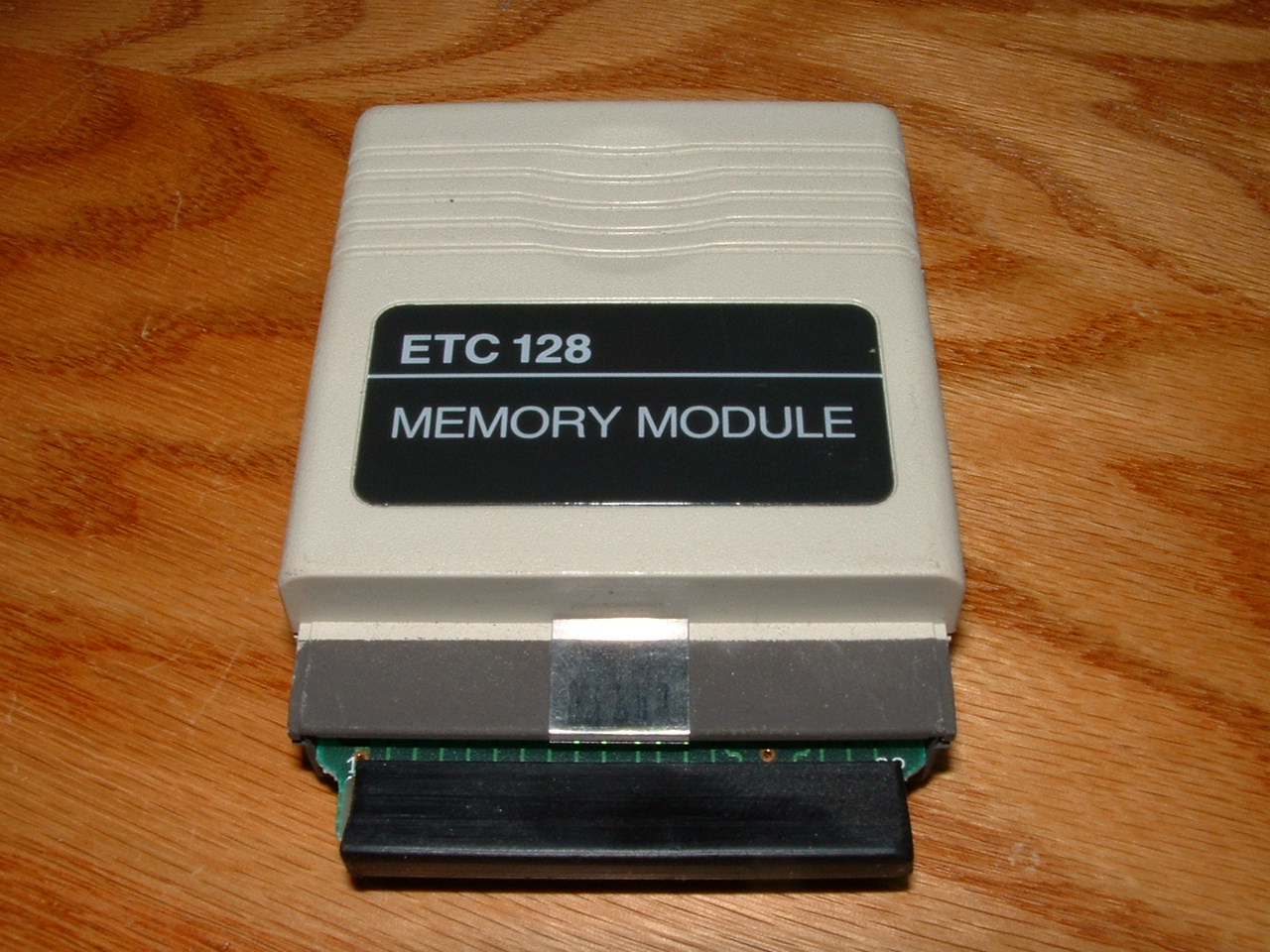

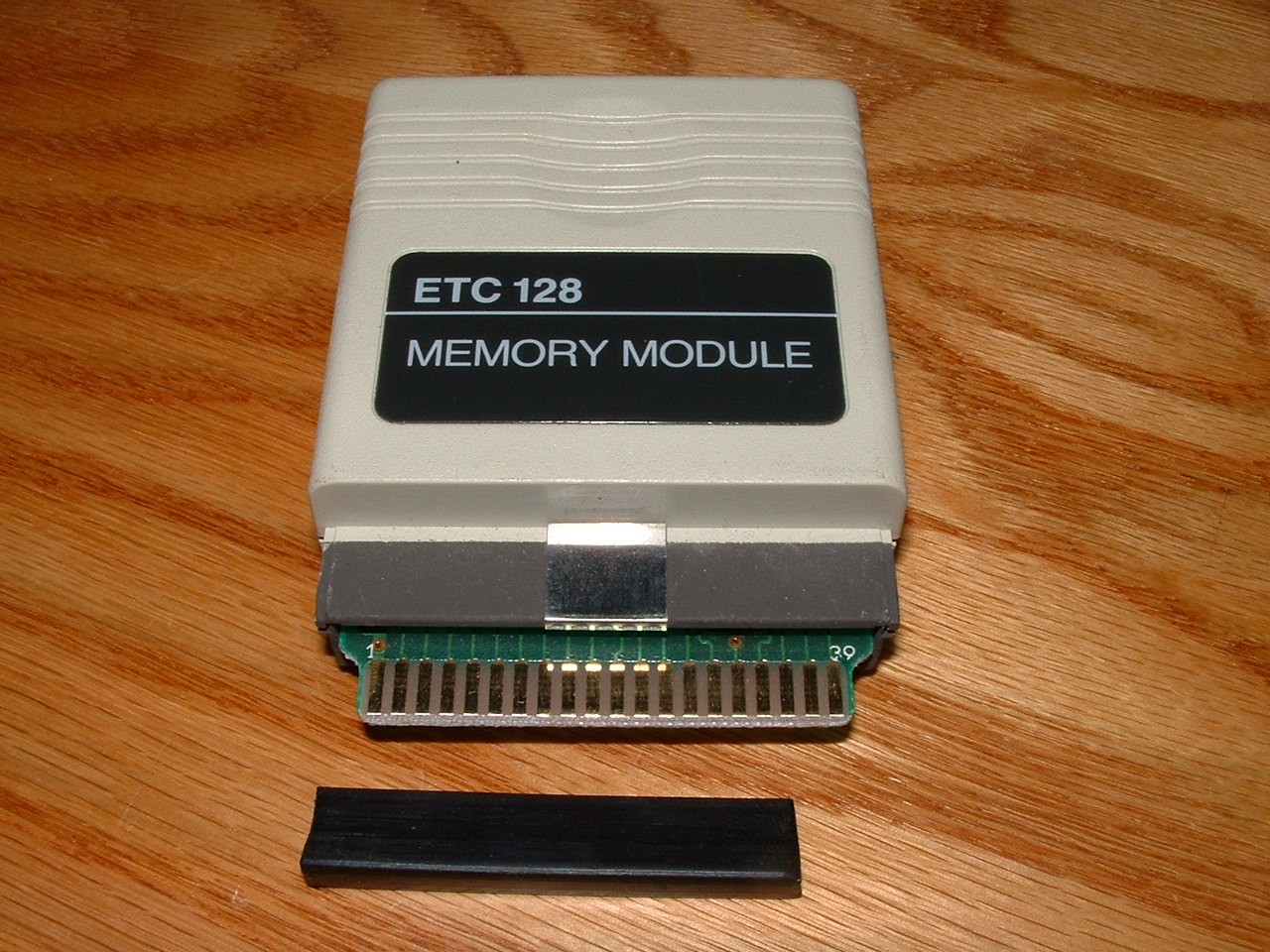

ETC-128 memory module

This module cost $99.95 in the 1993 educational catalog.

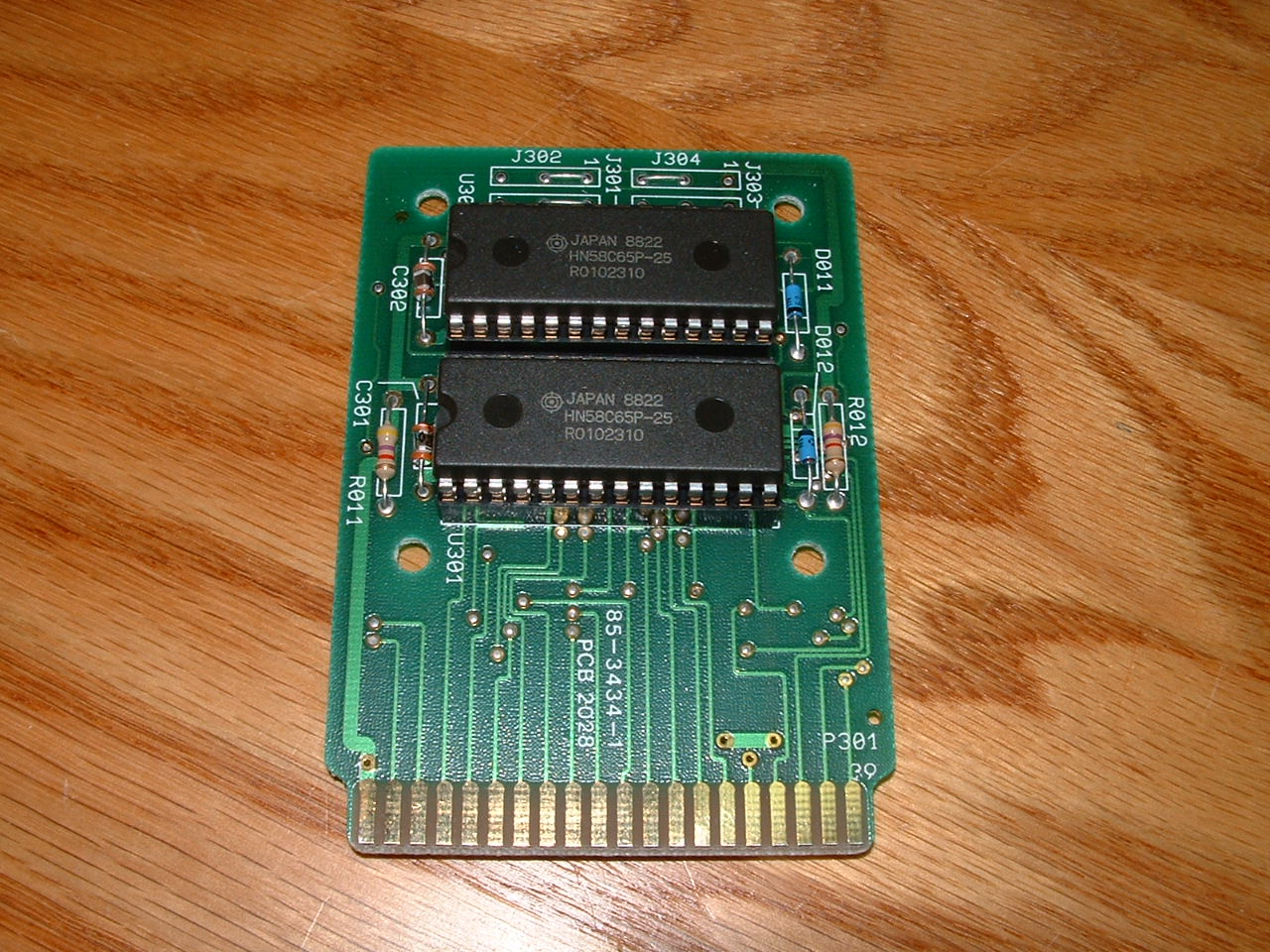

The memory is HN58C65P-25

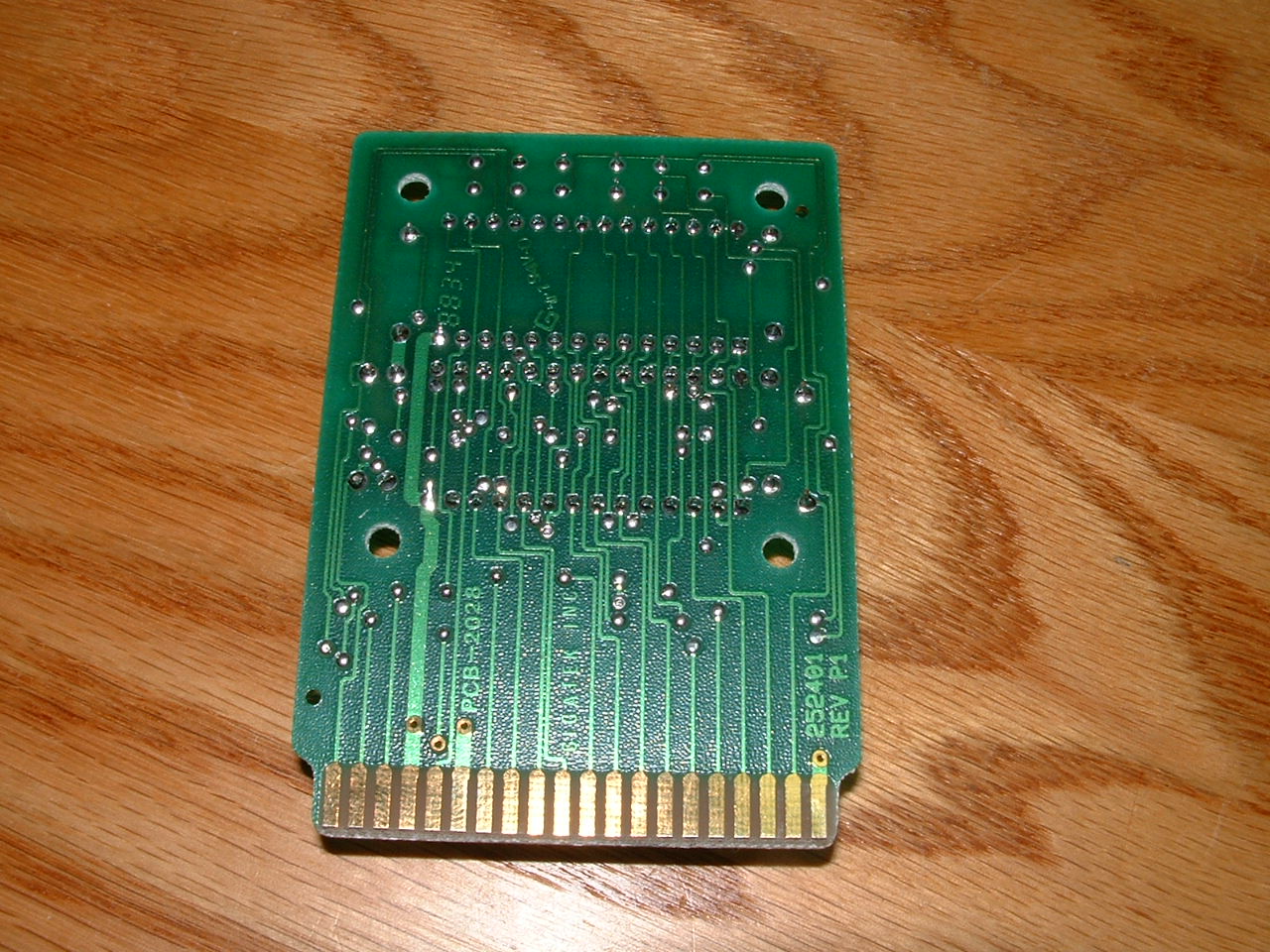

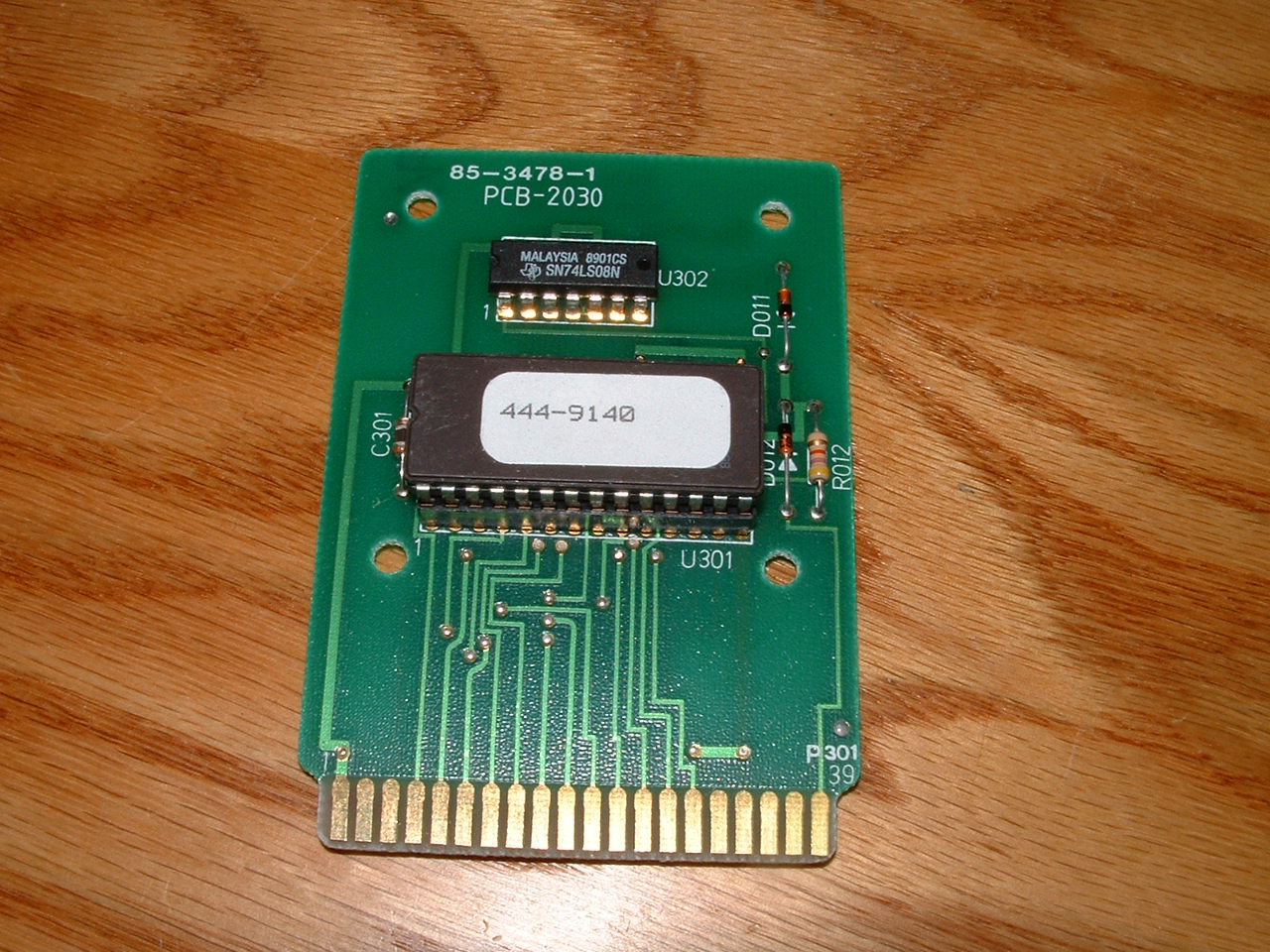

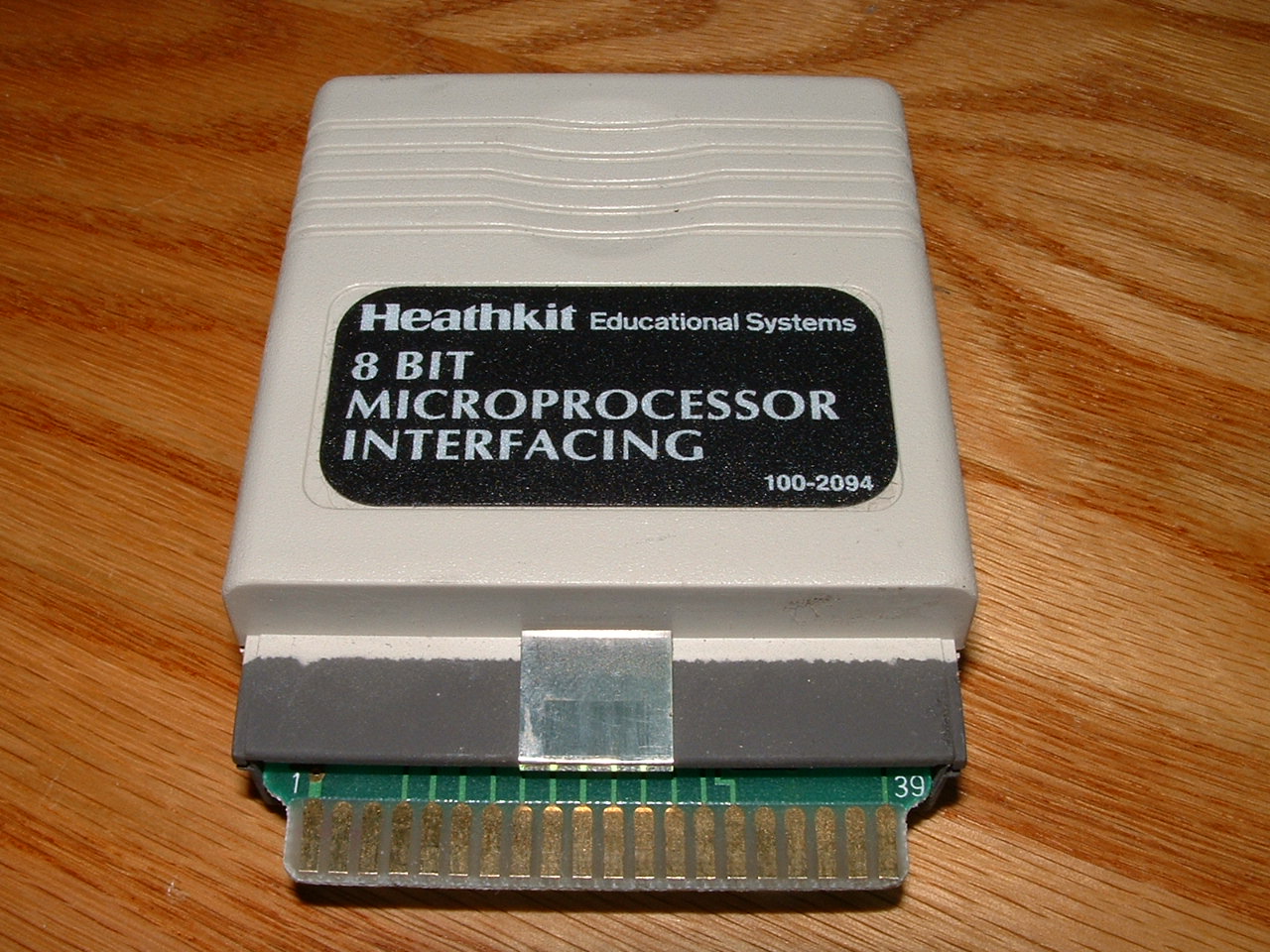

8 Bit Microprocessor Interfacing

Part number 100-2094

Prom number 444-9140.

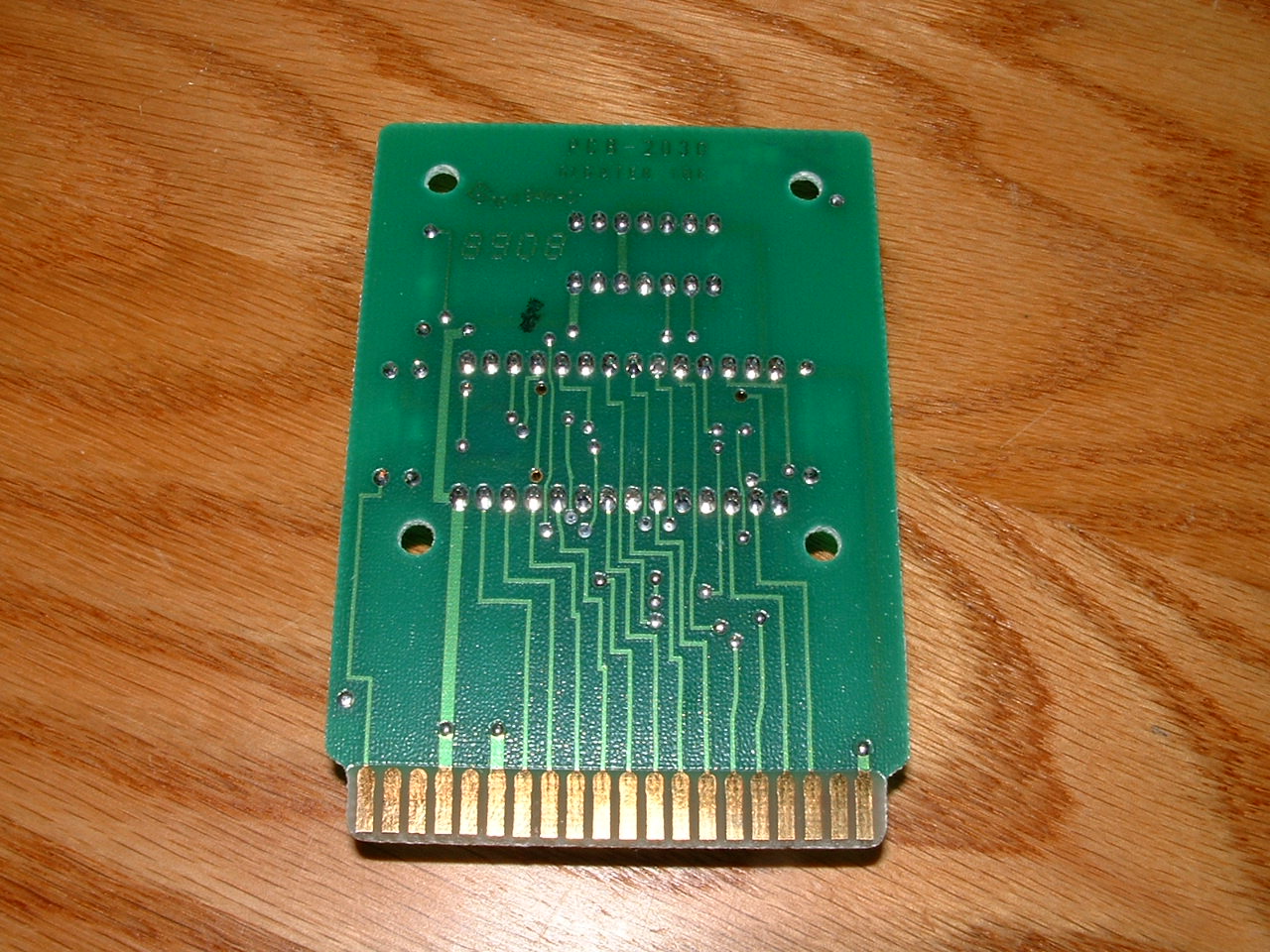

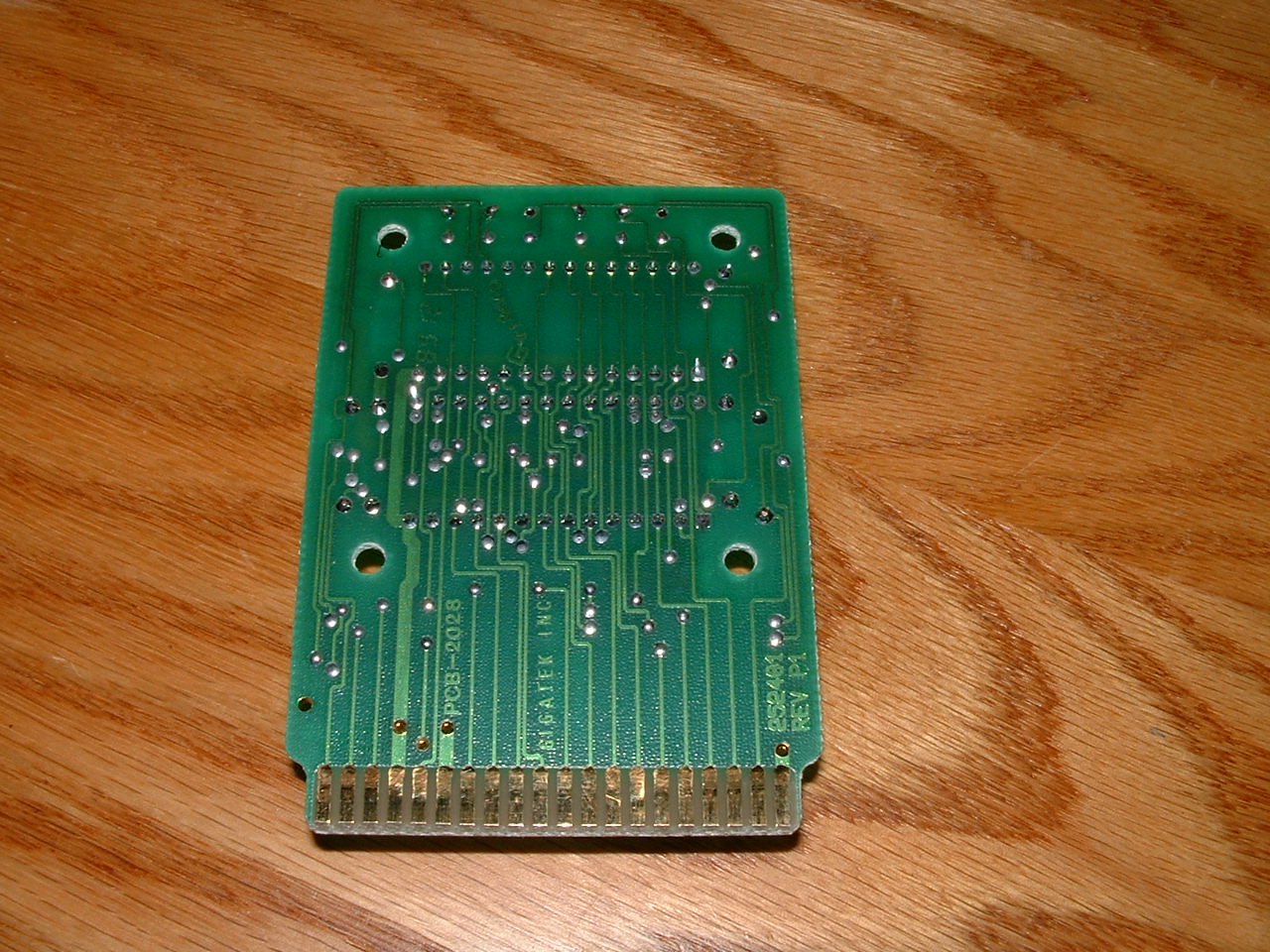

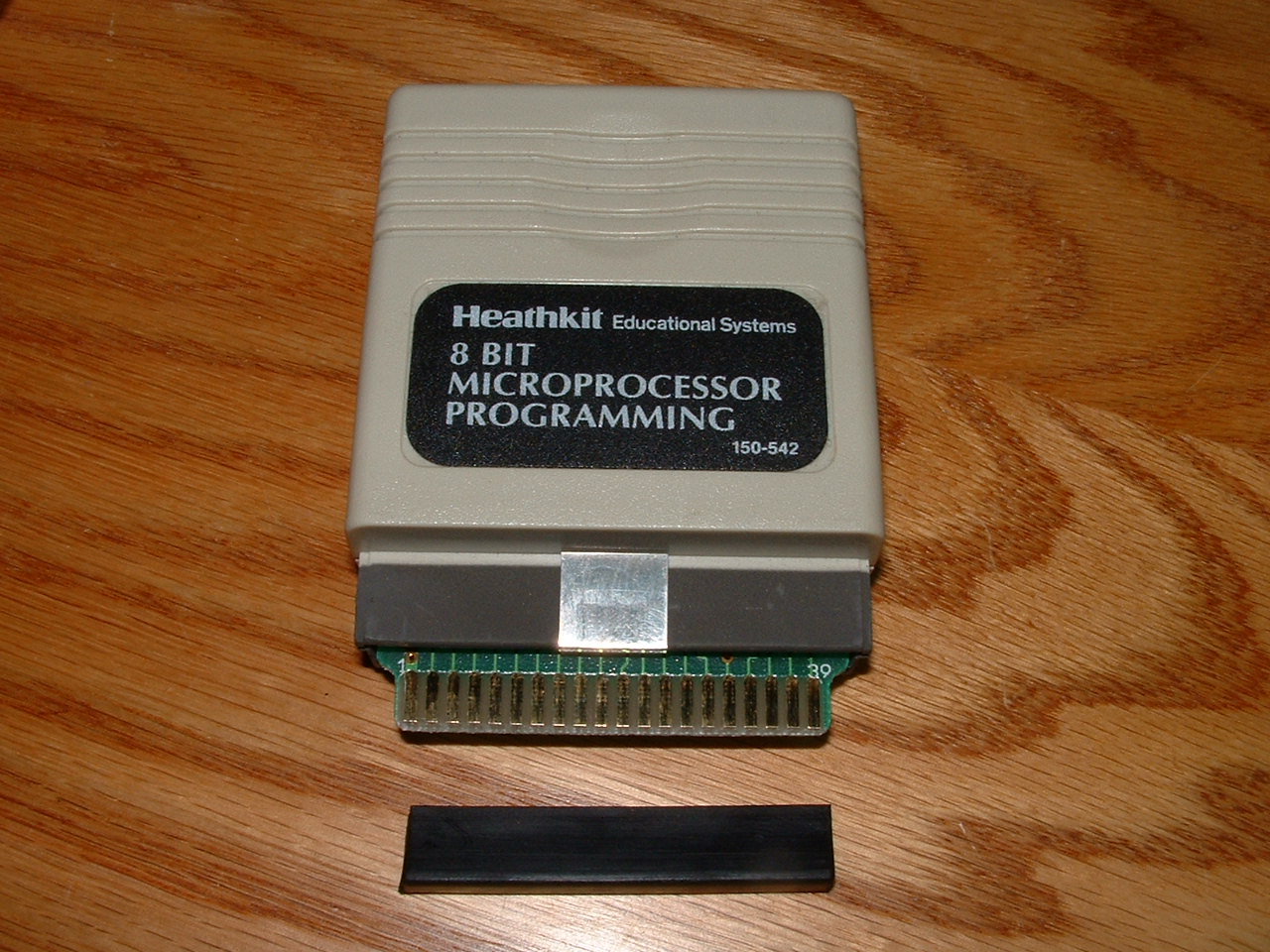

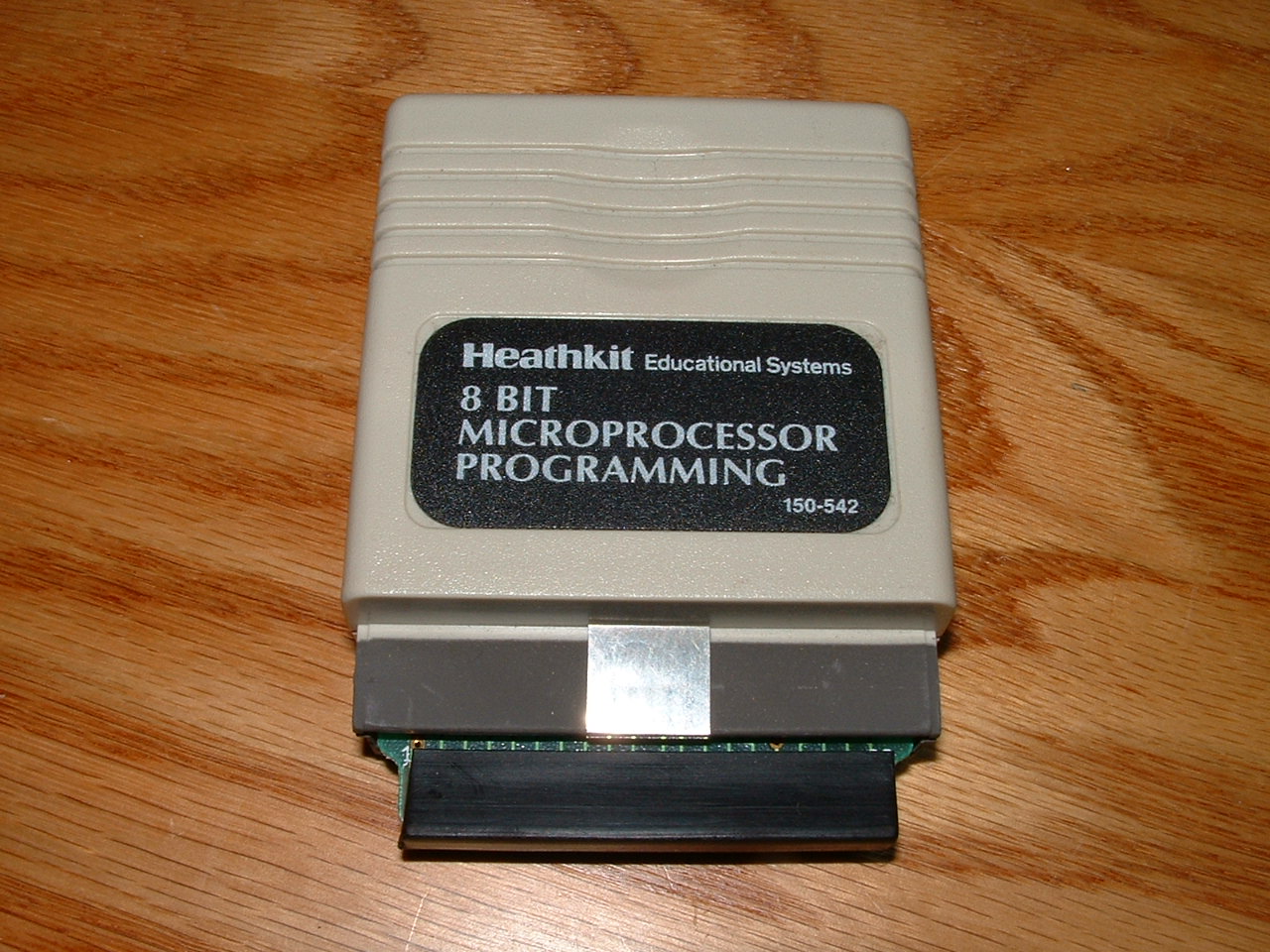

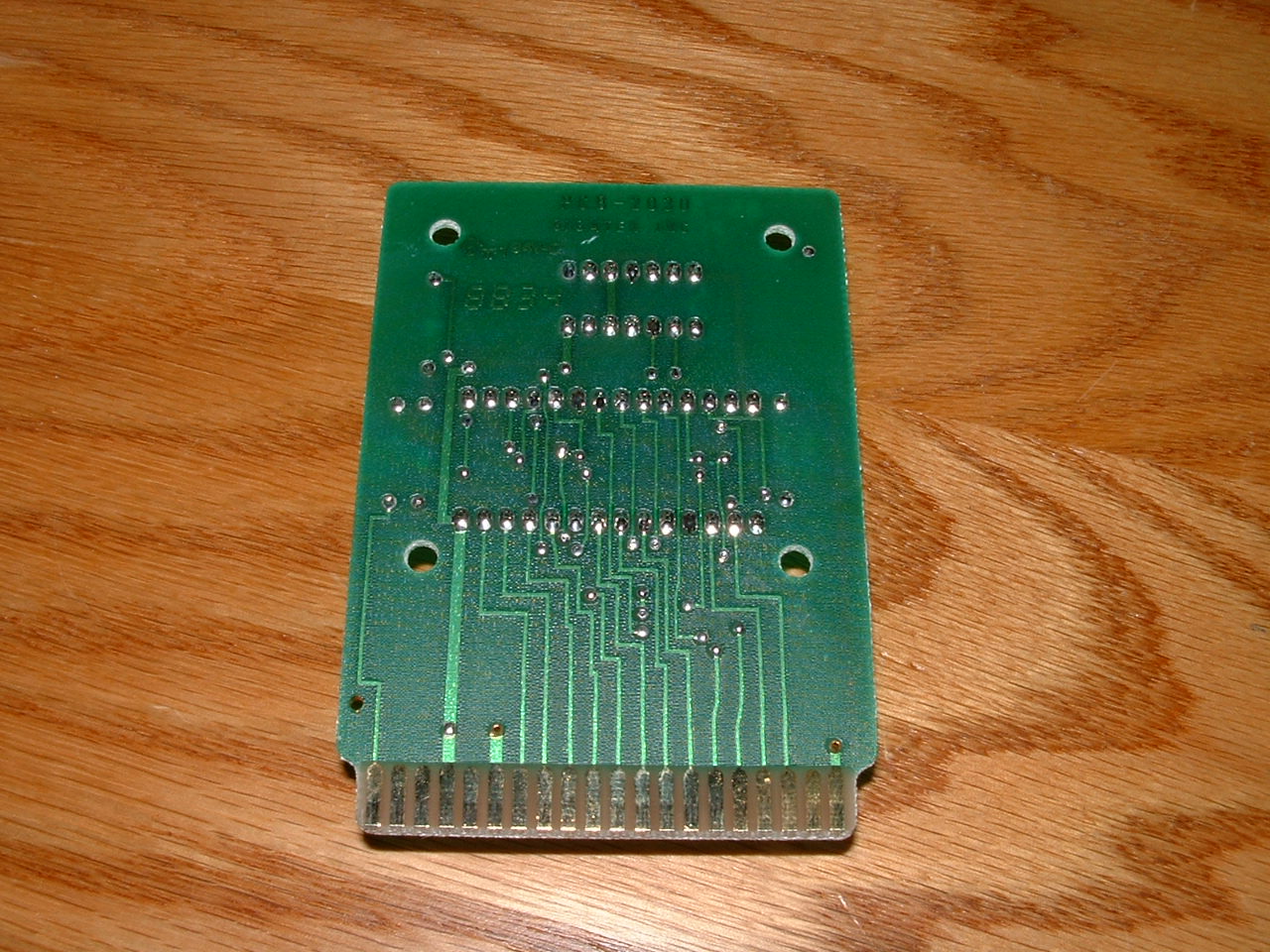

8 Bit Microprocessor programming module

Part number 150-542

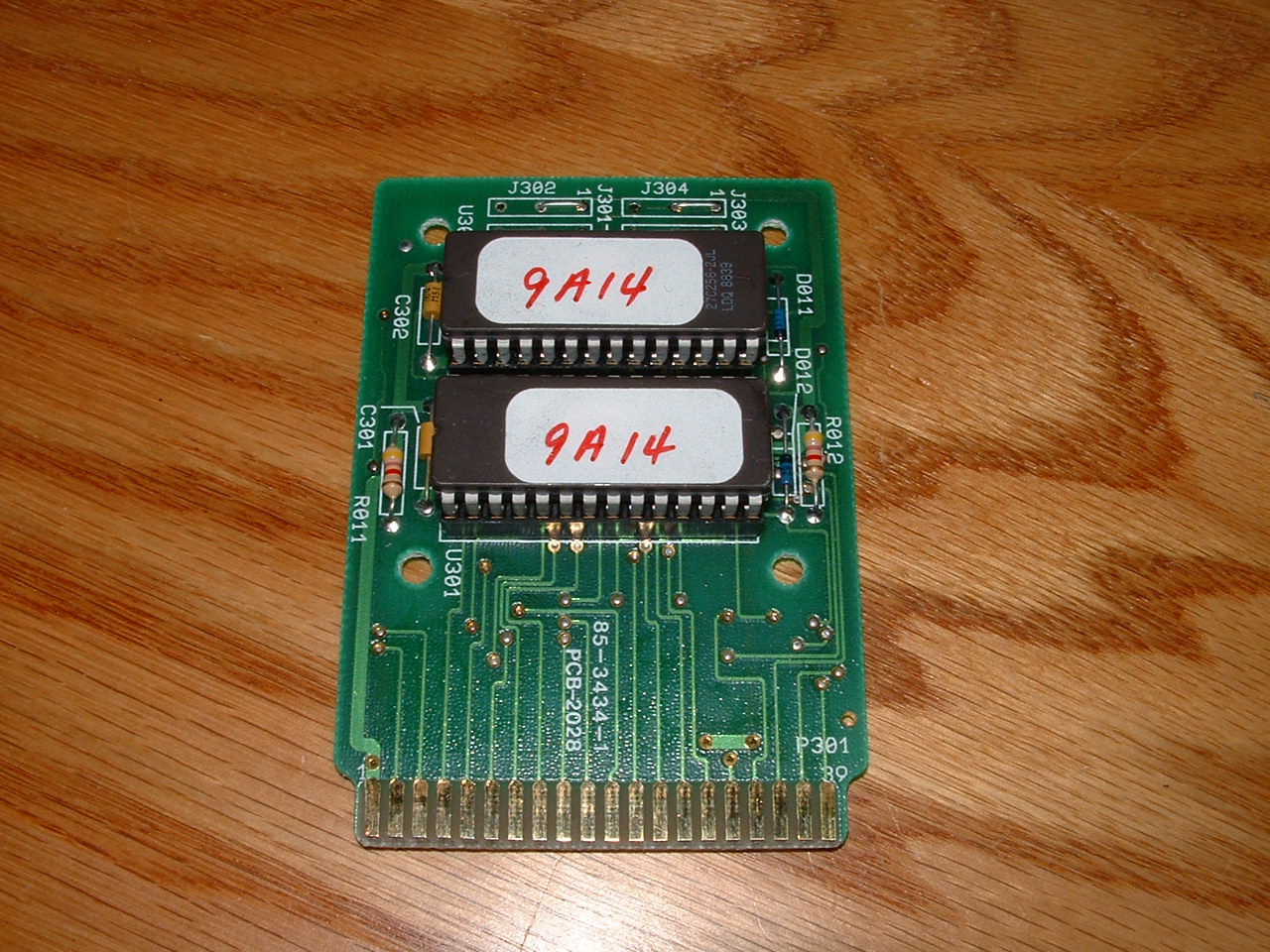

All seven modules have 9A14 proms.

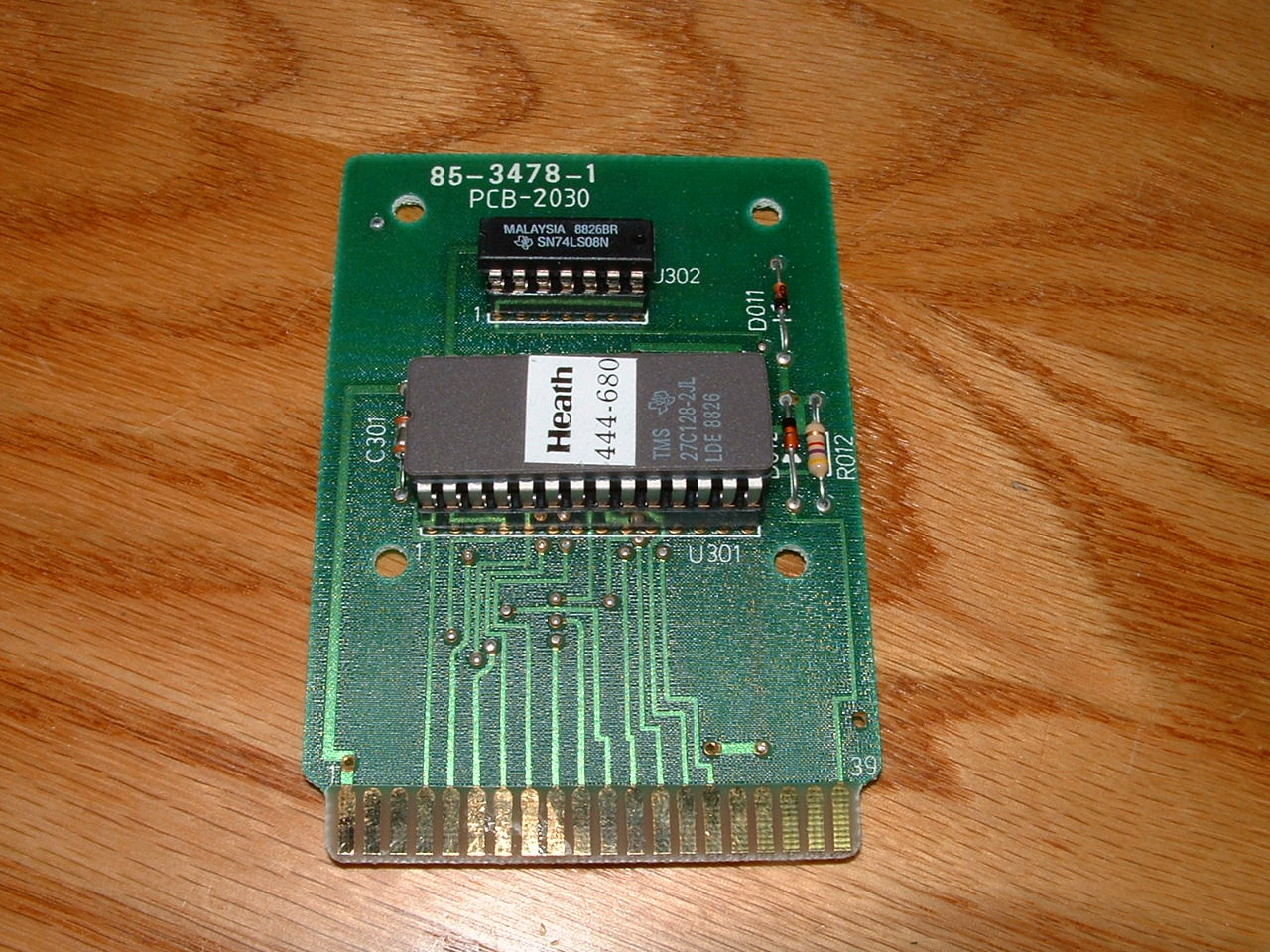

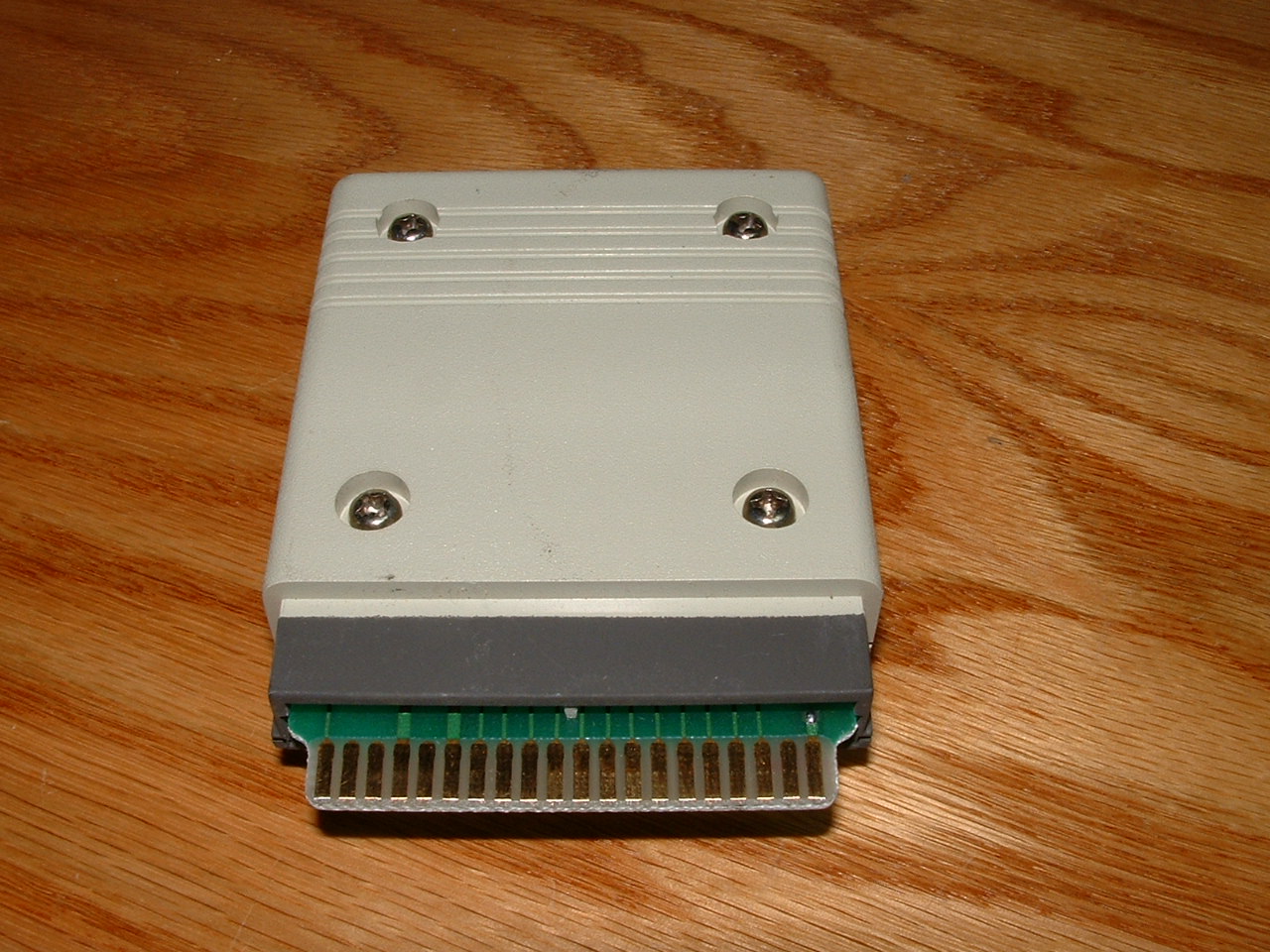

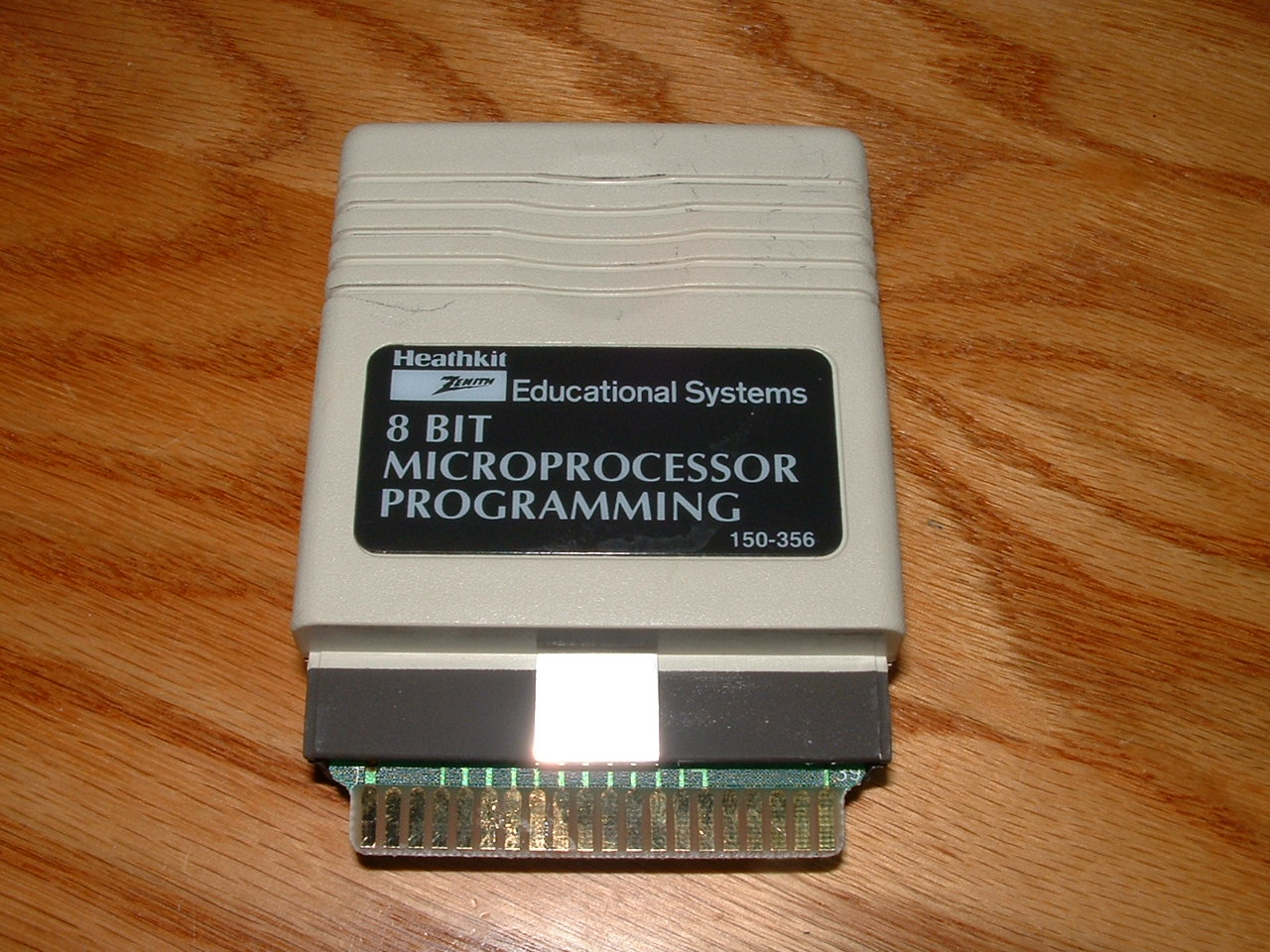

8 Bit Microprocessor programming module

Part number 150-356

It is used with the 6811 microprocessor.

Prom number 444-680.

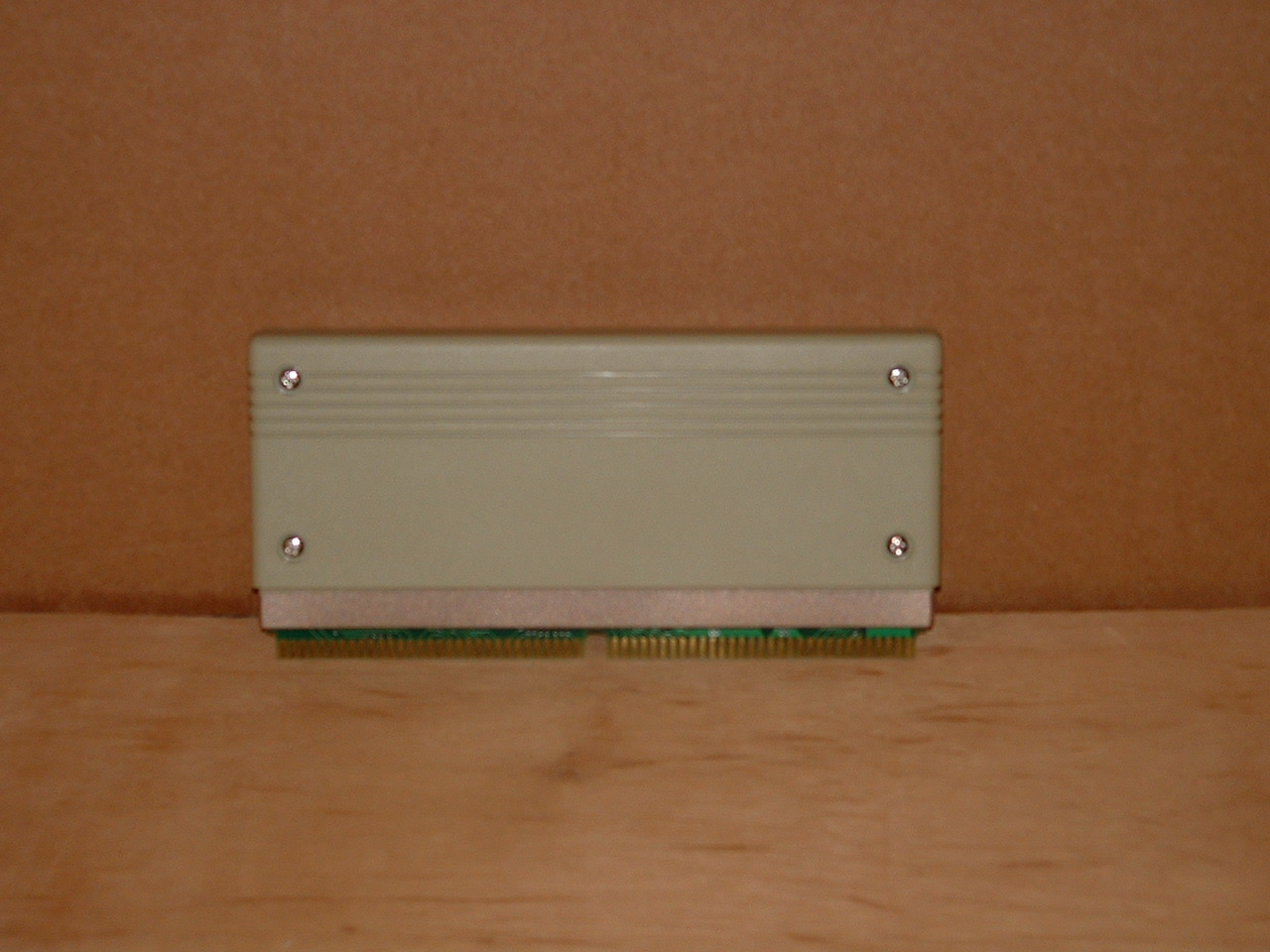

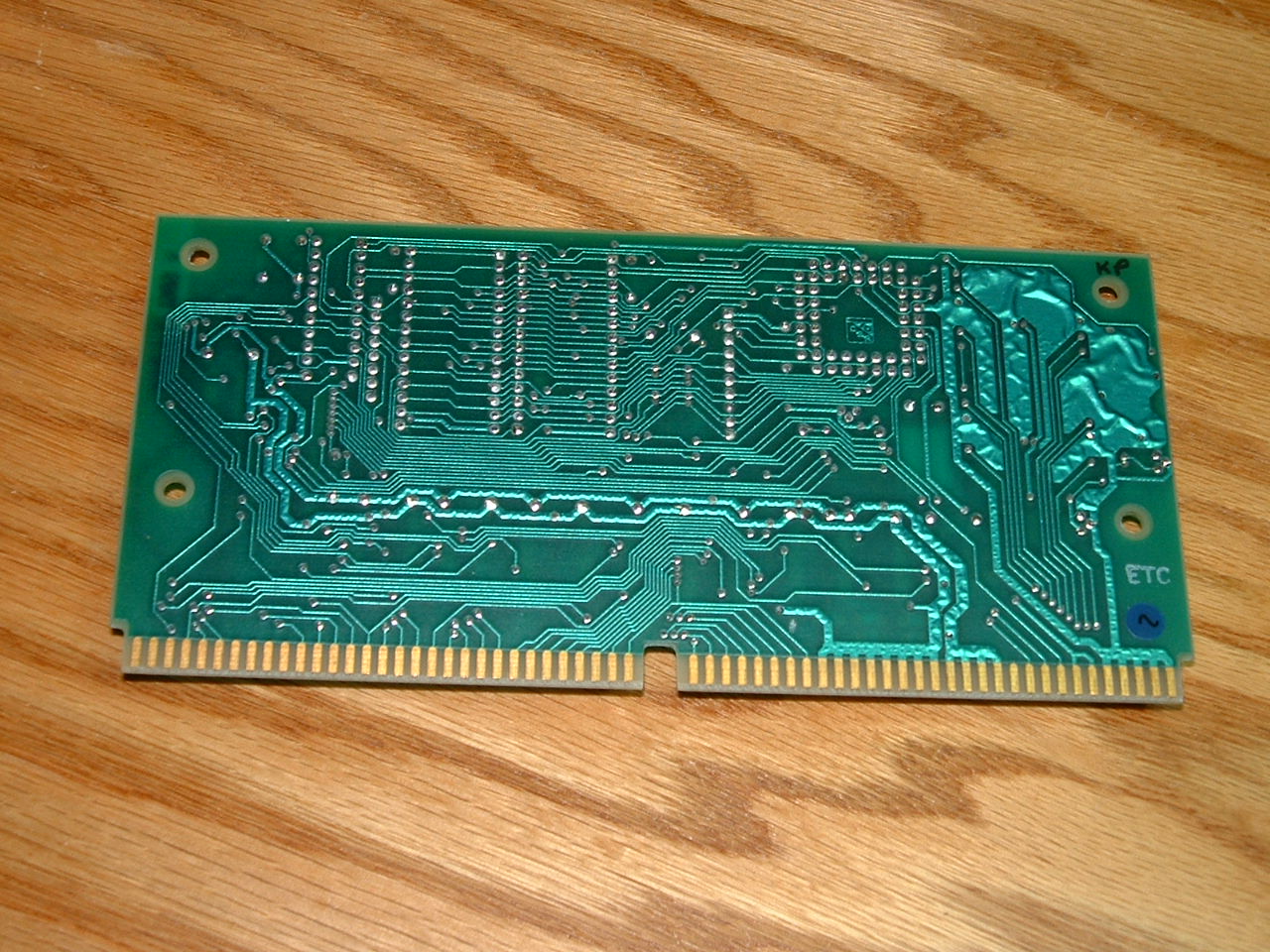

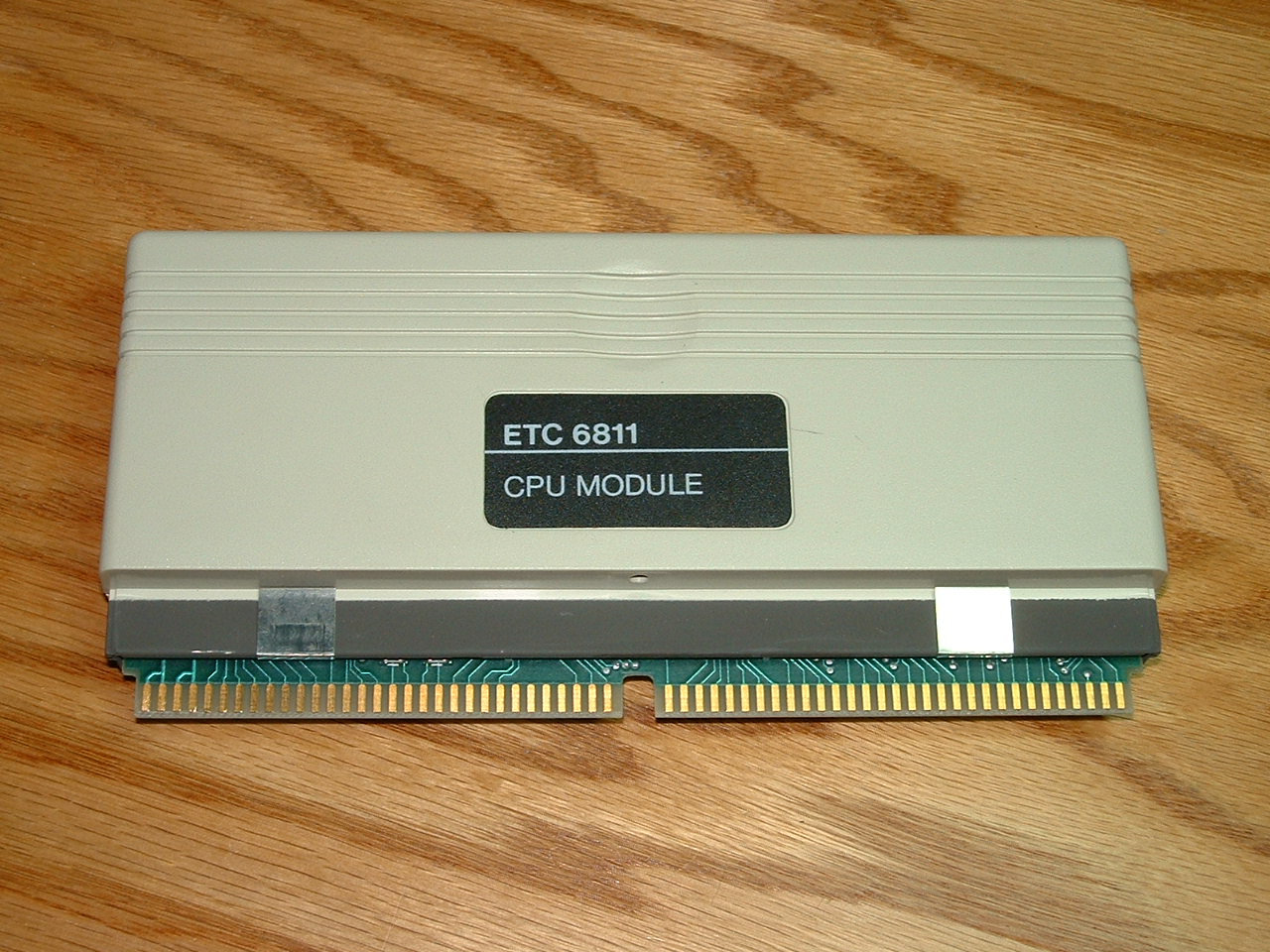

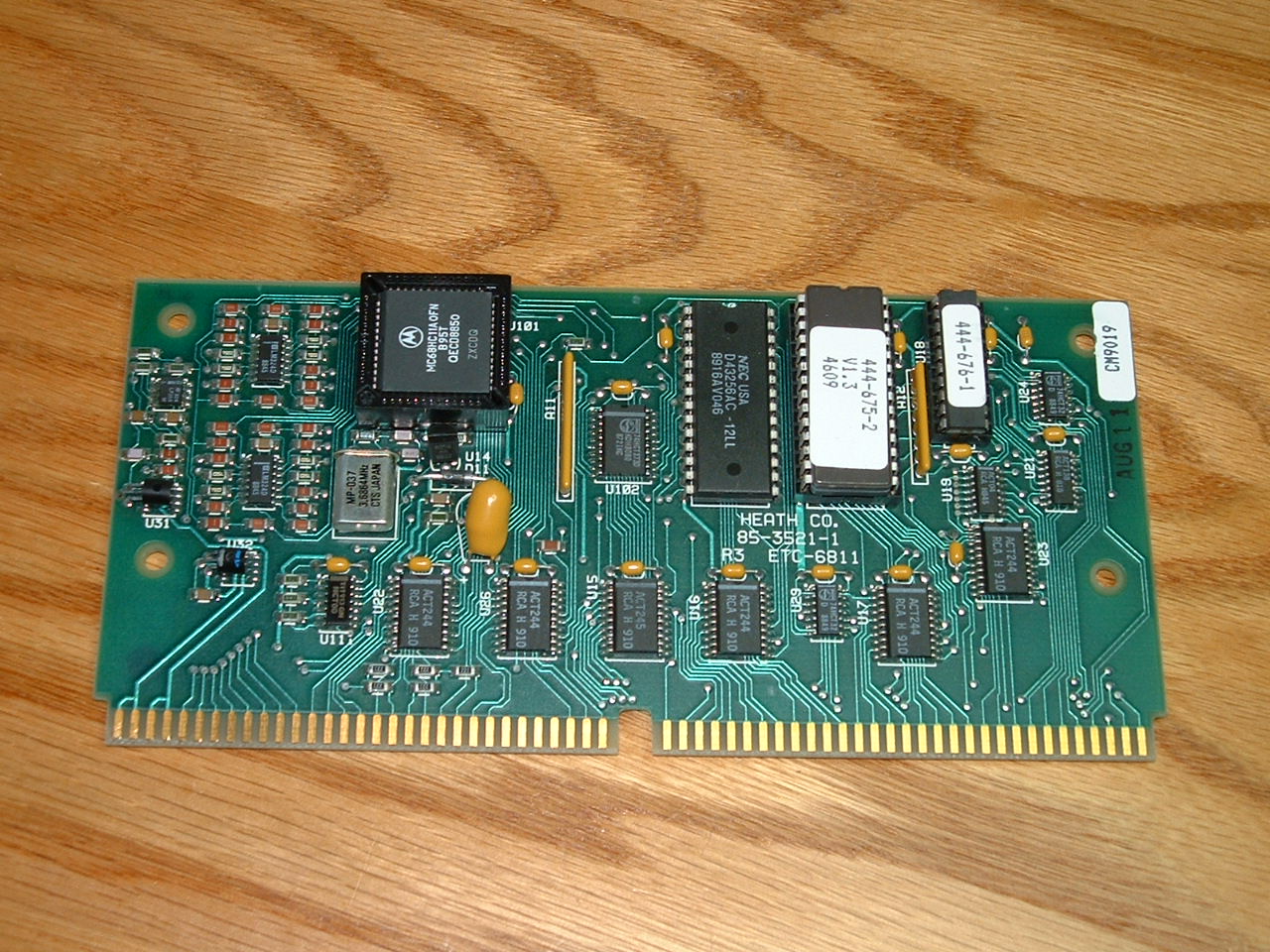

8 Bit Microprocessor module 6811

This module cost $199.95 in the 1993 educational catalog

6811 microprocessor used with module number 150-386 on the ETW-3800 console.

Prom number 444-675-2 V1.3

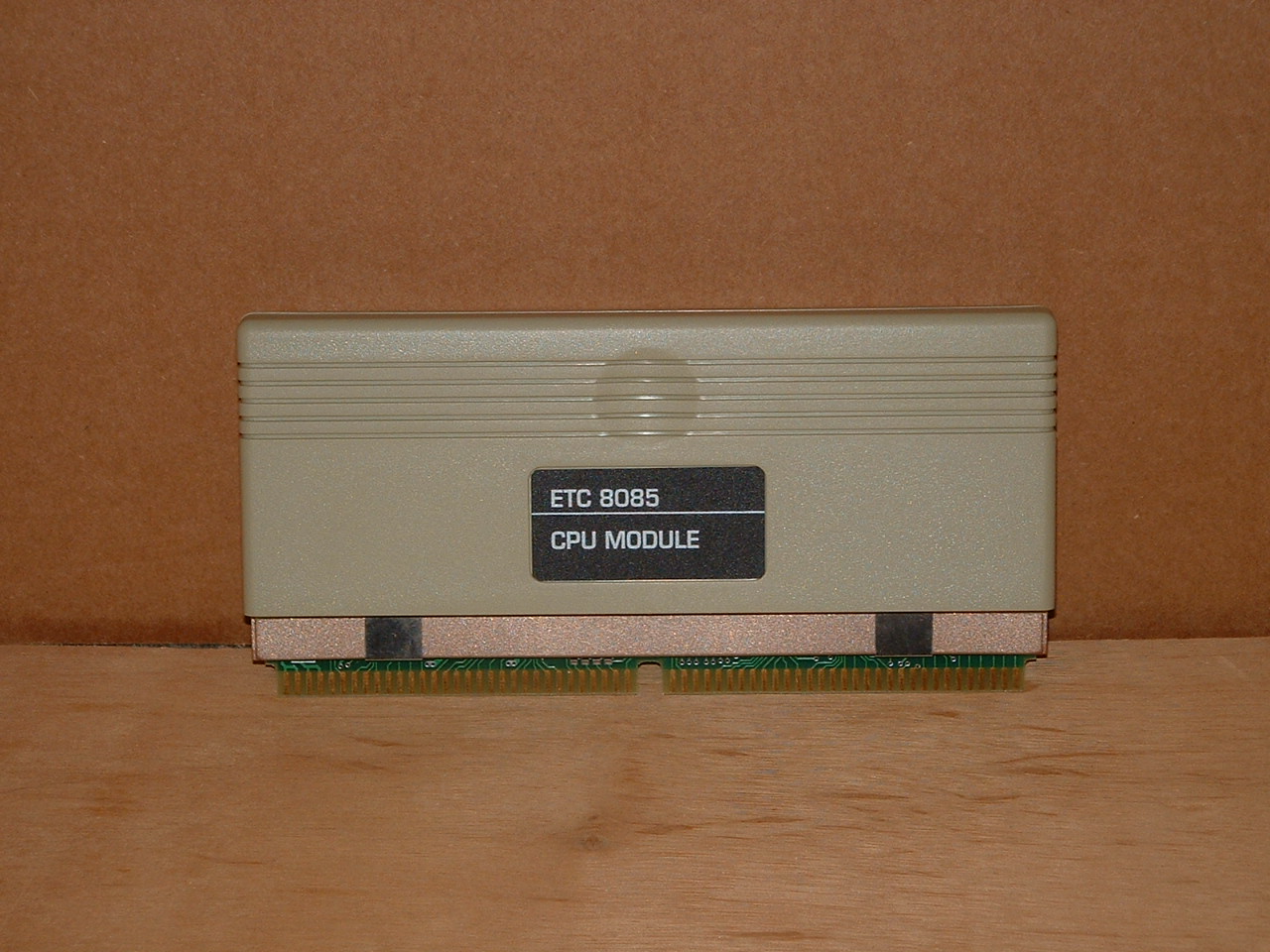

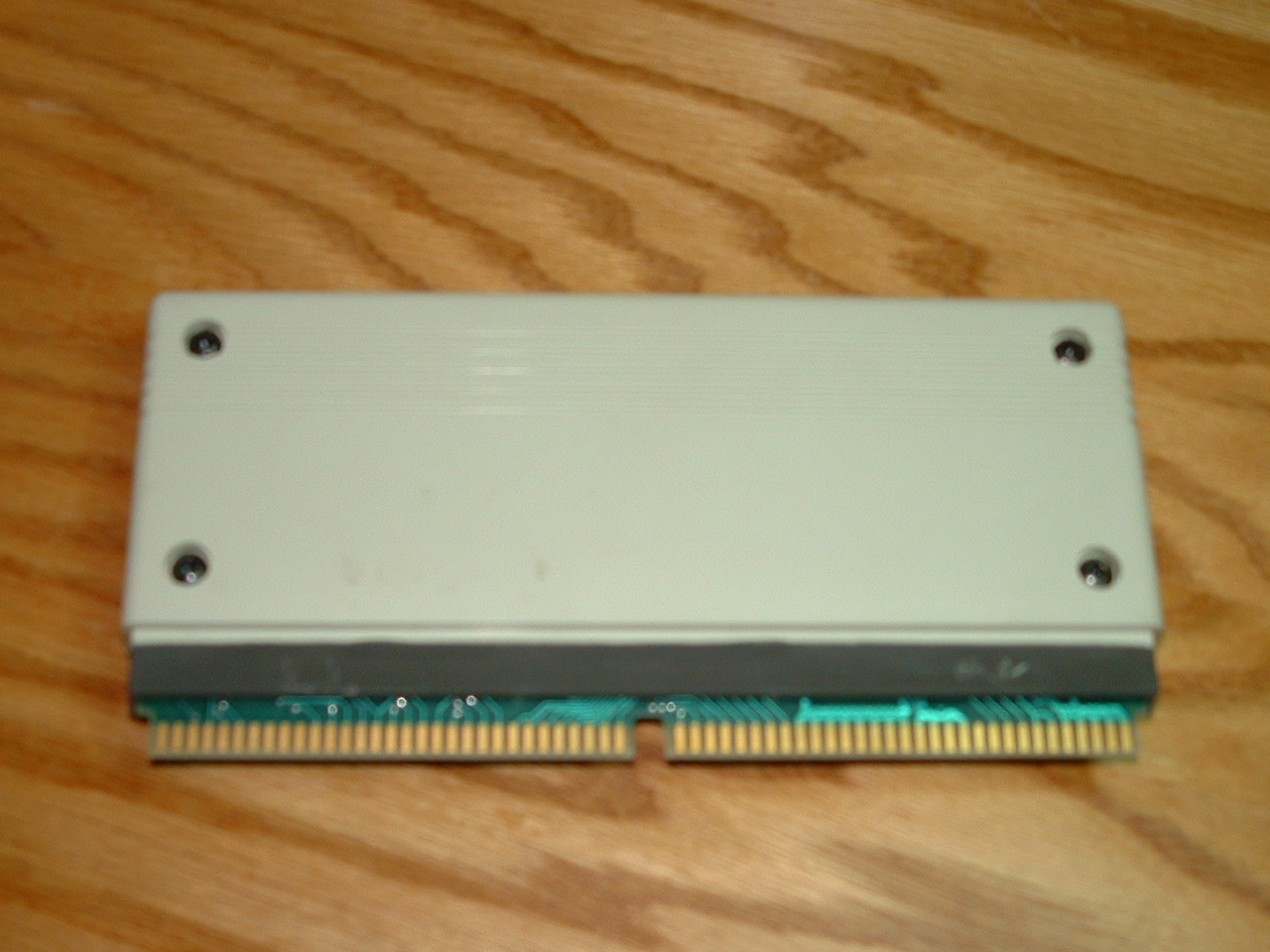

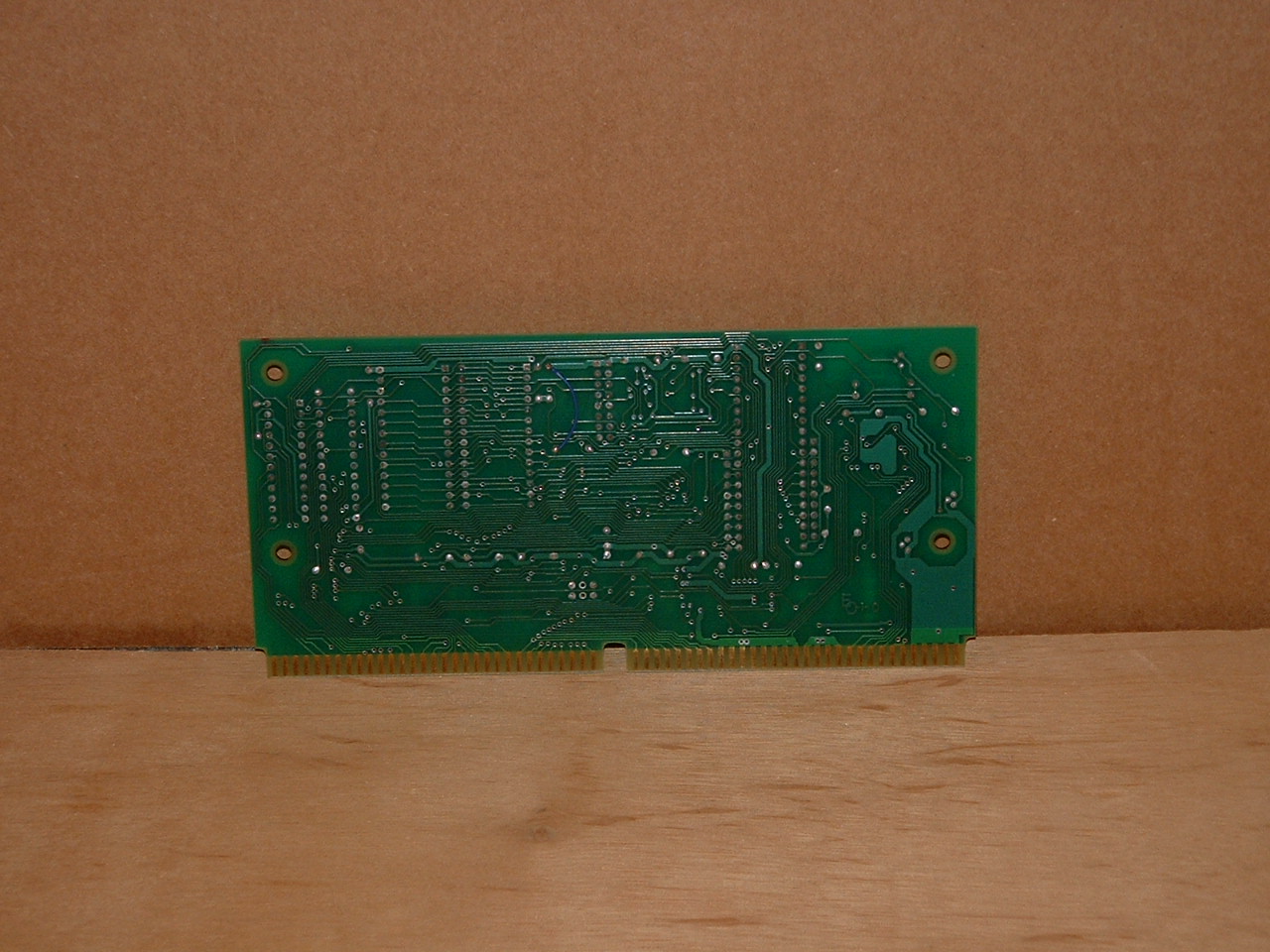

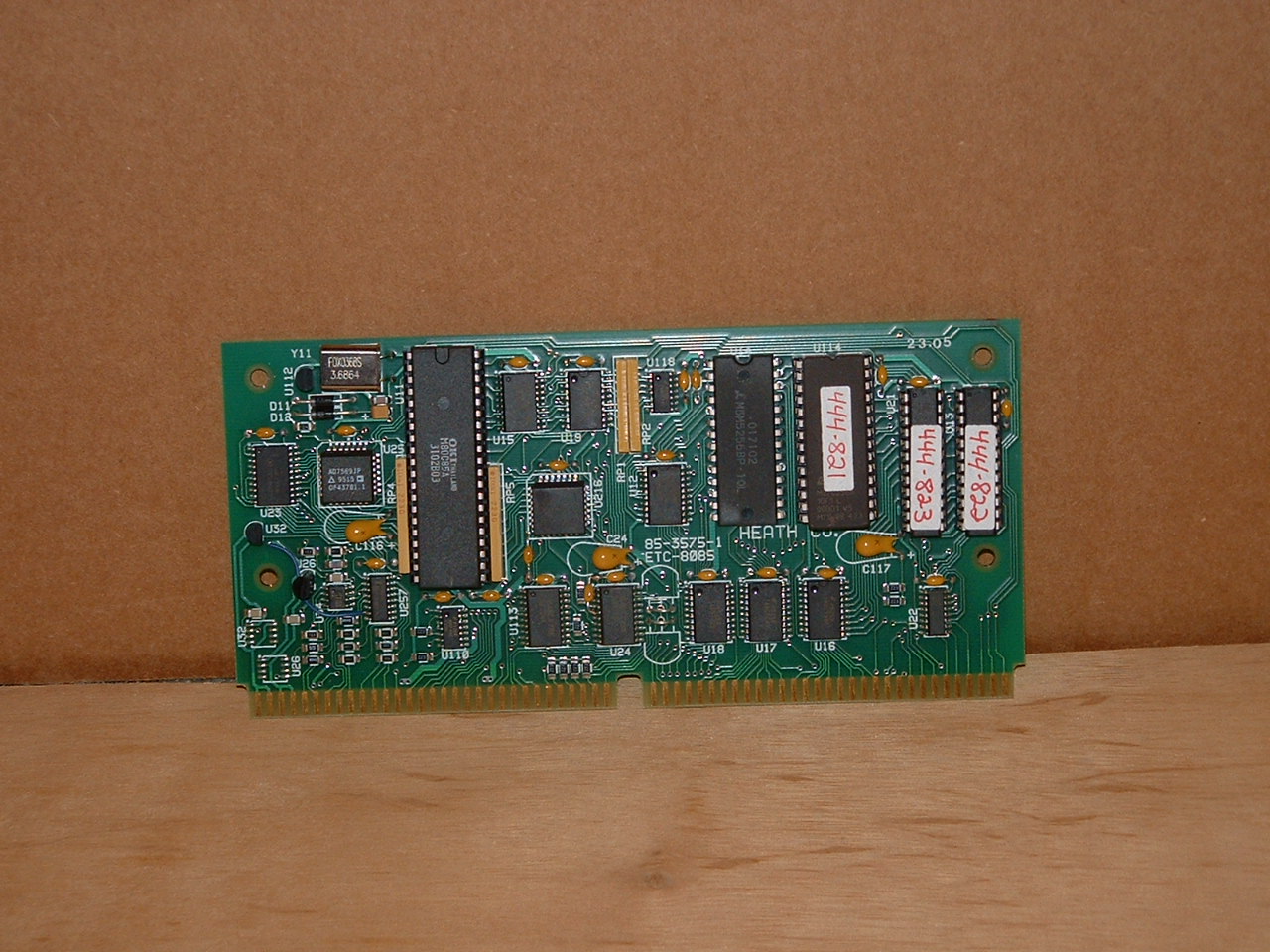

8 Bit Microprocessor module 8085

This module cost $199.95 in the 1993 educational catalog.

8085 microprocessor used with module ETCdsc128 and course ETBdsc8085.
