My  Radio Shack

horizontal rule

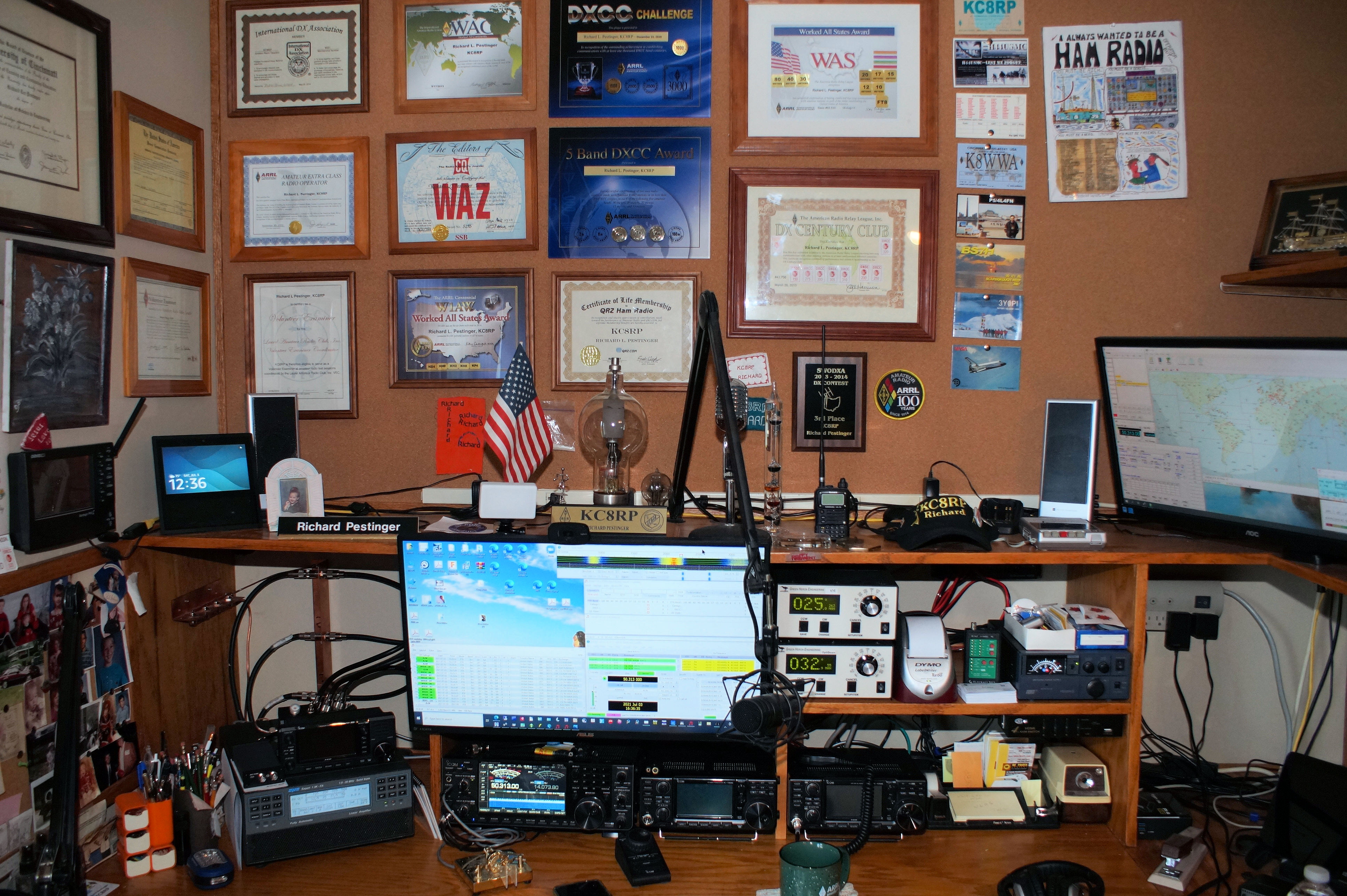

New station as of March 2017

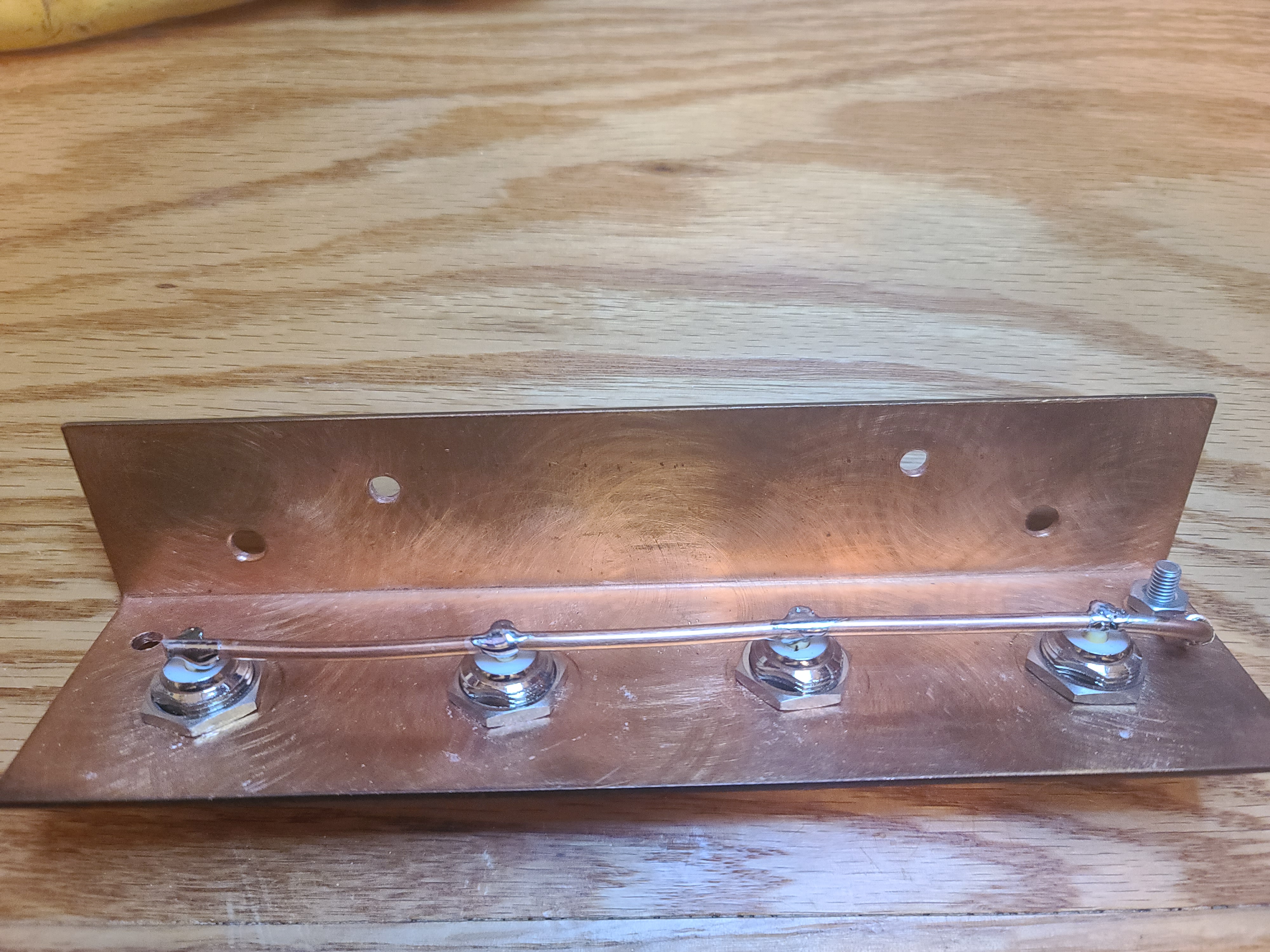

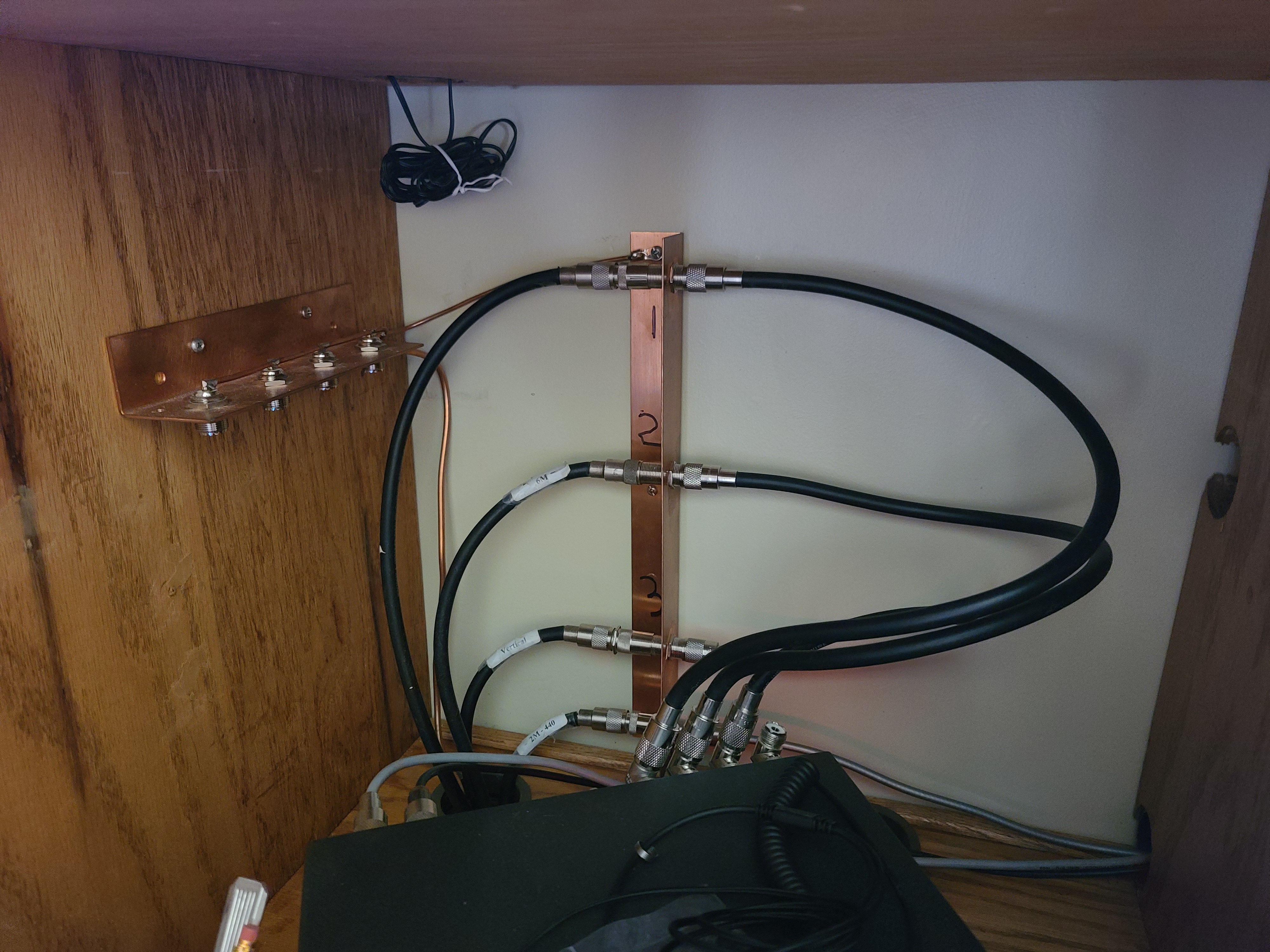

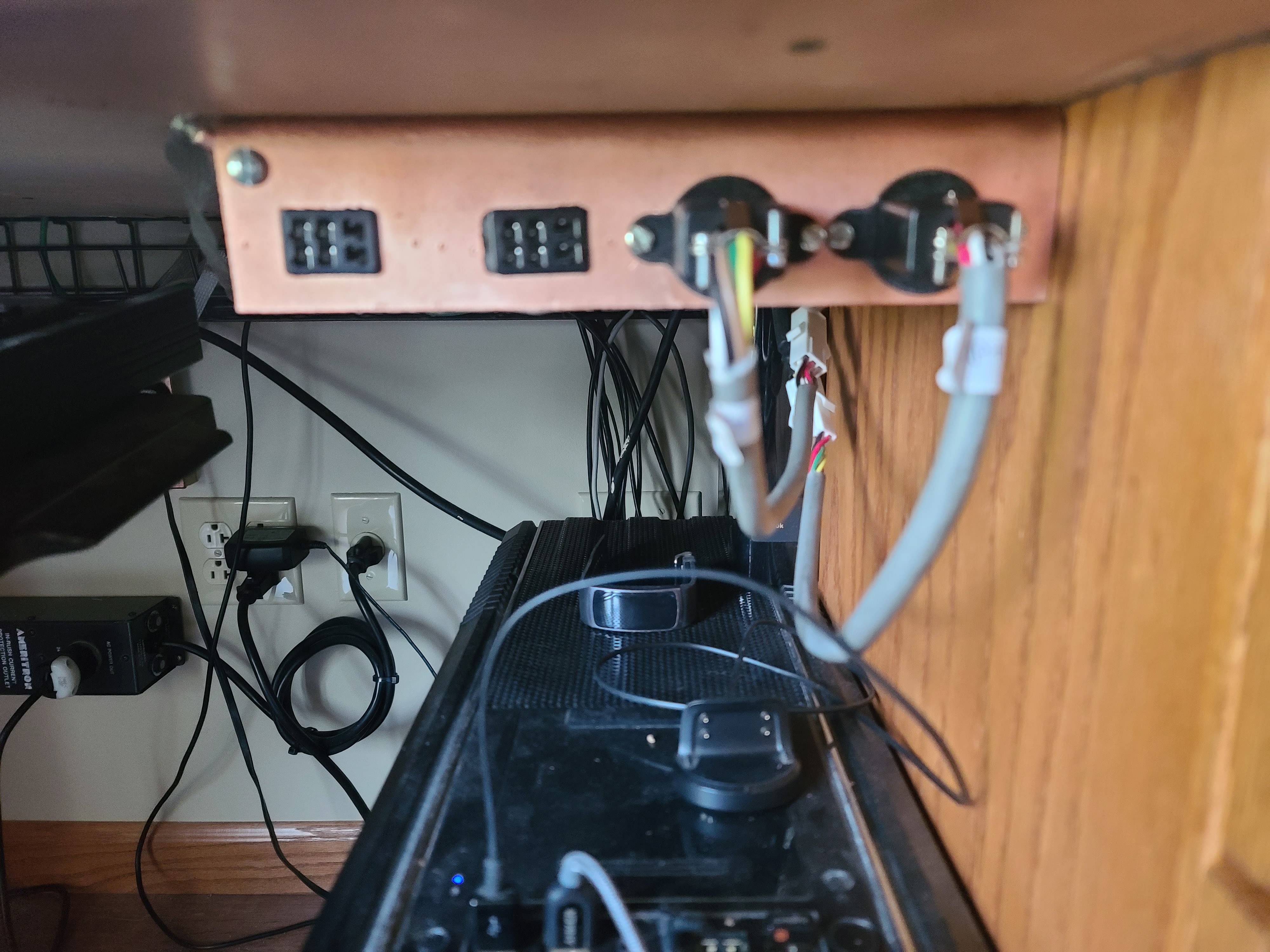

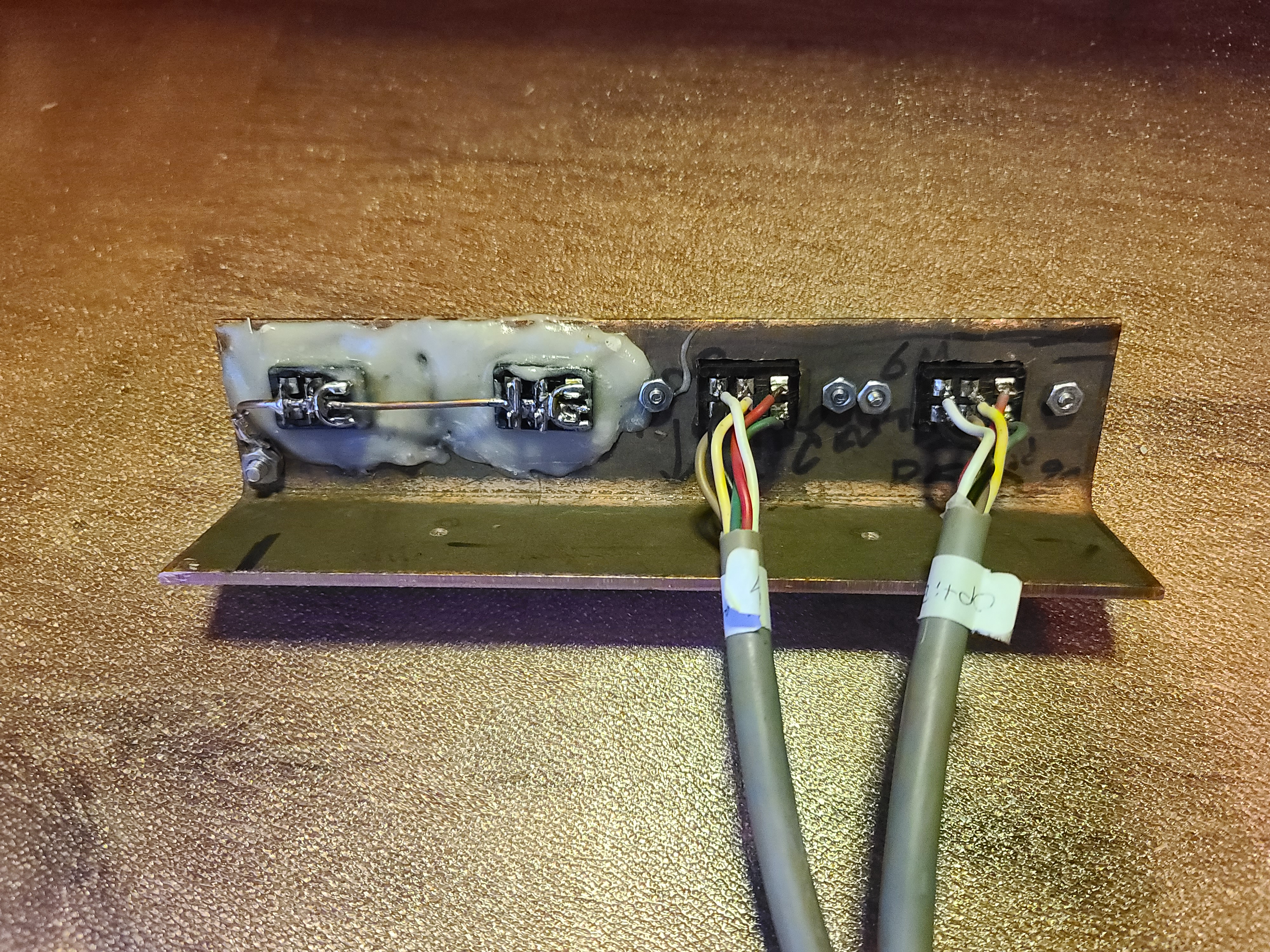

My antenna bulkhead

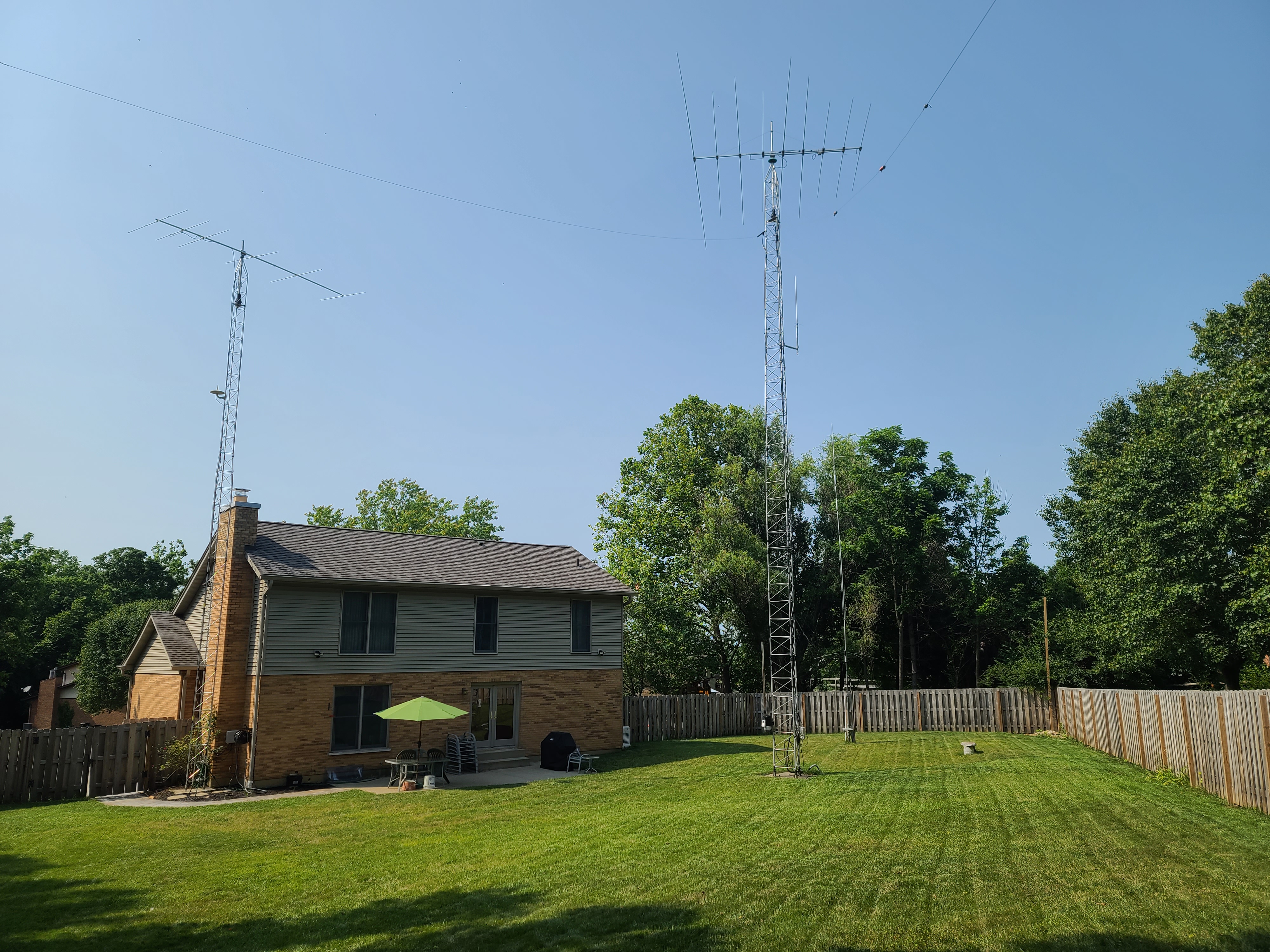

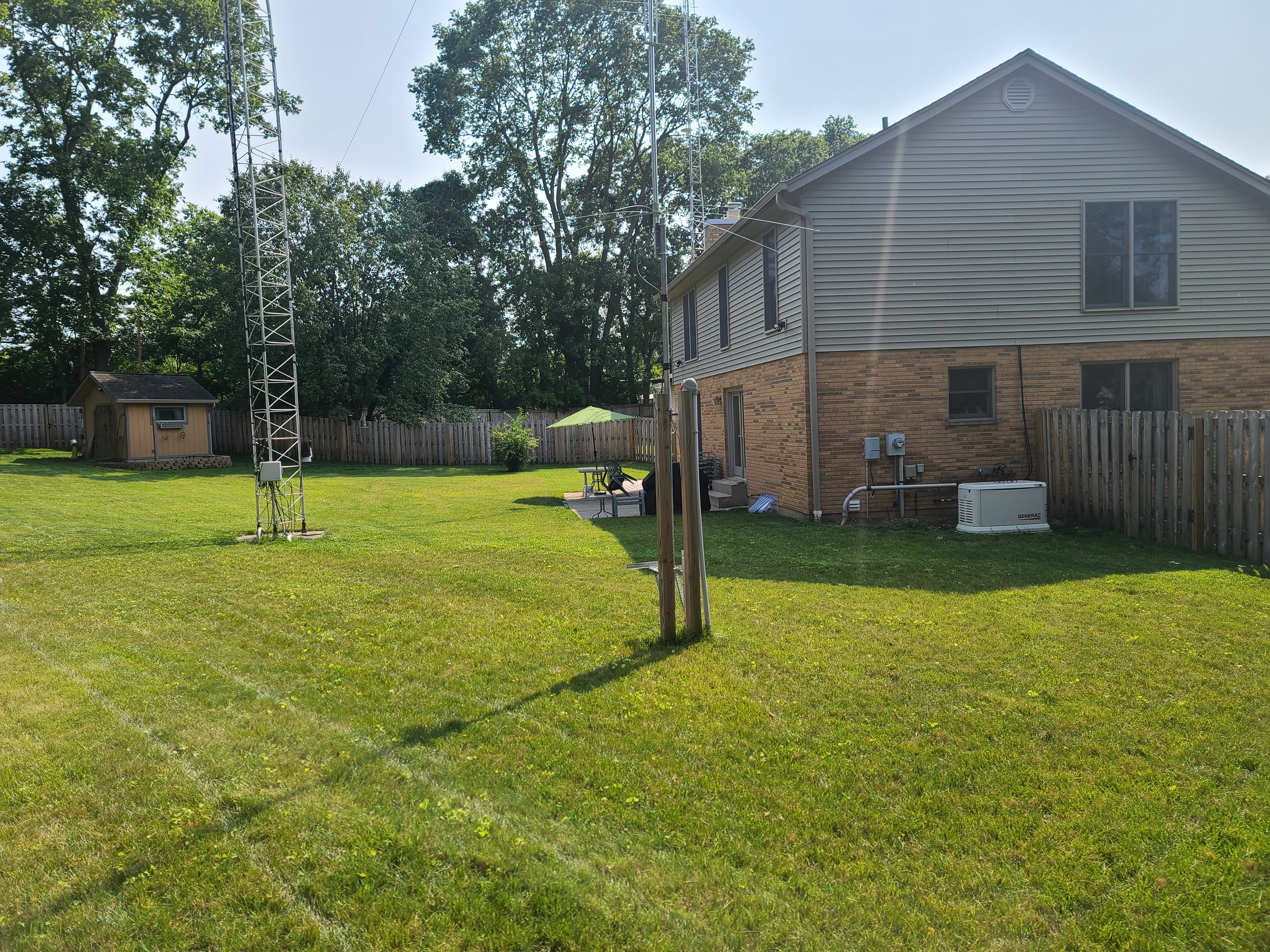

New 40' tower replaced chimney mount for MA5B.

Current view from Google Earth.

A winter morning Jan. 02 2011

A winter morning Jan. 02 2011

A fall morning October 2014

(click to enlarge)

My main radio is an ICOM 7600 connected to a West Mountain Clear Speech digital speaker.  In addition I have the Expert 1.3K-FA 1.3KW  linear amp, Palstar HF-Auto 1500 tuner, microHAM micro Keyer II, MFJ-267 1500 watt dummy load/wattmeter, Bencher iambic keyer & straight key, Heil Goldline GM-4 mike mounted on the shock absorbing boom, Heil Pro set Plus, Heil PTT footswitch, Alinco DM-330MV power supply and PS50SWIII 50 amp switching power supply connected to a MFJ-1126 power distribution strip. Yaesu  G-2800DXA, with a Idiom Press serial controller,  turns a Mosley S-33 yagi with 40, 20 & 17 meters and a Cushcraft A505S 5 element 6 meter beam. These antennas are on a 50' aluminum Universal tower and a 10' aluminum mast. The Yaesu G-800DXA, with MDS RC-1 serial controller, turns a Cushcraft MA5B 20 thru 10 meters beam which includes WARC bands, this is mounted on a 40' aluminum Universal tower. I also have a Hy-Gain AV-680 vertical 80 thru 6 meters . I also have a Yaesu FT-7800 dual band connected to a MFJ-281 clear tone speaker, Yaesu VX-7R three band handheld and a couple of Motorola CB handhelds for non ham use. Most of the antenna switching is done through my Expert amp and Palstar. I also have an Elecraft KX3 with auto tuner, 2M option and roofing filter. Not shown is my Buddipole deluxe I use with the KX3. I also have a Davis weather station with internet link, the anemometer mounted 40' up the tower. Test equipment include a Tektronix 465B oscilloscope with DM 44 multimeter.

I hope to replace the ARRL map on the wall with a flat screen TV approximately 36 to 38 inches. I keep watching for sales and used units. I would like to display my DX Atlas on the large screen as well as watch TV when nothing else is going on.

My 1995 Mazda truck with Radio

(click to enlarge)

My mobile rig is a Yaesu FT-857D feeding a ATAS-120 antenna system. I also have an LDG SWR / Watt meter design to plug into the head of the transceiver, much easier to read at night.


bullet FT-857D Operating manual    4.82 megs
bullet FT-857D_technical_supplement    13.1 megs,/a>
bulletFT-897D brochure    1.74 meg
bullet ATAS-120_installation and operating instructions    109 KB
bullet ATAS-120_technical supplement    428 KB
